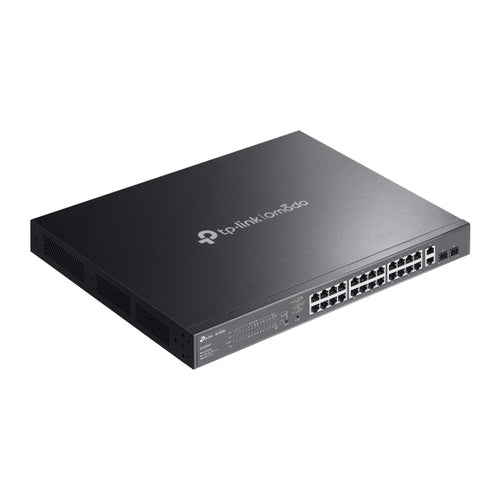

ES228GMP - TP-Link ES228GMP Omada SDN 24 Port Gigabit Smart Switch PoE+

ES228GMP - TP-Link ES228GMP Omada SDN 24 Port Gigabit Smart Switch PoE+

Name: TP-Link ES228GMP - B2B - Networking & Routing | KW Tech NZ
Brand: TP-Link
SKU: ES228GMP
Price: 688.72 NZD
Availability: InStock

SKU: ES228GMP ● In Stock

$688.72

Free shipping over $299 Genuine product 7-day returns

📄 Download Official Datasheet (PDF)

ES228GMP - TP-Link ES228GMP Omada SDN 24 Port Gigabit Smart Switch PoE+

Overview

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
2× Gigabit SFP port
384W Power Budget, with up to 30W for each PoE port
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE, QoS△, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design

Technical Specifications

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
Cloud-managed	Y
Unified static configuration	Y
Basic switching RJ-45 Ethernet ports quantity	26
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	26
SFP module slots quantity	2
Networking standards	IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	N
Copper ethernet cabling technology	10BASE-T,100BASE-X,1000BASE-T,1000BASE-X
Port mirroring	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Auto MDI/MDI-X	Y
Ethernet LAN data rates	10,100,1000
Fast leave	Y
VLAN support	Y
Virtual LAN features	MTU VLAN,Port-based VLAN,Tagged VLAN
Number of VLANs	32
Switching capacity	56
Forwarding rate	41.66
MAC address table	8000
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	15000
Packet buffer memory	4
DHCP features	DHCP client
IGMP snooping	Y
Queue scheduling algorithms	Weighted Round Robin (WRR)
Multicast support	Y
Rack mounting	Y
Product colour	Black
Housing material	Metal
LED indicators	Y
Number of fans	2
Flash memory	64
Noise level	46.2
Firmware upgradeable	Y
Fanless	N
Mean time between failures (MTBF)	224143
Power source	AC
Power supply included	Y
AC input voltage	100 - 240
AC input frequency	50/60
Power consumption (max)	454.8
Surge protection	Y
Surge protection voltage	6
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30
Total Power over Ethernet (PoE) budget	384
Operating temperature (T-T)	-5 - 45
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Heat dissipation	1546.15
Width	440
Depth	330
Height	44
Cables included	AC
Quick start guide	Y
Manual	Y
Rack mount kit	Y
Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
Certification	FCC, CE, RoHS
