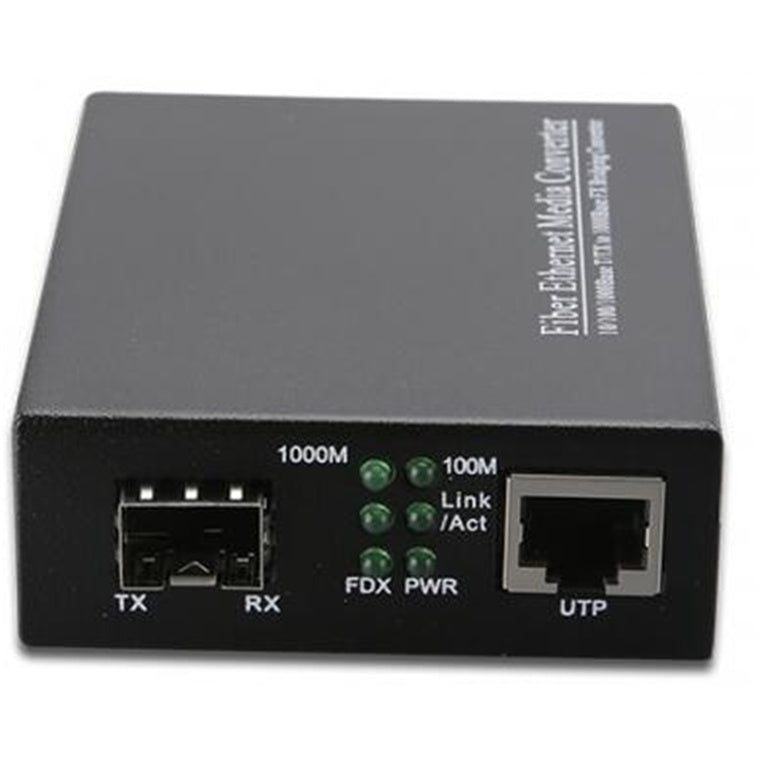

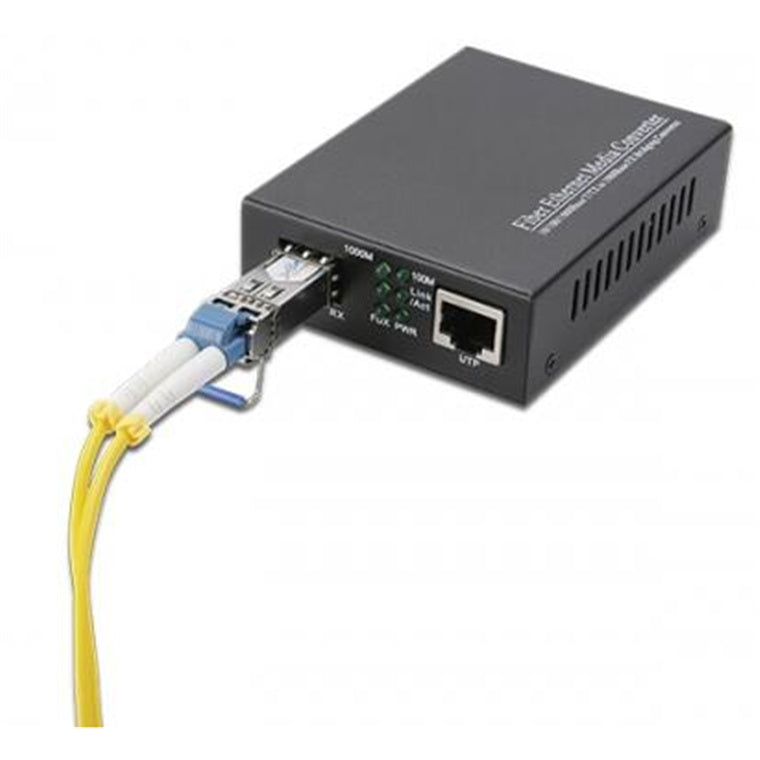

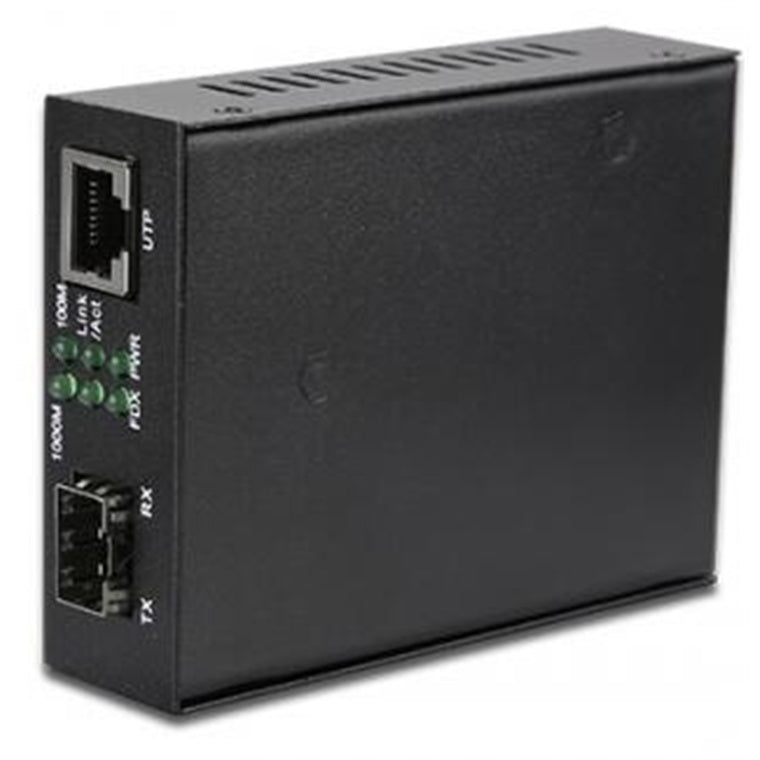

ETU-LINK EM-1100-SSXX - Gigabit 10/100/1000BASE-T to SFP Converter

Features

This ETU-Link Gigabit Ethernet SFP fiber media converter bridges the gap between copper and fiber infrastructures.

SFP fiber media converters are designed for maximum convenience for fiber to copper Ethernet conversion applications which require flexibility in transmission rates, working distances, and fiber network types which can be realized by simply changing the hot-plug-and-play SFP.

- High flexibility with hot plug-and-play SFP
- 1600byte super data packet transmission
- Full duplex-flow control, Half duplex-back pressure
- Link fault pass through (LFPT)
- Full- positioned LEDs to indicate power and network status

Specifications

Technical Specifications

Standards	IEE802.3z 1000BASE- -SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/100/1000BASE-T	STP or UTP Category 5/5e/6 cable (Max. 100m)
SFP	SX, LX, EX, ZX, EZX, and Bi-Di optical transceivers are available
Conversion Mode / Delay	Time Store-and-Forward < 10us, straight-through<0.9us
Flow control	Full duplex-flow control, Half duplex-back pressure
RJ-45 Port	Auto-MDI/MDIX
Dimensions	70mm(W) x 93mm(D) x 25mm(H)
Weight	Net weight : 0.16kg; Gross weight : 0.42kg
Input Voltage	DC 5V, 1A with External power adapter
Power Consumption	<2.5W
MTBF	50,000 hours BER <1/1000000000
MAC Address Table	1K
Buffer Size	1M
Operating Temperature	0°C~50°C
Storage Temperature	-40°C~70°C
Storage Humidity	5%~90% non-condescending
