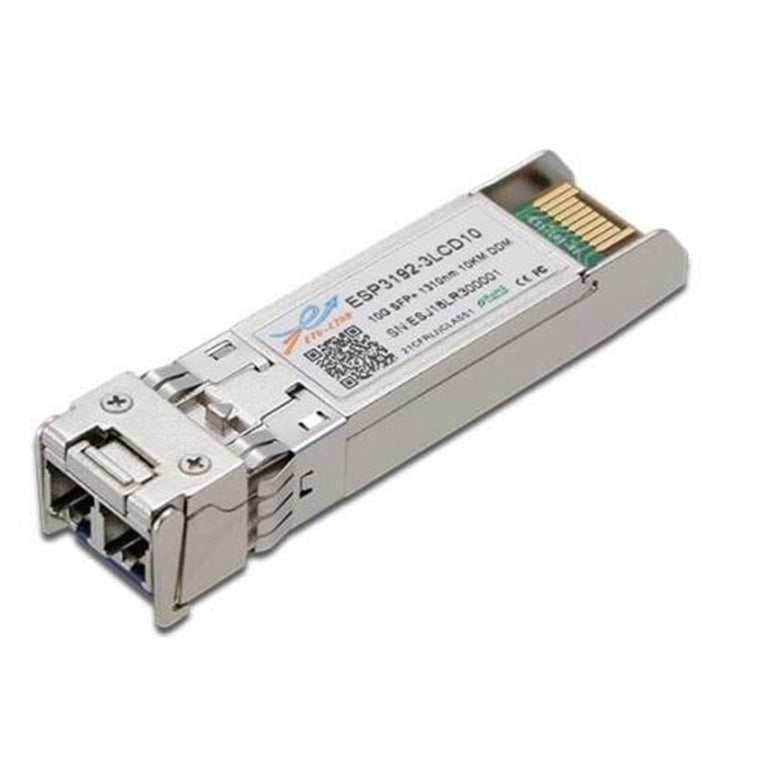

ETU-LINK ES31X-3LCD10 - 10 GbE  1310nm singlemode SFP+ Optical Transceiver 10km reach

10Gbps 1310nm 10km SFP+ Optical Transceiver

This 1310 nm DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km.

The SFP+ 10km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mmof standard FR4 with one connector.

- Optical interface compliant to IEEE 802.3ae 10GBASE-LR
- Electrical interface compliant to SFF-8431
- Hot Pluggable
- 1310nm DFB transmitter, PIN photo-detector
- Operating case temperature: 0 to 70 °C
- Low power consumption
- Applicable for 10km SMF connection
- All-metal housing for superior EMI performance
- Advanced firmware allow customer system encryption information to be stored in transceiver
- Cost effective SFP+ solution, enables higher port densities and greater bandwidth
- RoHS6 compliant (lead free)

Applications

- 10GBASE-LR
- Other optical links

Standard

- Compliant with SFF-8472.
- Compliant with SFF-8431 and SFF-8432.
- Compliant with IEEE802.3ae 10GBASE-LR
- RoHS Compliant
