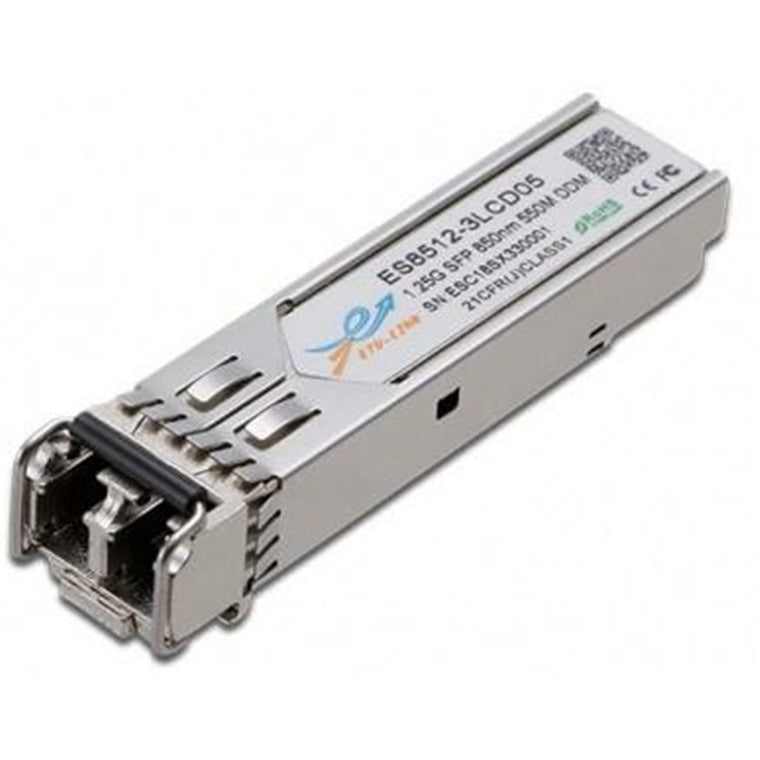

ETU-LINK ES8512-3LCD05 - Gigabit SFP module 850nm Multi-mode 550M range LC connector
ETU-LINK ES8512-3LCD05 - Gigabit SFP module 850nm Multi-mode 550M range LC connector
ETU-LINK ES8512-3LCD05 - Gigabit SFP module 850nm Multi-mode 550M range LC connector
ETU-LINK

ETU-LINK ES8512-3LCD05 - Gigabit SFP module 850nm Multi-mode 550M range LC connector

SKU: ES8512-3LCD05 ● In Stock
$24.75
Free shipping over $299 Genuine product 7-day returns

ETU-LINK ES8512-3LCD05 - Gigabit SFP module 850nm Multi-mode 550M range LC connector

Features

1.25Gbps SFP module, 850nm Multi-mode, 550M range, LC connector, DDM compatible.

Works with Ubiquiti, Edge-Core, NETGEAR, D-Link, Mikrotik, TP-Link, LevelOne, ZyXEL, etc.

- Up to 1. 25Gb/s Data Links
- Hot-pluggable SFP footprint
- 850nm Vcsel laser transmitte
- Duplex LC connector
- Low power dissipation
- Metal enclosure, for lower EMI
- Single 3.3V power supply
- Operating temperature range: 0°C to 70°C
- Digital Diagnostic Monitoring Optional

Applications

- 1.0625Gb/s Fibre Channel
- 1.25Gb/s Gigabit Ethernet

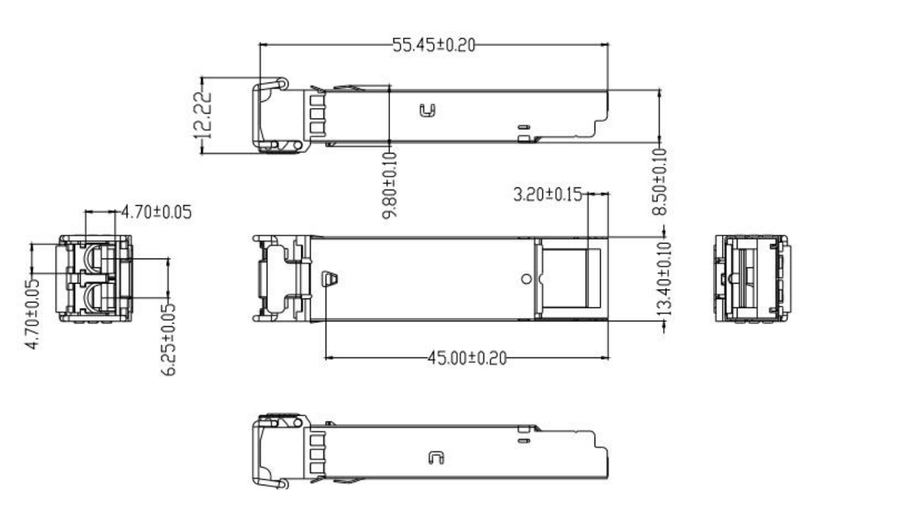

Mechanical Specification

Specifications

Technical Specifications

MPN ES8512-3LCD05
Product Type Transceiver
Data Rate 1.25G
Wave Length 850nm
Distance 550M
Connector LC
Fiber Multi-mode
DDM Yes
Hot Pluggable Yes
Operating Case Temperature 0 to 70 °C
Enclosure Metal
