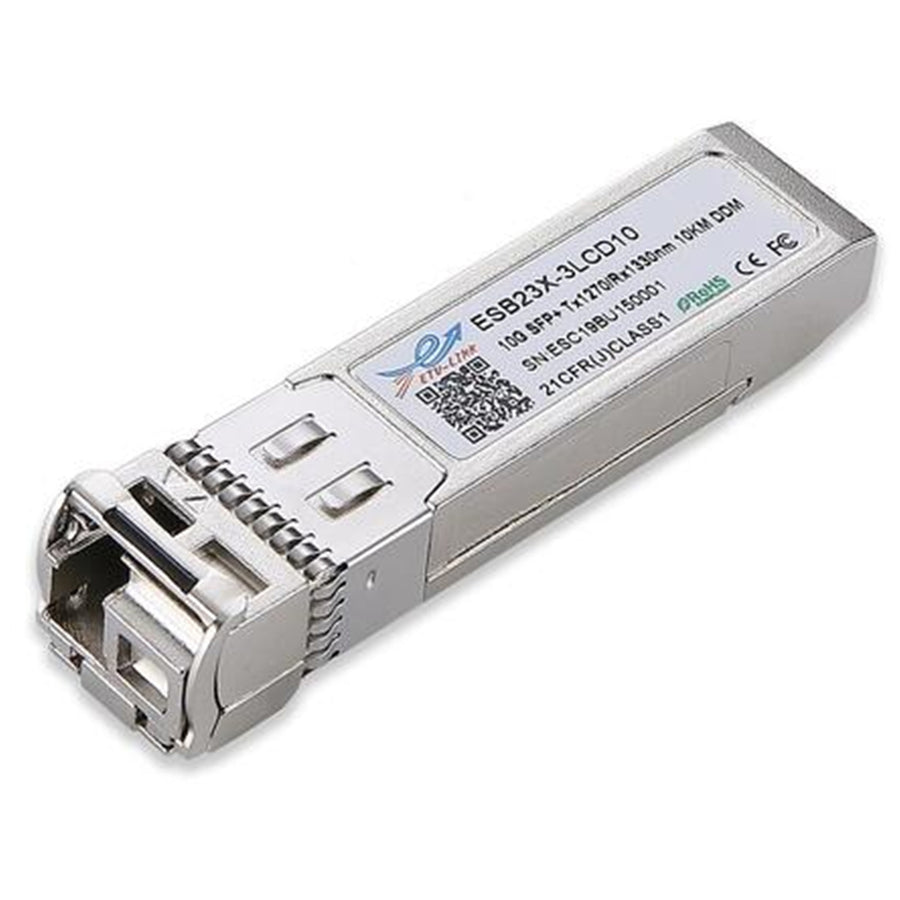

ETU-LINK ESB32X-3LCD10 - 10 GbE  Bi-Directional Single-mode SFP+ Module 10km Range 1330/1270

ETU-LINK's ESBxxX-3LCD10 optical transceivers with CDR are designed for 10Gb/s optical interfaces for telecommunication and data communication with single mode fiber (SMF).This transceiver can support 9.953-11.1Gb/s

- SFP MSA package with Single LC connector
- Very low EMI and excellent ESD protection
- Digital Diagnostic Monitor Interface
- Hot pluggable
- 10Gb/s serial optical interface
- Up to 10km distance
- Compliant with SFP+ MSA
- High transmission margin
- +3.3V single power supply
- Below 0.8W power consumption
- SFP mechanical interface
- Standard
- SFP+ MSA Compliant
- SFF-8472 reversion 9.5 compliant
- IEEE802.3-2005 compliant
- Telcordia GR-468-CORE compliant
- FCC 47 CFR Part 15,Class B compliant
- FDA 21 CFR 1040.10 and 1040.11,class1 compliant
- RoHS compliant

Pair this with ESB23X-3LCD10 for single-mode bi-directional connection on the same fibre core.

The ESB32X-3LCD10 transmits at 1330nm and receives at 1270nm
The ESB23X-3LCD10 transmits at 1270nm and receives at 1330nm
-on the same fiber core

Applications

- 10G Base-ER/EW
- 10G Fiber Channel
