EXSFP1GELXST - STARTECH.COM GIGABIT FIBER SFP - JUNIPER EX-SFP-1GE-LX COMPATIBLE - SM LC, LTW
EXSFP1GELXST - STARTECH.COM GIGABIT FIBER SFP - JUNIPER EX-SFP-1GE-LX COMPATIBLE - SM LC, LTW
Overview
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

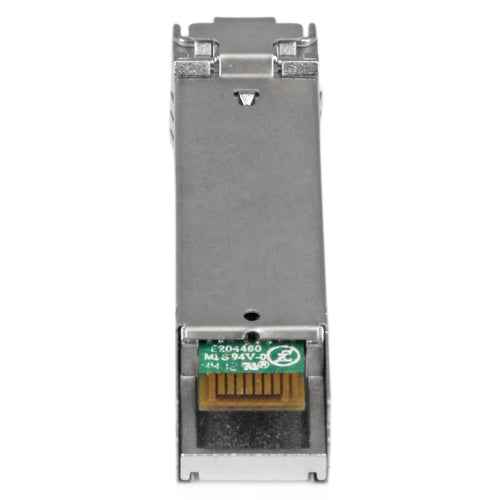

The EXSFP1GELXST is a Juniper EX-SFP-1GE-LX compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper® brand switches and routers. It delivers dependable 1GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
- 100% JUNIPER EX-SFP-1GE-LX COMPATIBLE SFP TRANSCEIVER: Designed, programmed and tested to work with compatible Juniper switches and routers to deliver reliable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-LX / 1Gbps / Single Mode (SMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Juniper routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Technical Specifications
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1250 |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Y |
| Multi-mode fiber (MMF) supported | N |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 |
| Wavelength | 1310 |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Y |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Y |
| Mean time between failures (MTBF) | 3092408 |
| Power consumption (typical) | 1 |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR, REACH |
| Operating temperature (T-T) | 0 - 70 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 5 - 95 |
| Width | 13.7 |
| Depth | 56.6 |
| Height | 13 |
| Weight | 19 |
| Package width | 93 |
| Package depth | 116 |
| Package height | 33 |
| Package weight | 48 |
| Master (outer) case width | 325 |
| Master (outer) case length | 405 |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 315 |
| Products per master (outer) case | 78 |
| Country of origin | China |
