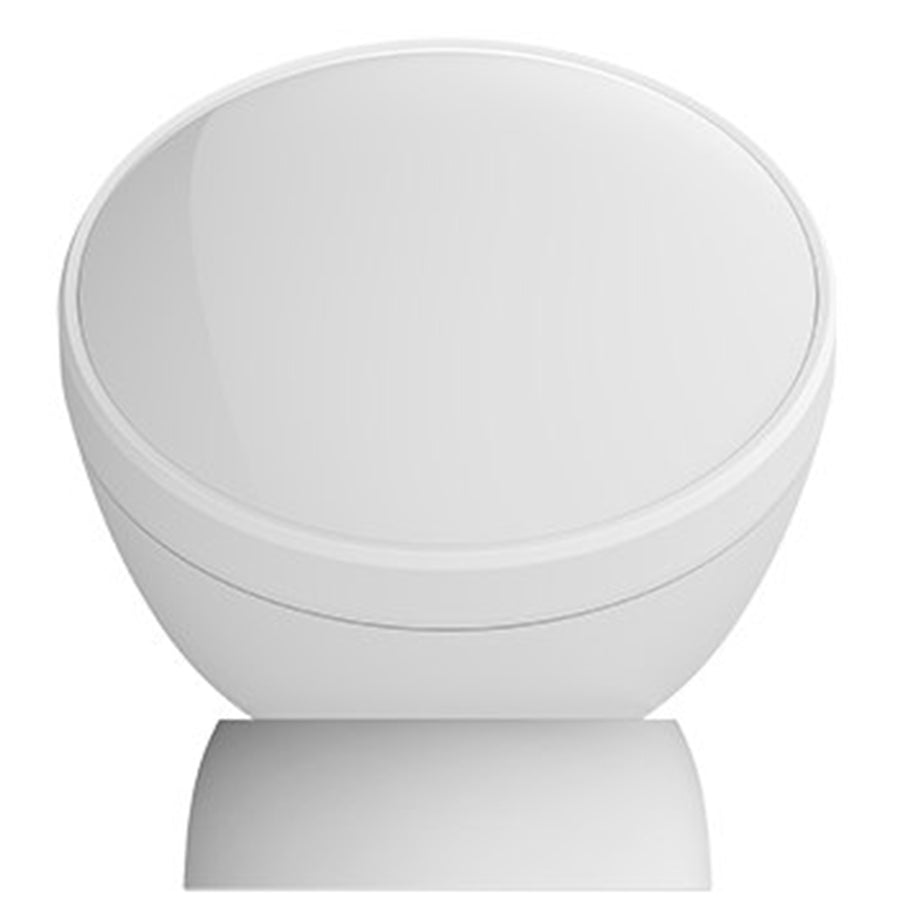

EZVIZ T1C PIR Motion Sensor Wide-Angle Detection / Required to work with Ezviz Gateway
Features
Know when there's activity at home
Get notified immediately when someone sets foot in your room. EZVIZ's new T1C motion sensor uses passive infrared (PIR) technology to detect human movement, and can send alerts right to your smartphone. The T1C Sensor connects to your EZVIZ Home Gateway, and is mini-sized to fit onto any wall or corner for an easy DIY security solution.

It goes anywhere to cover every corner
Install the PIR sensor anywhere you need protection and rotate it a full 360 degrees to find the best detection angle. You can also fine-tune its detection coverage using the pet shield to partially cover the sensor, so it only alerts about human activities, rather than every time your pet runs through the room.

Easy integration with your smart home
Connect your sensor to the Home Gateway and link it with your EZVIZ cameras² for enhanced protection - all via the EZVIZ App. If you use a local storage card or have subscribed to EZVIZ CloudPlay, the camera can begin auto-recording for 5 seconds whenever the sensor detects an activity³.

A product that you can set and forget
The peel-and-stick installation makes it easy for you to find the best setup for your home. The included battery in the sensor can provide up to 2 years of power when the energy-saving mode is enabled.

Anti-tamper alarm for added protection
For extra peace-of-mind, the sensor alerts you immediately when anyone forcibly removes its cover.

Expand your EZVIZ alarm system
The PIR sensor can be conveniently added to your EZVIZ alarm system for expanded protection. You will be notified of any detected activity, all through the EZVIZ App.

Specifications
Technical Specifications
| Operation Conditions | -10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing) |
|---|---|
| Dimensions | Main body: F 43.5 × 32.0 mm (1.7 × 1.3 inch) Base: F 29.0 × 9.5 mm (1.1 × 0.4 inch) |
| Package Size | 92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch) |
| Weight | 92 g (3.2 oz) with package |
| Detection Type | Passive infrared (PIR) |
| Detection Distance | Up to 7 m / 23 ft |
| Detection Angle | 90° horizontal, 90° vertical |
| Recommended Installation Height | 1.8 to 2.5 m for wall-mounted installation |
| Pet-Proof Detection | Requires using the pet shield and an installation height of 50 cm or higher above the pet |
| Low Battery Reminder | Supports |
| Anti-Tamper Alarm | Supports |
| Installation Methods | Adhesive back with magnetic parts. Supports wall and ceiling flip-over installation |
| Battery Type | Cell battery CR2450 |
| Battery Life | High-performance mode: Up to 1 year Energy-saving mode: Up to 2 years |
| Protocol | ZigBee 3.0 |
| Communication Distance | < 200 m (Tested in open environment) |
| In the box | - T1C PIR Sensor- Pet Shield- Doubled-sided Tape- Regulatory Information- Quick Start Guide |
| Brand | EZVIZ |
|---|---|
| Product Type | Smart Home & Security |
