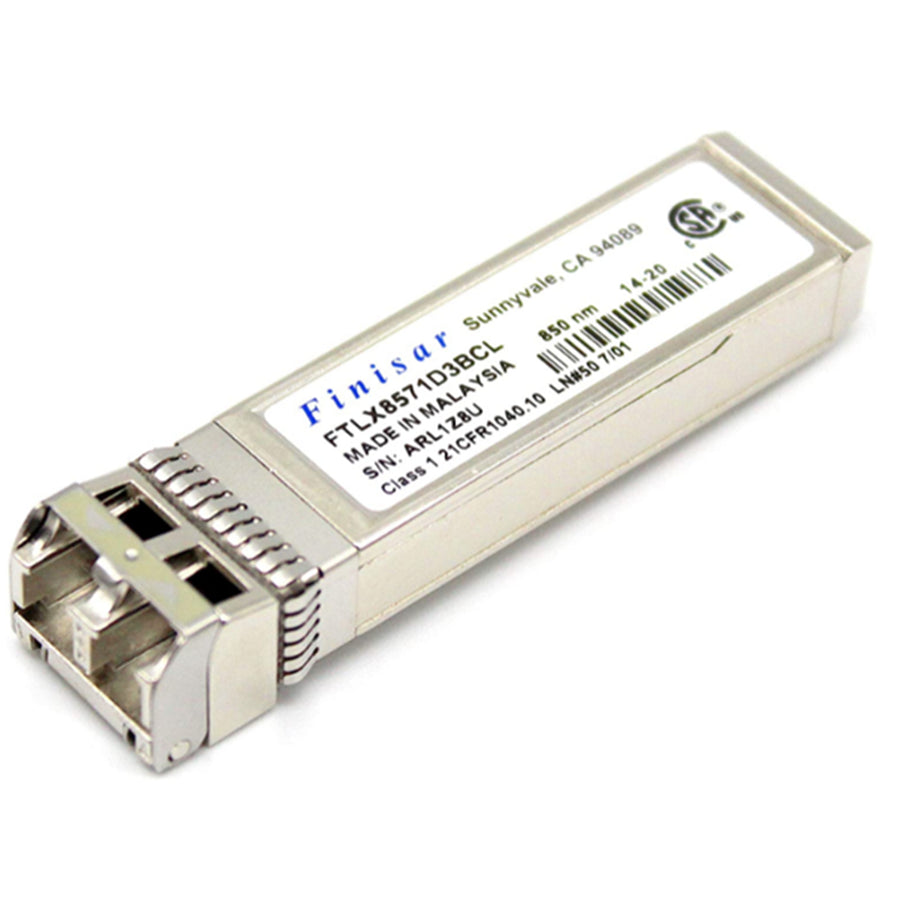

FTLX8571D3BCL - Finisar GBIC SFP+ 10GbE SR LC 850nm 300m Transceiver Module - Option
FTLX8571D3BCL - Finisar GBIC SFP+ 10GbE SR LC 850nm 300m Transceiver Module - Option
Features
Finisar® FTLX8571D3BCL Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
The Finisar® FTLX8571D3BCL compatible transceiver provides a high performance and cost-effective solution for 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW) fiber connectivity over multi-mode optical cable. It is programmed to be suitable for use with equivalent Finisar transceiver.
-Functionally identical to Finisar® FTLX8571D3BCL
-Electrical interface compliant to SFF-8431
-Compliant with SFF-8472
-10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR
-850nm VCSEL transmitter, PIN photo-detector
-Distance up to 300 meters on 10G OM3 fiber
-ROHS compliant and lead-free
-Genuine Finisar FTLX8571D3BCL SFP+ Transceiver
-Supports 9.95 to 10.5 Gb/s data rates
-10GBASE-SR 10G Ethernet, 850nm Wavelength
-Up to 300m reach over Multimode (MMF)
Specifications
Technical Specifications
| Product Dimensions | 3 x 1 x 1 inches |
|---|---|
| Item Weight | 1.58 ounces |
| Data Rate | 10Gbps |
| Wavelength | 850nm |
| Applications | Ethernet |
| Voltage - Supply | 3.3V |
| Connector Type | LC Duplex |
| Mounting Type | Pluggable, SFP+ |
| Form Factor | SFP+ |
| Data Rate | 10Gb/s |
| Wavelength | 850 nm |
| Fiber Type | MMF |
| Max Distance | 300 m |
| Optical Components | VCSEL/PIN |
| Transmitter Power | -6 ~ -1 dBm |
| Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -10 dBm |
| Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex |
| Digital Diagnostic Monitoring | Yes |
| Environment Operating | 0°C to 70°C |
| Storage | -40°C to 85°C |
| Weight | 0.03 kg |
| Applicatio | 10GBASE-SR/10GBASE-SW Ethernet10G Fibre Channel10GbE Data Center Switches and Routers |
| Compliance | IEC/EN 61000-4-2,IEC-60825FDA 21CFR 1040.10 and 1040.11RoHS |
