Features
Grandstream GCC6010W All-In-One Wi-Fi 6 Router with Enterprise Grade Firewall VPN and PBX
The GCC6000 Series provides an extraordinary all-in-one solution that redefines the communications experience by merging your unified communications and networking solutions into one platform. These state-of-the-art devices combineBthe functionality of 4 products to provide an all-in-one solution that includes a VPN router, next-generation firewall, IPBPBX, and network switch or Wi-Fi access point. With the GCC Series, you can create and manage wired, wireless, andVPN networks, provide enterprise-grade network security, and utilize a market-leading communication and collaborationBplatform. These flexible devices provide unified management and centralized control of all Grandstream endpointBsolutions, including Wi-Fi APs, network switches, IP Phones, and more. The GCC Series allows full UC, networking, andBsecurity solutions to be configured in minutes and managed through the cloud with the Grandstream Device ManagementBSystem (GDMS), and can also be managed through our mobile app, local Web UI, and SSH console management. Ideal forBsmall-to-medium sized businesses, the GCC6000 Series provides an all-in-one platform that combines all business data,Bsecurity, communication, and collaboration needs into one device - making it easier and more affordable than ever to build state-of-the-art communication solutions.
- Built-in IP PBX provides voice & video communications with advanced collaboration features (PBX Upgrade options available)
- Built-in firewall provides anti-virus, layer 3-7 IDS/IPS, DPI, SSL detection, and more
- Built-in VPN router supports 2.5Gbps or 3Gbps to allow easy remote access
- Built-in network switch with 5 or 10 Gigabit ports, 4x PoE out ports, and 2x 2.5 SFP ports (GCC6010/GCC6011)
- Built-in dual-band Wi-Fi 6 AP with 2x2 MIMO technology (GCC6010W)
- Easily configure, deploy, and manage all Grandstream endpoints from one interface
- Provides advanced security protection with encrypted traffic, secure boot, unique security certificates, and more
- Managed through the cloud (GDMS), mobile app, local WEB UI, SSH, and SNMP
- Multiple WAN ports with load balancing and failover to maximize connection reliability
An Extraordinary All-in-One Solution
The GCC6000 Series redefines the communication experience by merging unified communications, networking, and security solutions into one platform.

Enterprise-Grade Security Protection
A built-in, next-generation firewall provides bank-grade security protection with VB100 Grade-A anti-malware certification, market-leading AI-based DPI, and more.

State-of-the-Art Communications and Collaboration
The built-in IP PBX provides a suite of powerful communication and collaborationfeatures to keep every organization connected and productive.

Enhanced Network and System Management
The GCC6000 Series provides a secure, centralized interface to deploy manage and organization's entire network in real-time.

Smart QoS and Reduced Data Latency
By integrating networking and IP PBX functionality, the GCC Series significantly reduces latency and provides a smart QoS engine that ensures a smooth experience regardless of network traffic.

Designed for Small to Medium Businesses
The GCC6000 Series makes it easier than ever to build state-of-the-art business solutions by combining all networking, communication, and security needs into one solution.

Specifications
Technical Specifications
| Brand | Grandstream |
|---|---|
| Manufacturer Part Number | GCC6010W |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Antennas | 3 individual internal antennas ( 2 x dual band + 1 x single band 5G)2.4GHz: maximum gain 4dBi5 GHz: maximum gain 6dBi |
| Wi-Fi Data Rates | 2.4G:IEEE 802.11ax: 7.3 Mbps to 573.5 MbpsIEEE 802.11n: 6.5 Mbps to 300 MbpsIEEE 802.11b: 1, 2, 5.5, 11 MbpsIEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps5G:IEEE 802.11ax: 7.3 Mbps to 3603 MbpsIEEE 802.11ac: 6.5 Mbps to 2600 MbpsIEEE 802.11n: 6.5 Mbps to 450 MbpsIEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network. |
| Frequency Bands | 2.4GHz radio: 2400 - 2483.5 MHz(2412-2472MHz is channel central frequency range; 2400-2483.5MHz is Frequency band)5GHz radio: 5150 - 5895 MHz*Not all frequency bands can be used in all regions |
| Channel Bandwidth | 2.4G: 20 and 40 MHz5G: 20, 40, 80, 160 MHz |
| Wi-Fi and System Security | WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| MU-MIMO | 2x2:2 2.4GHz3x3:3 5GHz |
| Maximum TX Power | 5G: 25.5dBm2.4G: 28.5dBm*Maximum power varies by country, frequency band and MCS rate |
| Receiver Senstivity | 2.4G802.11b: -97dBm @ 1Mbps, -89dBm @ 11Mbps;802.11g: -93dBm @ 6Mbps, -75dBm @ 54Mbps;802.11n 20MHz: -73dBm @ MCS7; 802.11n 40MHz: -70dBm @ MCS7;802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @ MCS115G802.11a: -93dBm @ 6Mbps, -75dBm @ 54Mbps;802.11n: 20MHz: -73dBm @ MCS7; 802.11n 40MHz: -70dBm @ MCS7802.11ac 20MHz: -70dBm @ MCS8; 802.11ac: HT40:- 66dBm @ MCS9; 802.11ac 80MHz: -62dBm @ MCS9;802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -61dBm @ MCS11;802.11ax 80MHz: -58dBm @ MCS11802.11ax 160MHz: -54dBm @ MCS11 |

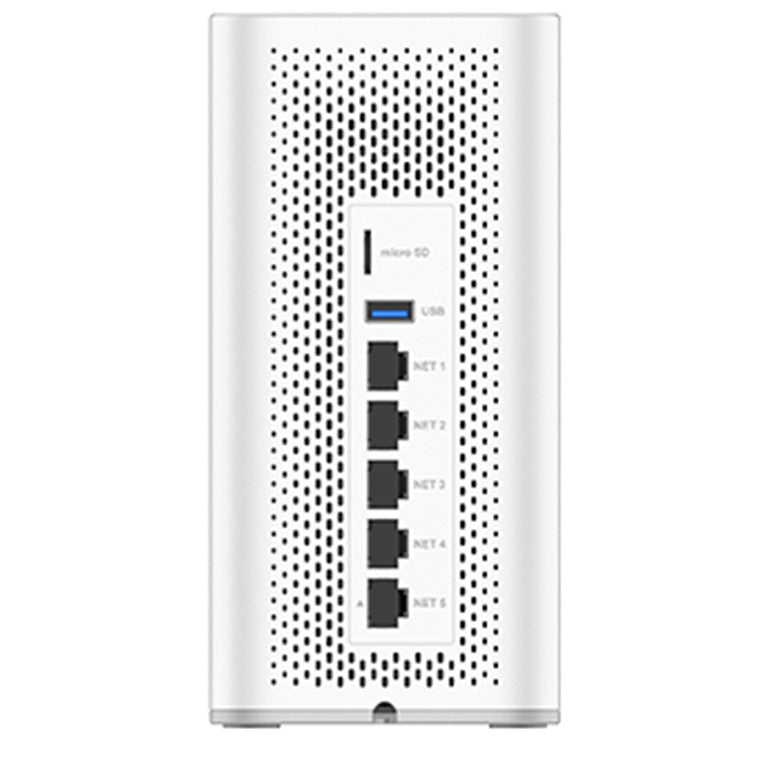

| Network Ports | 5x Gigabit Ethernet ports*All ports are WAN/LAN configurable, max 3x WAN |
| Auxiliary Ports | 1xMicro-SD, 1xUSB 3.0, 1xReset |
| Memory | 2GB RAM, 32GB eMMC Flash |
| External Storage | N/A |
| Router | 3Gbps |
| IPsec VPN Throughput | 1Gbps |
| NAT Sessions | 160K |
| IDS/IPS | 900Mbps |
| PBX | 12 users and 4 concurrent calls by defaultUpgrades available for purchase (See more for PBX capacity upgrade options) |
| Mounting | Desktop |
| Material | Plastic Mini-Tower |

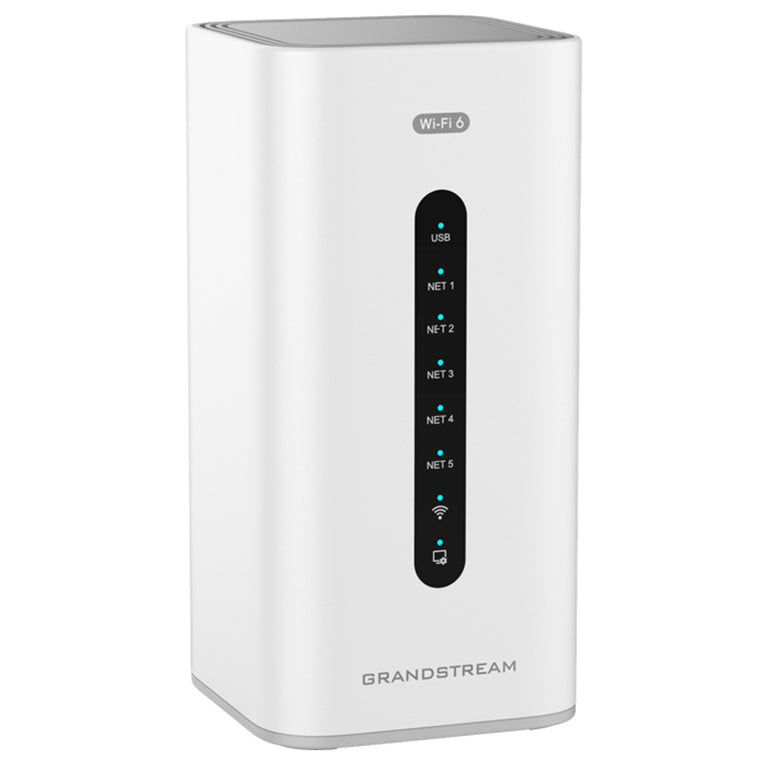

| LEDs | 8 x LEDs for device tracking and status indication |
| Connection Type | DHCP, Static IP, PPPoE |
| Network Protocols | IPv4, IPv6, IEEE802.1q, IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab |
| QoS | VLAN, TOSSupport multiple traffic classes, filter by port, IP address, DSCP and policingApp QoS: Application/protocol monitoring and traffic statisticsVoIP Prioritization |
| Firewall | DDNS, Port Forwarding, DMZ, UPnP, DoS & Spoofing defense, traffic rules, NAT, ALGDPI, Anti-Virus, IPS/IDS, SSL proxyContent Control: DNS filtering, web url/class/key words filtering, application identification and control |
| VPN | IPsec VPN Client-to-Site / Site-to-SiteIPSec Encryption: 3DES, AESIPSec Authentication: MD5, SHA-1, SHA2-256IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14IPSec Protocols: ESPIPSec NAT TraversalPPTP VPN Server / ClientPPTP Encrpytion: MPPE 40-bit, 128-bitPPTP/L2TP Authentication: MS-CHAPv1/2L2TP Client-to-SiteOpenVPN® Server / ClientOpenVPN® Encryption: AES, DESOpenVPN® Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512OpenVPN® Certificate: RSAWireGuard® |
| Network Management | Grandstream Device Management System (GDMS), Local Web GUI, SSH, and SNMP (v1/ v2c/v3) |
| Max AP/Clients | Up to 150 GWN APs; Up to 500 Clients |
| Power and Green Energy Efficiency | Universal power adaptor included:Input: 100-240VAC 50-60HzOutput: 12VDC 1.5A (18W) |
| Environmental | Operation: 0°C to 45°CStorage: -30°C to 60°CHumidity: 5% to 95% Non-condensing |
| Dimensions | 95 x 95 x 193 mm |
| Weight | 565g |
| Compliance | FCC, CE, RCM, IC |
