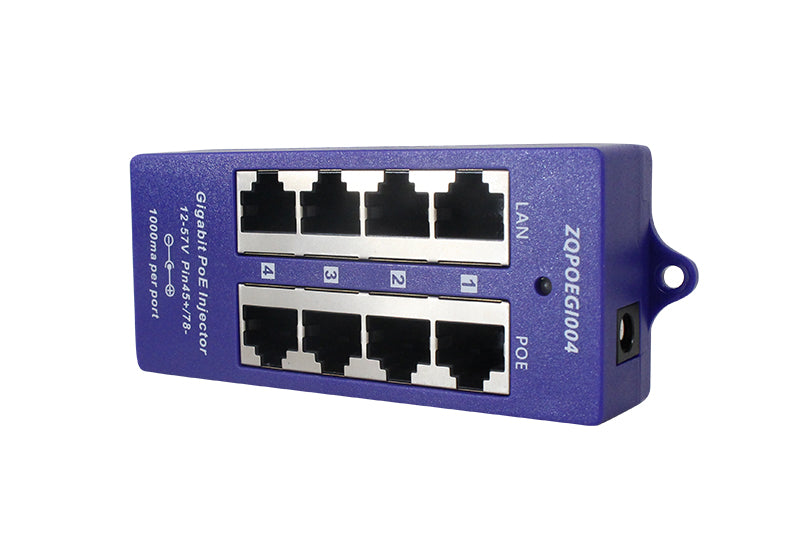

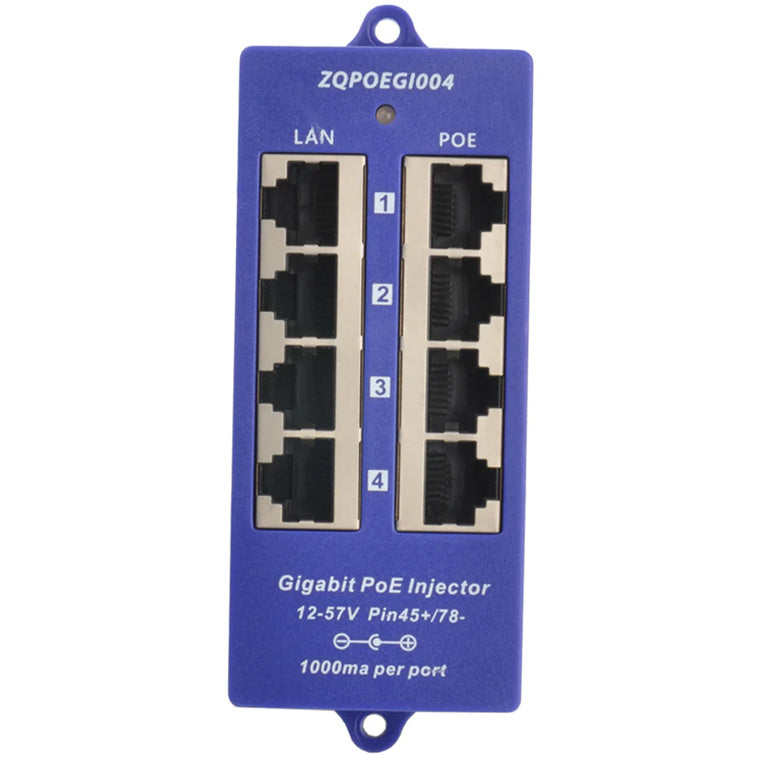

GPOE-4B-24v - PoE World 4 Port Gigabit Shielded Passive 12-57V Midspan PoE Injector
$30.01$30.74
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features

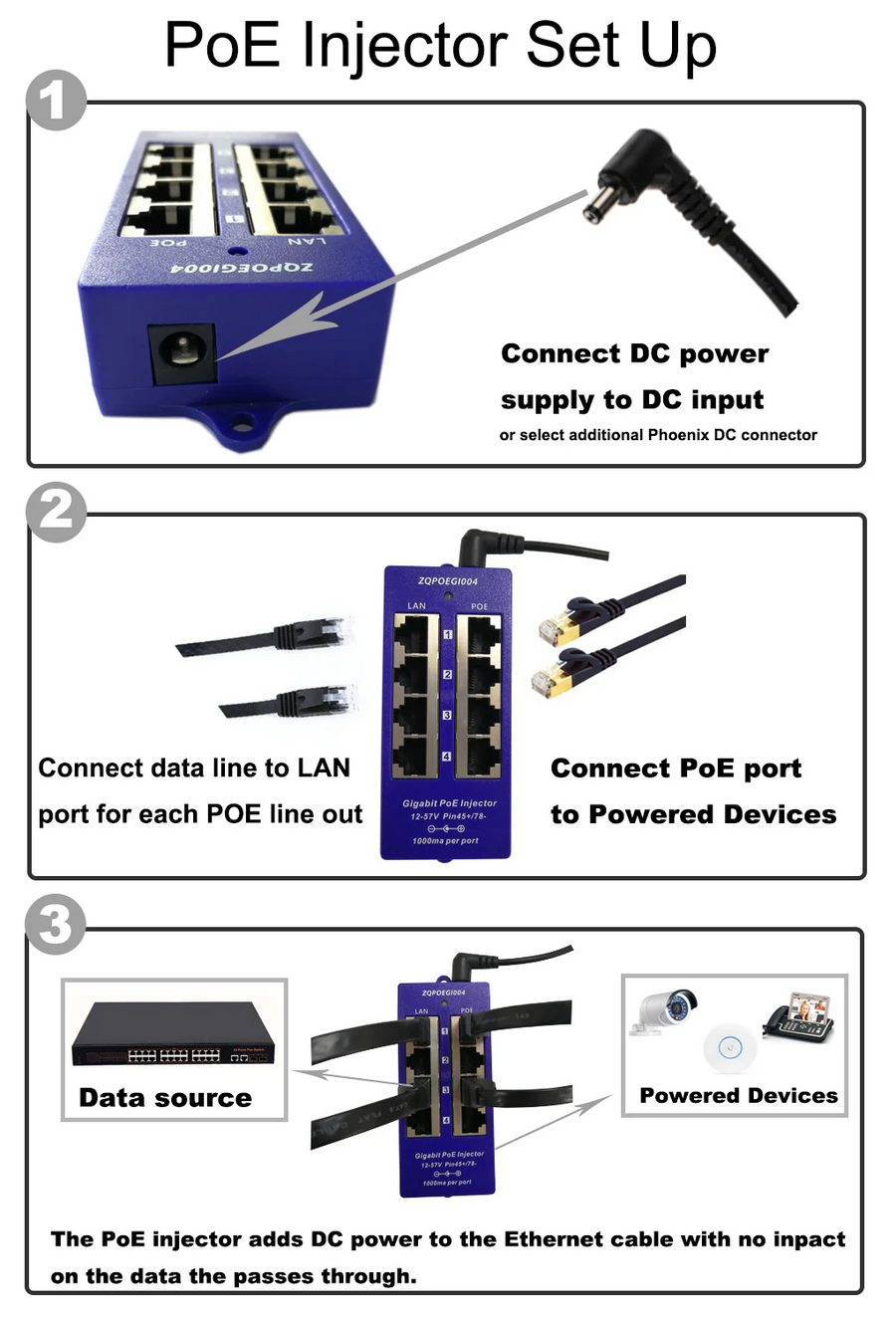

Power up to four IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source. Use this injector with a 24v, 48v or 56v power supply to provide direct voltage to your device.
- 4 RJ45 jacks with data + power out
- 4 RJ45 jacks for data to the switch
- Supports 12-57VDC Input with Passive Output
- Up to 1000mA per port
- Convenient Wall-mountable design
- Shielded RJ45 Connectors
- Perfect for 24V PoE compatible devices
Specifications
Technical Specifications
| Brand | PoE World |
|---|---|
| Input Voltage | 12-57VDC |
| Output Voltage | 12-57V Passive POE Mode B (4,5+ / 7,8-) |
| Max Output Current | 1000mA per port |
| Rating | Indoor |
| Input Connector 1 | 2.1mm DC Plug Female (Positive Centre) |
| Type | Passive |
| Wall Mount | Stackable |

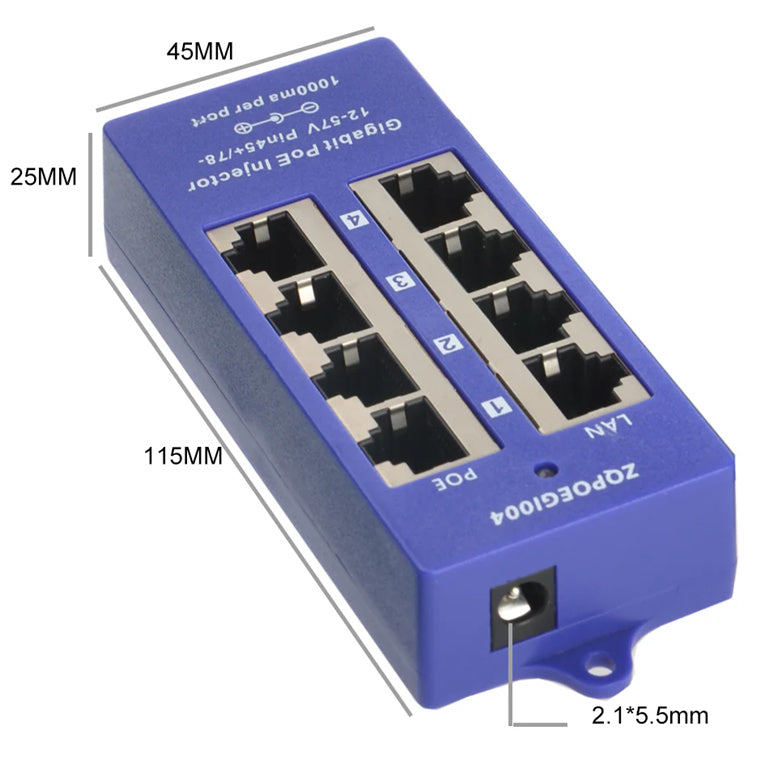

| Dimensions | 115mm x 45mm x 25mm including 10mm tabs |
| DC Plug | 2.1mm x 5.5mm |
| Opereating Temperature | 0°C ~ 65°C |
| Brand | PoE World |
|---|---|
| Product Type | Networking > Network Accessories > PoE Injectors |
| Weight | 0.08 kg |
| Warranty |
|---|
