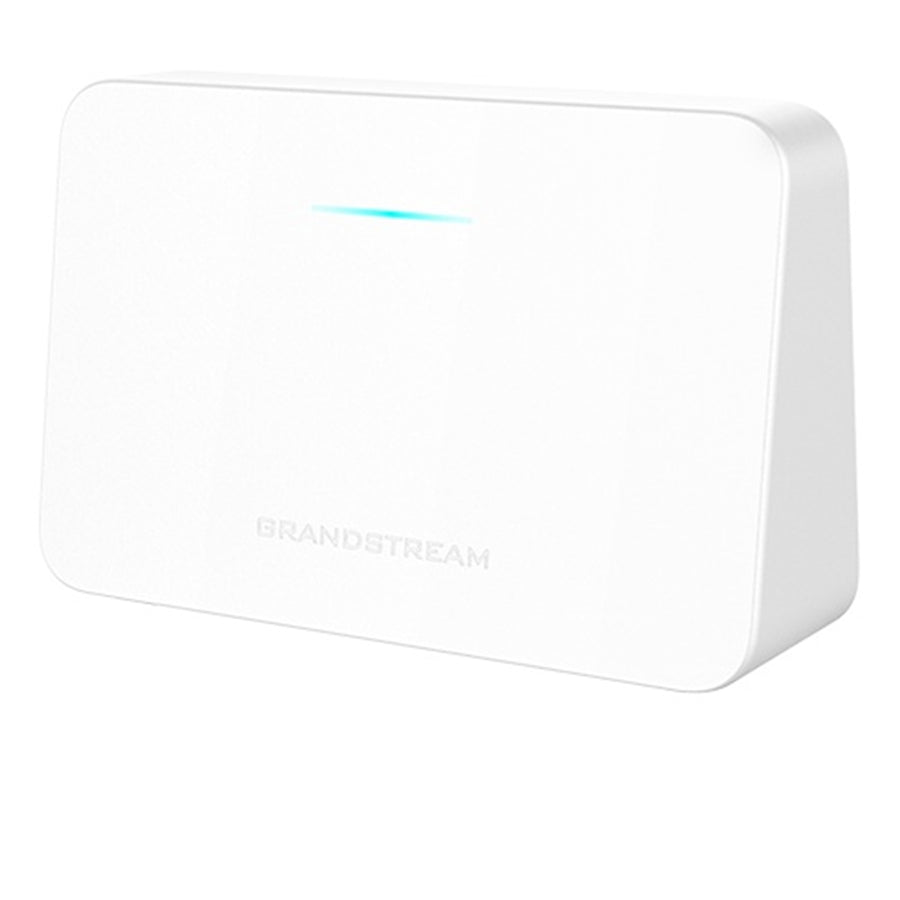

Grandstream GWN7062E - GWN7062E Long Range 2x2:2 Wi-Fi Router Hardware
Grandstream GWN7062E - GWN7062E Long Range 2x2:2 Wi-Fi Router Hardware
Features
The Grandstream GWN7062E is a secure dual-band AX3000 router powered by the latest Wi-Fi 6 (802.11ax) technology. Ideal for small offices, home offices and remote workers, the GWN7062E provides 2.4G 2×2:2 and 5G 3x3:2 MU-MIMO with XTRA Range technology with beamforming for maximum network throughput and expanded Wi-Fi coverage range, as well as support for wireless Mesh networks. It features a powerful 1.3GHz dual-core processor to provide Wi-Fi speeds up to 3Gbps with up to 128 wireless devices, allowing the GWN7062E to power smart office and home automation, smooth 4K Ultra HD streaming, web meetings, video conferences, online gaming and more. It offers high-performance routing and switching power along with built-in VPN support for secure in-office and inter-office connectivity. The GWN7062E provides parental controls by managing online time control, blocking inappropriate content, and offering daily and weekly statistics to keep families safe while online. This router also provides enterprise-grade security features to ensure secure Wi-Fi and VPN access, including unique security certificates and random default passwords. To ensure easy installation and management, the GWN7062E includes a built-in controller embedded within the product's web user interface. It is also supported by GDMS Networking and GWN Manager, Grandstream's free cloud and on-premise Wi-Fi management platforms. By combining accelerated Wi-Fi speeds, with advanced features including VPN and intelligent QoS, the GWN7062E is the ideal router for a growing home, small offices, business network and more.
- Powered by Wi-Fi 6 standard with up to 3Gbps wireless throughput
- Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU-MIMO with technology
- Built-in VPN support allows easy access to corporate networks for remote employees
- Rich firewall features including DoS, blocklist and URL content filtering
- Supports Mesh networking with Grandstream routers to provide easy network expansion
- Secure cloud provisioning through GDMS Networking

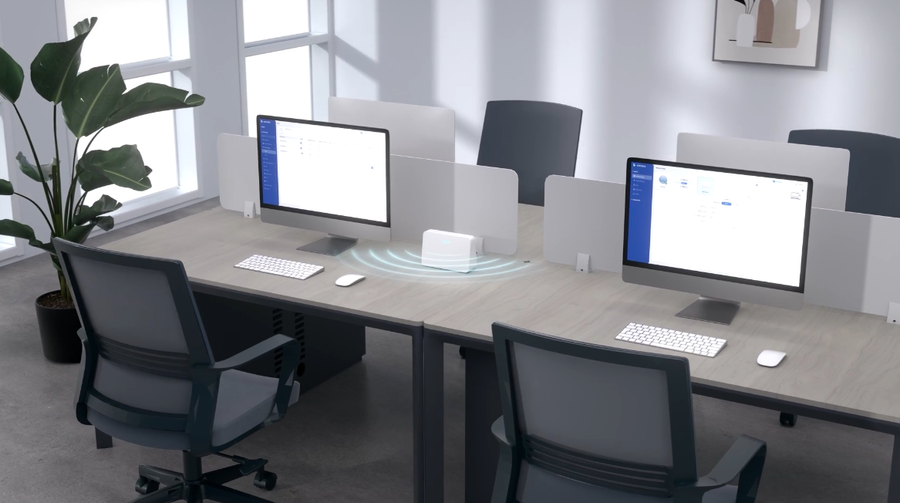

Designed for Small Business and Home Networks
By combining accelerated Wi-Fi speeds with mesh networking, VPN, intelligent QoS URL filtering, and more, these Wi-Fi 6 routers are the ideal for a growing home and small business network.

Powerful Dual-Core Processor
These Wi-Fi 6 Routers are powered by a 1.3GHz dual-core processor to support smart offices, home automation, 4K HD streaming, web meetings, online gaming and more.

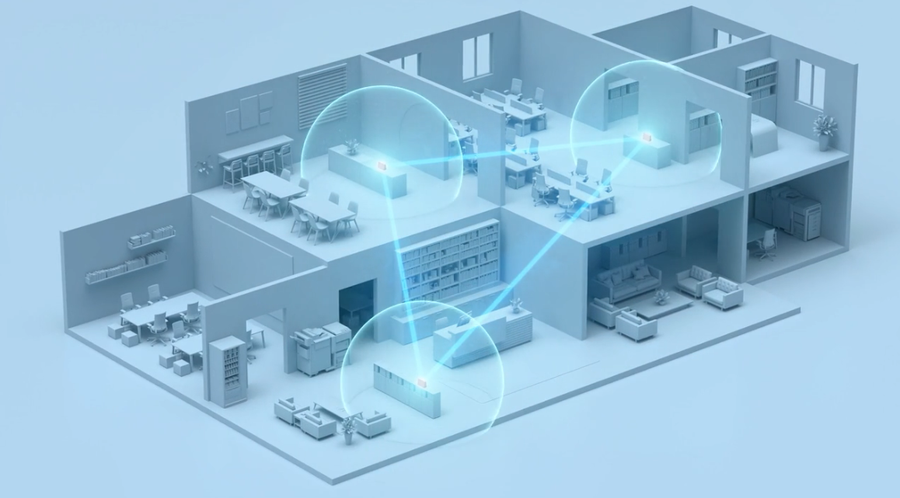

Maximum Network Efficiency with MESH
Maximize network efficiency and easily expand your network at any time by building Mesh networks that pair the GWN7062E with other Grandstream Wi-Fi access points and routers.

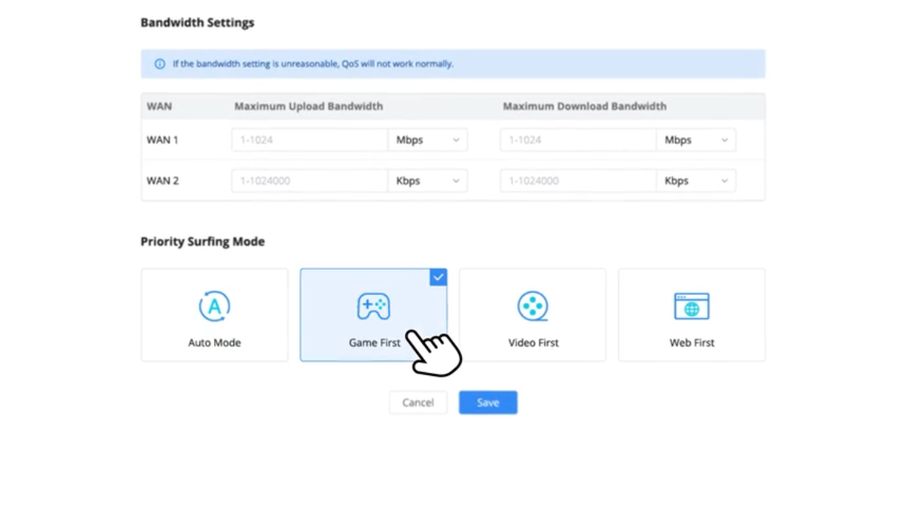

Full Network Control
Intelligent QoS allows users to prioritize critical data streams to guarantee a smooth experience for high-bandwidth services and applications.

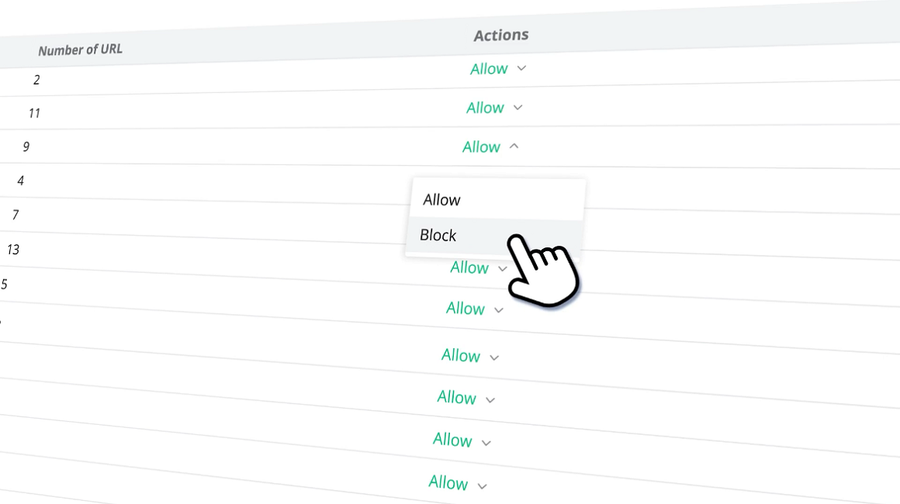

Content and URL Filtering
Admins can easily monitor and manage network traffic thanks to URL filtering and content blocking while accessing detailed network and traffic statistics, reports, and alerts.

Parental Control Keeps Families Safe
Built-in parental controls manage and control online time, block inappropriate content, and offer network usage statistics to keep families safe while online.

Specifications
Technical Specifications
| MPN | GWN7062E |
|---|---|
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Antennas | 1x 5GHz: maximum gain 3.4dBi; 2x 2.4GHz&5GHz: maximum gain 4.7dBi for 2.4GHz, 4.3dBi for 5GHz |
| Wi-Fi Data Rates | 5G: IEEE 802.11ax: 7.3 Mbps to 2402 Mbps; IEEE 802.11ac: 6.5 Mbps to 1732 Mbps; IEEE 802.11n: 6.5Mbps to 300Mbps; IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps;2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps; IEEE 802.11n: 6.5Mbps to 300Mbps; IEEE 802.11b: 1, 2, 5.5, 11 Mbps; IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps (Actualthroughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in thenetwork) |
| Frequency Bands | 2.4GHz radio: 2400-2483.5MHz. 5GHz radio: 5150-5895MHz (Not all frequency bands can be used in all regions) |
| Channel Bandwidth | 2.4G: 20 and 40MHz; 5G: 20, 40, 80 and 160MHz |
| Security | WPA/WPA2, WPA2, WPA2/WPA3, WPA3; anti-hack security boot and critical data/control lockdown via digital signatures; unique security certificate and random default passwordper device; security firewall including DoS, blocklist and URL content filtering; application monitoring and traffic statistics with DPI |
| MU-MIMO | 2×2:2 2.4GHz; 3×3:2 5GHz |
| Maximum TX Power | 2.4G: 24dBm; 5G: 26dBm (Maximum power varies by country, frequency band and MCS rate) |
| SSIDs | 4 |
| Concurrent Wireless Clients | Up to 128 wireless clients |

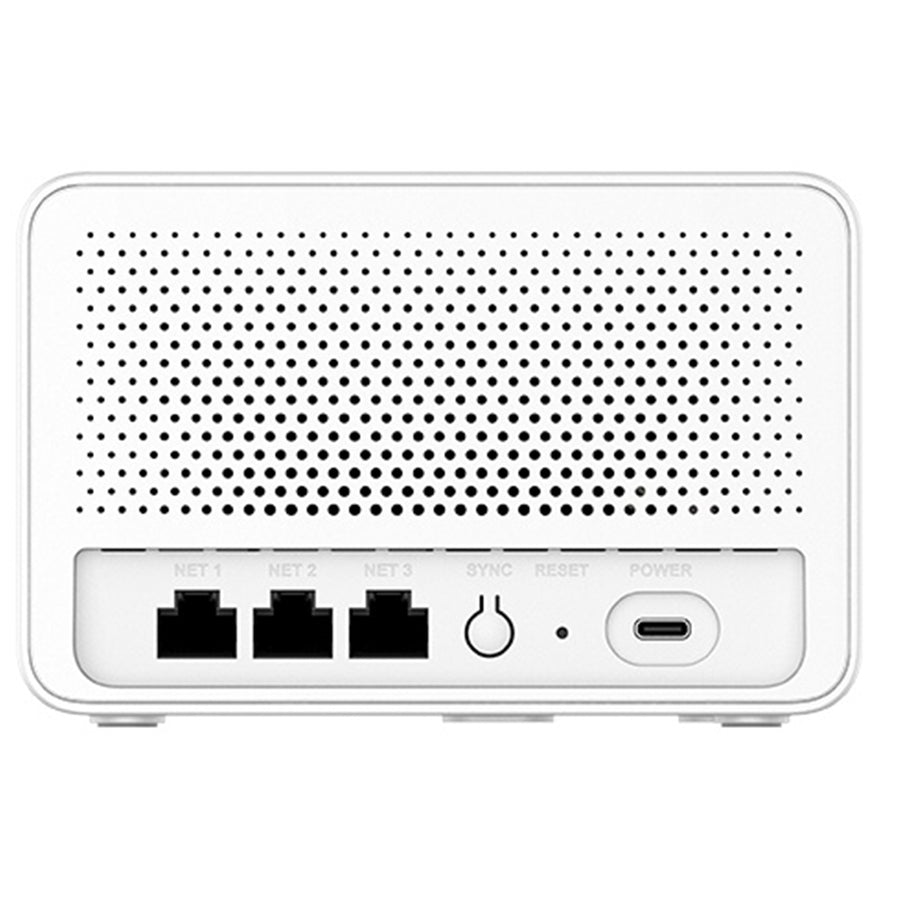

| Networking Interfaces | 3x autosensing 10/100/1000Mbps Ethernet ports |
| Auxiliary Ports | 1x SYNC, 1x POWER, 1x RESET Pinhole |
| Mounting | Desktop or wall-mounting |

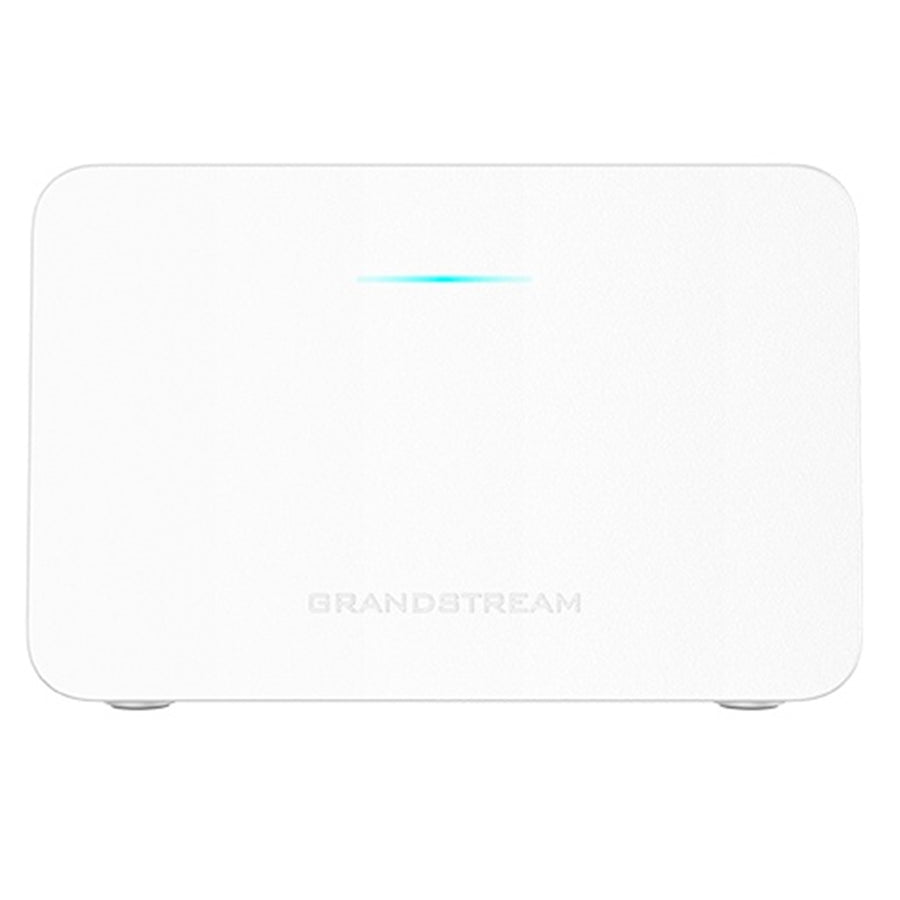

| LED | 1x tri-color LED for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1p, 802.11e/WMM, DSCP |
| QoS | Support 8 queues with multiple traffic priority and bandwidth, APP QoS, QoS rules |
| NAT | DDNS, Port Forwarding, DMZ, UPnP |
| VPN | Supports 1 VPN tunnel: L2TP Client, PPTP Client, IPSec Site-to-Site & Client-to-Site, OpenVPN® Server, WireGuard® Site-to-Site & Peer-to-Site |
| Networking Management | Embedded controller (can only manage itself); GDMS (Networking) offers a free cloud management platform for unlimited GWN Routers; GWN Manager offers premise-based software controller; TR-069 |
| Power and Green Energy Efficiency | USB Type-C power adapter included: Input: 100~240V 50/60Hz; Output: 5V/3A(15W) |
| Environmental | Operation: 0°Cto 40°C, humidity: 10% to 90% RH (Non-condensing); Storage: -20°C to 60°C, humidity: 10% to 90% RH (Non-condensing) |
| Dimensions | Unit Dimensions: 140mm(L)*46mm(W)*90mm(H); Entire Package Dimensions: 176.5mm(L)*170mm(W)*72mm(H) |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Grandstream |
|---|---|
| Product Type | B2B - Unified Comms |
| Weight | 0.5 kg |
