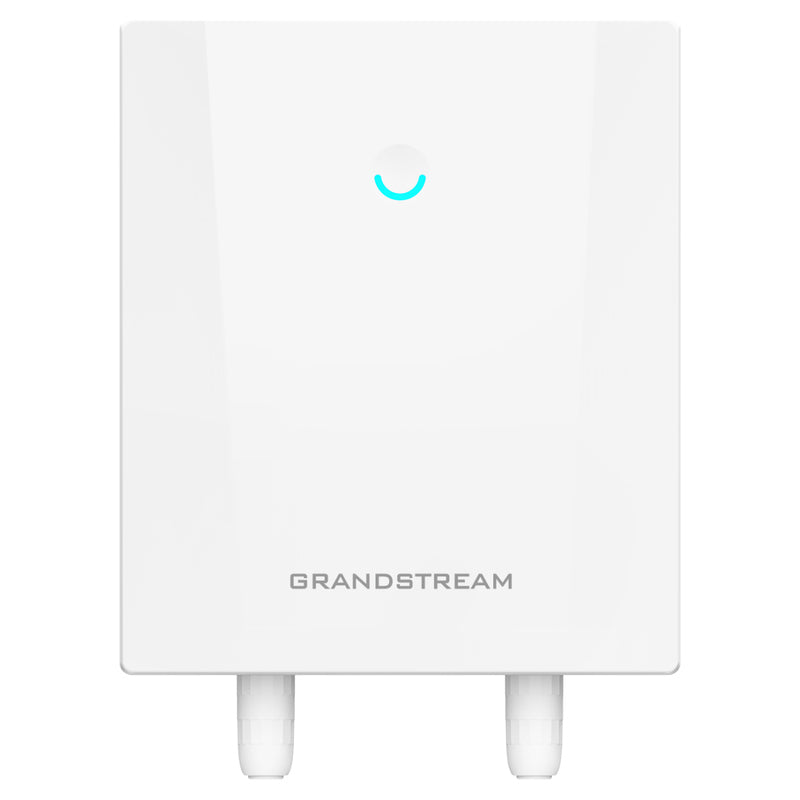

Grandstream GWN7670ELR 2x2 Dual Band WiFi 7 Long Range Outdoor Access Point with 2.5gbps Ethernet and SFP
Features
Grandstream GWN7670ELR 2x2 Dual Band WiFi 7 Long Range Outdoor Access Point with 2.5gbps Ethernet and SFP
The Grandstream GWN7670ELR is a high-performance outdoor Wi-Fi 7 BE3600 access point designed for medium-to-large businesses.
Featuring advanced 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO plus DL/UL OFDMA, it delivers exceptional throughput and range.
Boosted by Xtra Range 2.0 on the 5 GHz band, it shatters coverage barriers with enhanced signal penetration for seamless 360-degree connectivity.
Its IP67-rated weatherproof design ensures stable operation in harsh outdoor environments.
This model offers hybrid management flexibility through its local web UI or cloud-based platforms like GDMS Networking and GWN Manager.
The GWN7670ELR delivers robust, long-range Wi-Fi for enterprises, multi-floor offices, warehouses, parks, hospitals, schools, and more.
Application Scenarios This model is purpose-built for superior outdoor connectivity with its IP67 rating, delivering enterprise-grade performance for stadiums, warehouses, and parks.
Its omnidirectional antennas provide seamless 360° coverage in high-density venues like stadiums, eliminating the need for complex adjustments.
For industrial zones, its rugged design ensures reliable connectivity in warehouse loading docks and parking lots.
Additionally, this easily pole-mounted model provides visitors with fast, stable public Wi-Fi throughout park grounds.
Classic Deployment Engineered for effortless integration into any network environ
Supplied new by KW Tech, New Zealand. Prices include GST.
Specifications
Technical Specifications
| Brand | Grandstream |
|---|---|
| Model | GWN7670ELR |
| Manufacturer's Code | GWN7670ELR |
| Antenna | 5 single-frequency antennas, 2.4 GHz: 2 × 5.5 dBi, 5 GHz: 3 × 6.5 dBi |
| MIMO | 2.4 GHz: 2×2:2, MU-MIMO, 5 GHz: 3×3:2, MU-MIMO |
| Frequency Bands | 2.4 GHz Radio: 2,400–2,483.5 MHz, 5 GHz Radio: 5,150–5,850 MHz (Not all frequency bands can be used in all regions) |
| Channel Bandwidth | 2.4 GHz: 20 and 40 MHz, 5 GHz: 20, 40, 80 and 160 MHz |
| Maximum TX Power | 2.4 GHz: 24 dBm, 5 GHz: 26 dBm (Maximum power varies by country, frequency band and MCS rate) |
| Coverage Range | Up to 350 m (Coverage range may vary based on environment) |
| Network Ports | 1 × 2.5 GbE RJ45 port (Supports PoE Input), 1 × SFP port |
| Other Ports | 1 × Reset Pinhole, 1 × Kensington Lock |
| System LED | 1 tri-color LED for device tracking and status indication, 1 green LED for SFP status (Supports LC Fiber) |
| PoE Standards | 802.3at |
| Max Power Consumption | 16 W |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 5%–95%, non-condensing |
| Compliance | FCC, CE, RCM, IC |
| Ingress Protection | IP67 |
| Brand | Grandstream |
|---|---|
| Product Type | Networking > Wireless Access Points > Outdoor Access Points |
| Weight | 2.0 kg |
