MikroTik LHG-5axD Long-range Outdoor 24.5dBi Wi-Fi 6 CPE
Features
LHG 5 ax
Long-range outdoor CPEs with modern Wi-Fi 6 performance, rugged design, and unbeatable pricing. Available in two models (24.5 or 27 dBi), they're ideal for point-to-point links over great distances. This is the 24.5 dBi version.
- Wi-Fi 6 for long-range links
- Available in 24.5 or 27 dBi versions
- WPA3 security built-in

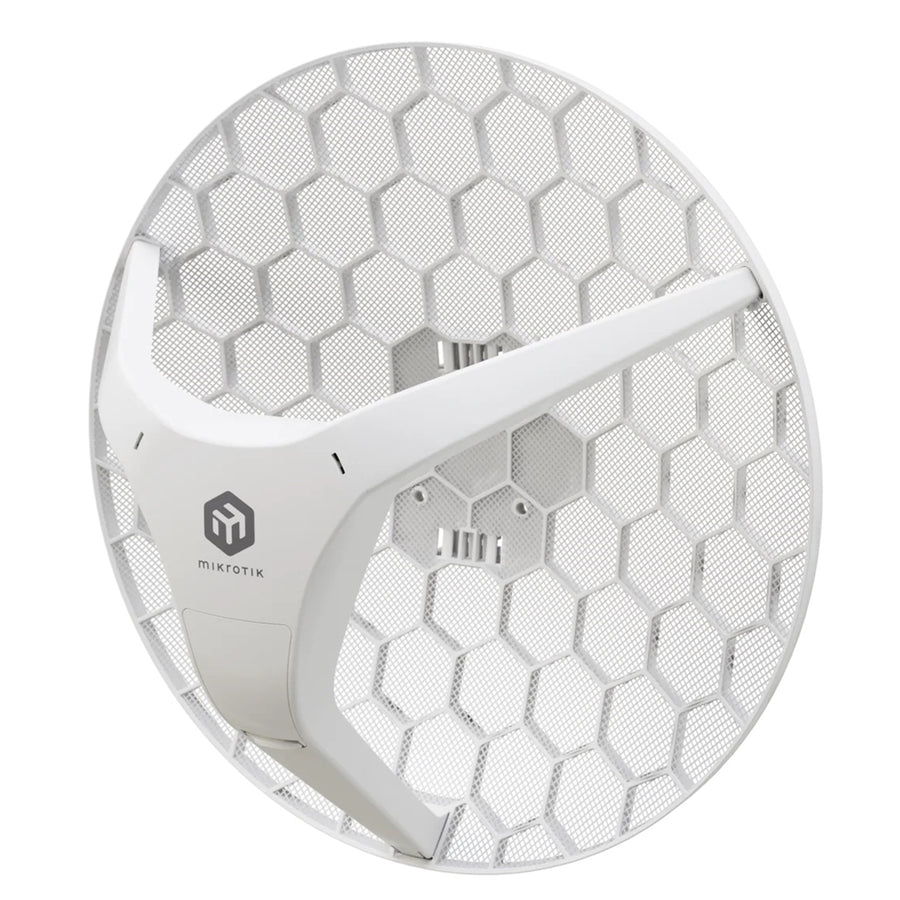

- Aerodynamic grid antenna design

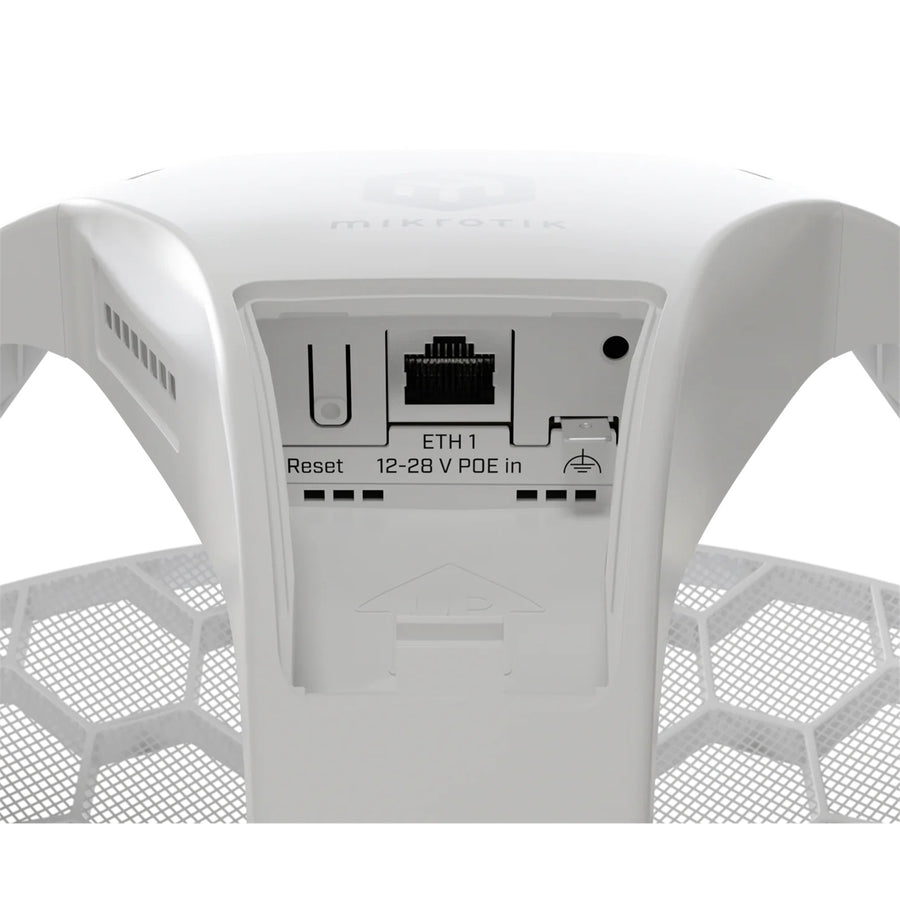

- Passive PoE powering (12-28V)
- RouterOS V7 inside
- Included all mounting hardware
Need a fast, stable connection across large distances?
Whether you're bridging two buildings, connecting a remote site, or sharing your internet with nearby infrastructure - the new LHG Wi-Fi 6 series is built for the challenge. And here's the best part: we've kept the same pricing as the previous generation. High performance, long range, and Wi-Fi 6 - all without breaking the budget.
Reliable Wi-Fi 6 long-distance links
A compact, long-range CPE with a 24.5 dBi antenna. Perfect for links up to 20 km in most scenarios.
- Gigabit Ethernet with PoE-in
- State-of-the-art antenna built directly into the wireless unit
- Modern dual-core ARM CPU
Wi-Fi 6 can be a real game-changer! Here's why:
The 802.11ax standard brings crucial improvements for long-distance wireless links - including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking.
Specifications
Technical Specifications
| MPN | LHG-5axD |
|---|---|
| Architecture | ARM 32bit |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 5 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 12-28 V |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz Number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 24.5 |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| 10/100/1000 Ethernet ports | 1 |
| CPU temperature monitor | Yes |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 54 |
| Brand | MikroTik |
|---|---|
| Product Type | Networking > Wireless Access Points |
| Weight | 0.5 kg |
