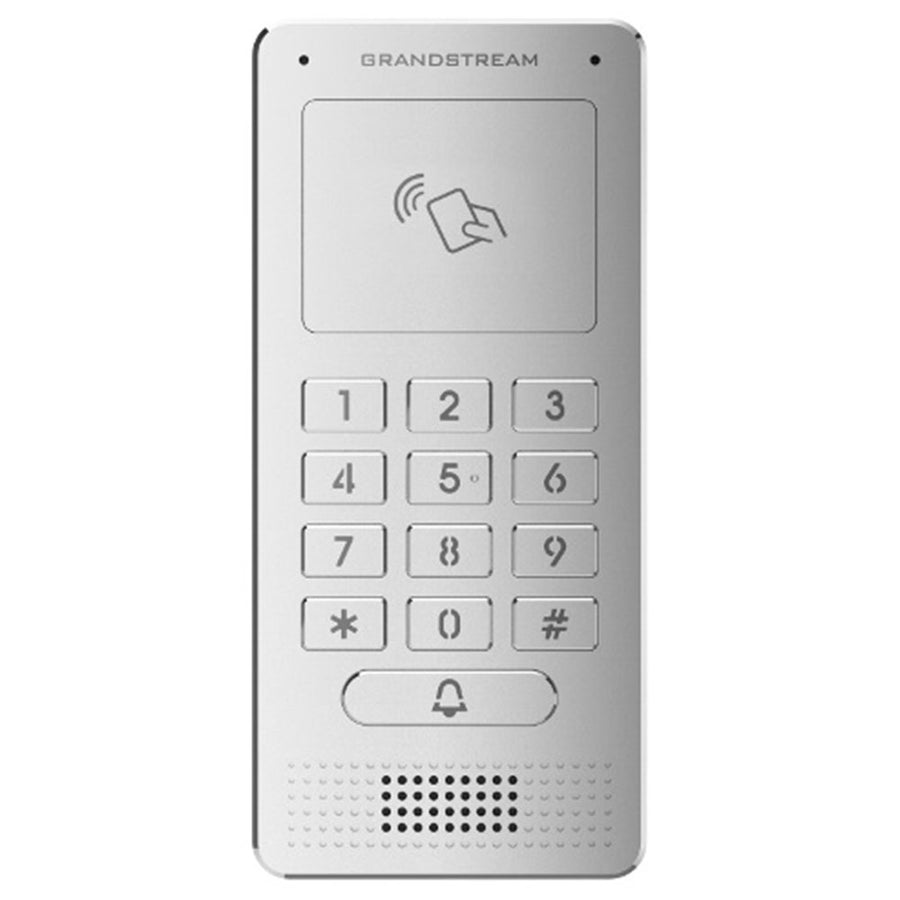

Grandstream Networks GDS3705 - Grandstream GDS3705 HD IP Audio Door System
Grandstream Networks

Grandstream Networks GDS3705 - Grandstream GDS3705 HD IP Audio Door System

SKU: GDS3705 ● In Stock
$180.83
Free shipping over $299 Genuine product 7-day returns

GDS3705

Grandstream Networks GDS3705 - Grandstream GDS3705 HD IP Audio Door System

Description

The Granstream GDS3705 was built for users looking for a strong VoIP audio-only facility access and security monitoring solution that can be deployed in environments of all sizes. This audio door system features dual microphones and HD loudspeaker with advanced AEC to offer intercom functionality, can support SIP calls to VoIP phones and has a built-in RFID chip reader and keypad for secured keyless or key entry. The GDS3705 comes equipped with a zinc alloy metal casing, making it weatherproof and vandal resistant and offers alarm-in and alarm-out support for integration with existing security devices. The GDS3705 integrates with Grandstream’s free management utility software, GDS Manager, allowing RFID card information, as well as the device itself to be fully managed by this software. Thanks to its integration with other Grandstream endpoints like the GXP IP phones, GXV video phones, portable Wi-Fi and DECT IP phones and Grandstream Wave mobile app, the GDS3705 offers a complete end-to-end solution for access control, audio intercom, and security needs.
Features
  • HD audio options with up to 1.5m of audio input and 3m of audio output
  • Built-in RFID chip reader for keyless entry
  • Supports SIP calls to IP phones to facilitate communication
  • Built with a metal casing to make it weatherproof and vandal resistant
  • Integrated PoE to power the device and provide a network connection
  • Built-in dual microphone and HD loudspeaker with advanced AEC offers intercom functionality

Specifications

Details
Manufacturer's Product Code GDS3705
Network 10M/100M Auto-sensing
PoE PoE IEEE 802.3af Class3
Supply Voltage 12VDC /1A (AC power adapter not included)
SIP/VoIP Support Yes, broad interoperability
Voice Codecs G.711μ/a, G.722
Audio Input Integrated dual microphones up to 1.5m
Audio Output HD loudspeaker 2W, up to 3m
Built-in Key Pad 12+1 Metal keys with Blue LED backlight
RFID EM4100 (125kHz)
Input 2 Optocoupler Input, VIN <15V, for Door Switch/Magnetic and Alarm in
Output 2 Relay, 125VAC/0.5A, 30VDC/2A, for Electric Lock and Alarm out
Wiegand IN & OUT Wiegand 26
RS485 RS485 (300m or 1000ft)
Waterproof Certification IP66 (EN60529)
Vandal Resistance IK09 (IEC62262)
Temperature Range -30°C to 60°C
Mounting Wall-Surface, In-Wall
Dimension (HxWxD) In wall 217mm x 120mm x 11.6mm; On Wall 173mm x 80mm x 36mm
Weight 0.635Kg
Compliance FCC: Part 15 subpart B;Part15C;MPE, CE: EN55032 Class B; EN61000-3-2; EN61000-3-3; EN50130; EN300 330; EN301, 489-1/-3; EN60950-1; EN62311, RCM: AS/NZS, CISPR32;AS/NZS4268;AS/NZ60950, IC:ICES-003;RSS310
