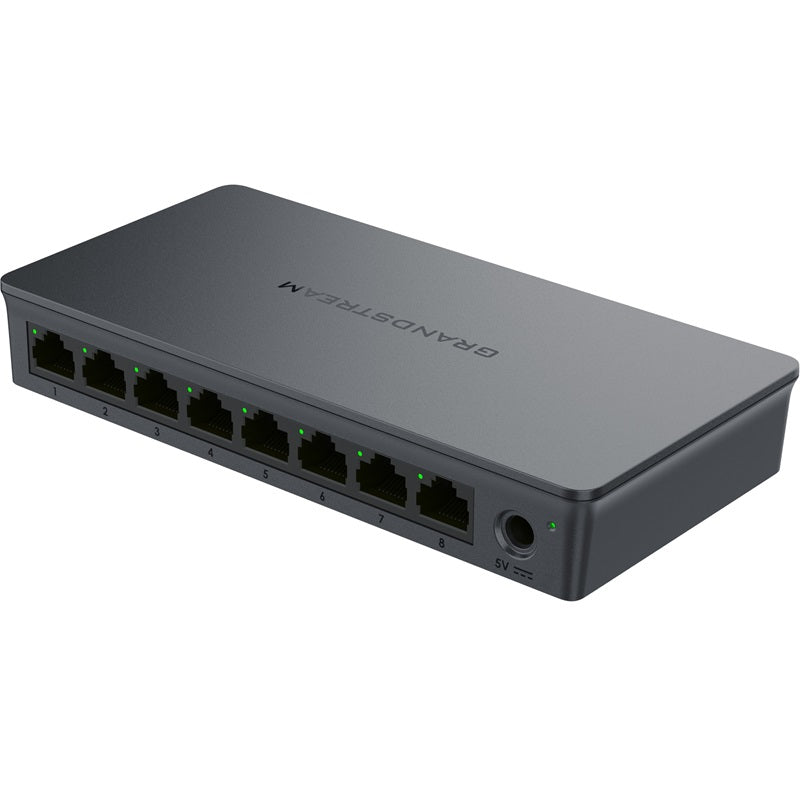

Grandstream Networks GWN7711 - Grandstream GWN7711 Layer 2-Lite Managed Switch 8 port Gigabit EThernet
Grandstream Networks

Grandstream Networks GWN7711 - Grandstream GWN7711 Layer 2-Lite Managed Switch 8 port Gigabit EThernet

SKU: GWN7711 ● In Stock
$51.75
Free shipping over $299 Genuine product 7-day returns

GWN7711

Grandstream Networks GWN7711 - Grandstream GWN7711 Layer 2-Lite Managed Switch 8 port Gigabit EThernet

Description

Grandstream GWN7711 Layer 2-Lite Managed Switch, 8 x Gig Ethernet. The GWN7711 series are Layer 2 Lite managed network switches that allow small-to-medium businesses to build scalable, secure, and smart business networks that are easy to use and cloud manageable.

They support VLAN for flexible and sophisticated traffic segmentation, QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

The GWN7711 Series are easy to manage through the local web user interface and the cloud using the Grandstream Device Management System (GDMS). By supporting both desktop and wall mount installation, these Layer 2 Lite switches are suitable for hotels, home offices, small-to-medium businesses, and more. Thanks to a comprehensive suite of customizable switching features, available and easy cloud management, the GWN7711 series are the ideal managed network switches for small-to-medium sized deployments.
Features
  • 8 Gigabit Ethernet ports
  • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
  • Supports Loop Detection, Cable Test and Port Mirror to quickly locate network faults
  • Whisper Quiet: fan-less
  • Convenient and intelligent management through the Web UI and the cloud (GDMS)
  • Broadcast/Multicast/Unicast Storm Control to monitor traffic levels
  • Built-in QoS allows for prioritization of network traffic

Specifications

Details
Manufacturer's Code GWN7711
Network Protocol IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Gigabit Ethernet Ports 8
PoE Out Ports 4
Power Supply External 5VDC/0.6A
Auxiliary Ports 1x Reset Pinhole
Forwarding Mode Store-and-forward
Total non-blocking throughput 8Gbps
Switching Capability 16Gbps
Jumbo Frame 2K/3K/4K/5K/6K/7K/8//9K/12K/15K
Forwarding Mode 11.9Mpps
Packet Buffer 4Mb
MAC 8K MAC address capacity, Support MAC address search
VLAN 4K VLANs, Port-based VLAN, 802.1Q VLAN
LAG 4
Multicast IGMP Snooping, Report Message Suppression
QoS Auto prioritization of the incoming port of the packet, Priority Mapping, Queue scheduling, including SP, WRR, WFQ, Supports port priority, 802.1p priority and DSCP priority, Bandwidth control, Storm control, Rate limit
DHCP DHCP client
Maintenance Backup and restore, system reboot, factory reset, firmware upgrade, monitoring including port statistics, port mirroring, cable test and loop prevention, ping and pong watchdog
Security Storm control, Port VLAN isolation, Filtering MAC adress, Kensington Security Slot (Kensington Lock) support
Mounting Desktop/Wall-mount
LED Indicators Per Port: Link/Activity - Green, Per Device: Power - Green
Environmental Operating Temperature: 0 to 40 °C (32 to 104 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing
Dimensions (LxWxH) Unit: 164 x 80 x 30mm Package: 202 x 166 x 54mm
Enclosure Plastic
Weight Unit: 0.17kg Entire Package: 0.38kg
Compliance FCC, CE, RCM, IC
