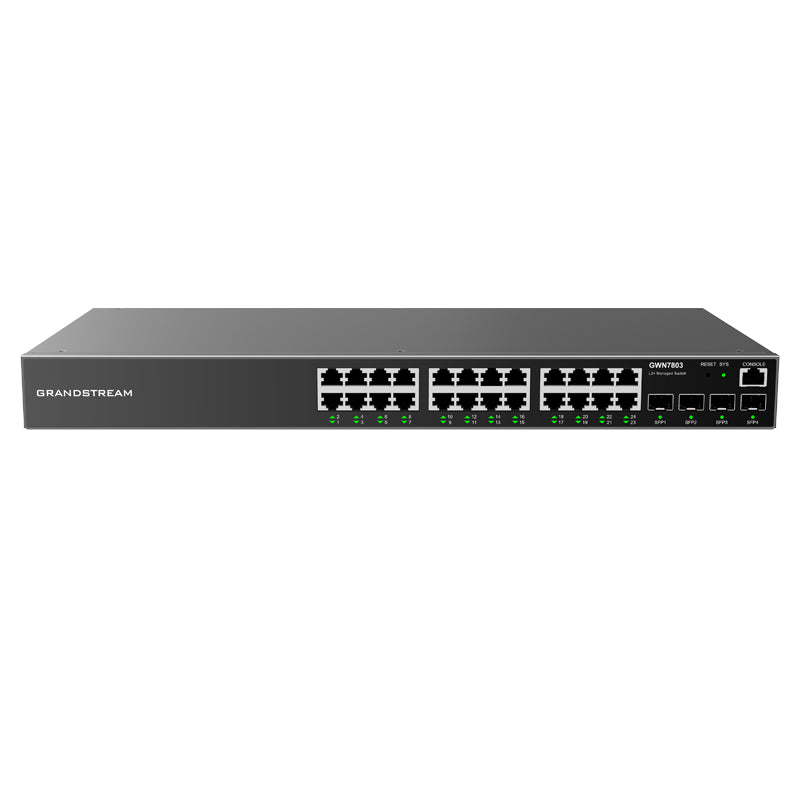

Grandstream Networks GWN7803 - Grandstream GWN7803 24 Port Gigabit Managed Ethernet Switch

GWN7803

Grandstream Networks GWN7803 - Grandstream GWN7803 24 Port Gigabit Managed Ethernet Switch

Grandstream GWN7803 Pro Enterprise Layer 2+ Managed Network Switch, 24 x GigE, 2 x SFP+. The GWN7800 Pro Series includes layer 2++ managed network switches that allow small-to-medium enterprises to build scalable, secure, and high-performance business networks that are fully manageable.

This Series provides high-speed SFP+ ports and Gigabit Ethernet ports to support demanding business networks and offer switching capabilities up to 216 Gbps. The GWN7800 Pro Series includes an advanced VLAN for flexible and sophisticated network traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

The GWN7800 Pro Series supports a variety of free and flexible management options, including cloud management with GDMS Networking, on-premise software management with GWN Manager, the embedded controller in their web user interface, GWN Series Routers, and command-line interface (CLI). By providing high-speed SFP and SFP+ ports, advanced control and segmentation of network traffic, powerful security protection, and flexible management options, the GWN7800 Pro Series is ideal for small to medium enterprises.

Details
Product Code	GWN7803-Pro
Gigabit Ethernet Ports	24
SFP/SFP+ Ports	2x SFP+
Maximum Amount of Supported Modules	SM-10G: 2, MM-10G: 2, RJ45-10G: 2
MGMT Ports	1x Console port
Auxiliary Ports	1x Reset Pinhole
System LEDs	1x tri-color LED for device tracking and status indication
Power Supply LEDs	2 x green-colour LEDs for per power supply PWR&RPS
Data Transferring LEDs	26x green-color LEDs
Flash	32MB Nor Flash
RAM	256MB RAM
CPU	Single-core, MIPS interAptiveTM 1GHz
Forwarding Mode	Store-and-forward
Total non-blocking throughput	44Gbps
Switching Capability	88Gbps
Forwarding Rate	65.742Mpps
Packet Buffer	8.4Mb
Network Latency	<4µs
Power Supply	100-240V~ 50/60Hz
Redundant Power Supply	1+1 External RPS, One by default
External Redundant Power Supply RPS	30W
Max Power Consumption	21.4W
Max Output Power	21.4W
PoE Standards	None
Number of PoE Ports	None
Max Output Power per PoE Port	NIL
Max Total PoE Output Power	NIL
Network Protocol	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x
Stacking	No
Switching	Jumbo frame (maximum length: 12288), 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, QinQ, MAC-based VLAN, Protocol-based VLAN, Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI, GVRP(pending), ERPS(pending), Spanning tree, support STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances for MSTP/PVST(+)/RPVST(+), 16K MAC addresses including static, dynamic and filtering MAC address, Link aggregation, including static and LACP, Up to max 8 LAG groups and up to 8 members per LAG group
IP Service	DHCP client, DHCP server, DHCP relay and DHCP snooping, • DHCPv6 client and DHCPv6 snooping, ND snooping, DNS, 64 ARP/NDP, including static and dynamic ARP/NDP, dynamic ARP/NDP, 16 VLAN virtual interfaces with 9216 MTU
Unit Dimension	440mm(L) × 300mm(W) × 44mm(H)
Unit Weight	2.5kg
Mounting	Desktop, or Rack-Mount (rack-mounting kits included)
Temperature	Operation 0°C to 45°C, Storage: -10°C to 60°C
Humdity	Operation 10% to 90% RH(Non-condensing), Storage: 5% to 95% RH(Non-condensing)
MTBF	70,000H
Fan	None
CPU Monitoring	Montioring CPU usage, over-CPU usage alarming
Memory Usage	Monitoring memery usage, over-memory usage alarming
Power Supply Monitoring	Monitoring of power supply model and status, Power supply failure alarming
Fan Monitoring	Automatic speed adjustment, Fan failure alarming
Temperature Monitoring	Temperature monitoring, over-temperature alarming
Management Platform	Local Web GUI: embedded controller, GDMS Networking: free cloud management platform for unlimited GWN7800 Pro series switches, GWN Manager: premise-based software controller, GWN APP: integrated GDMS Networking and GWN Manager to manage GWN7800 Pro series switches via the APP, Management Protocol: SNMP, RMON, TR-069 (pending)
Surge Protection	± 6KV CM for power, ± 4KV CM for network ports
ESD	± 12KV for contact discharge
Compliance	FCC, CE, RCM, IC
