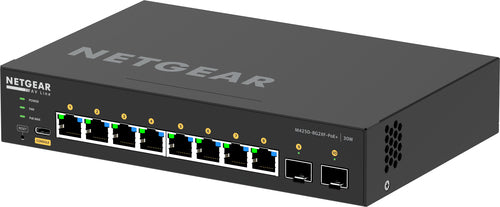

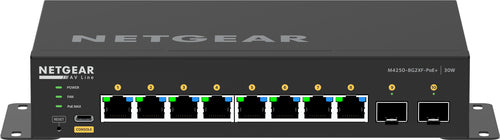

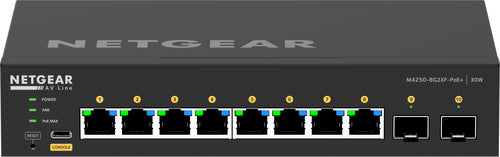

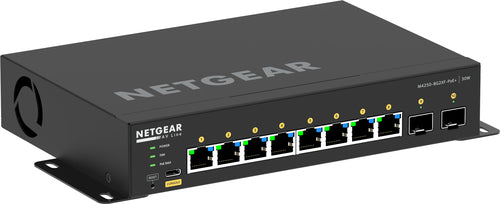

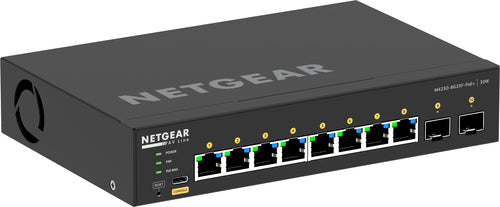

GSM4210PX-100AUS - NETGEAR GSM4210PX-100AUS M4250-8G2XF-POE+ DESKTOP MANAGED SWITCH 8X1G POE+ 220W AND 2X10G SFP+ AV LINE (GSM4210PX)
GSM4210PX-100AUS - NETGEAR GSM4210PX-100AUS M4250-8G2XF-POE+ DESKTOP MANAGED SWITCH 8X1G POE+ 220W AND 2X10G SFP+ AV LINE (GSM4210PX)
Overview
Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Technical Specifications
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x |
| Full duplex | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| Virtual LAN features | MAC address-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| Switching capacity | 24 |
| MAC address table | 16000 |
| Store-and-forward | Y |
| DHCP features | DHCP Option 82,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 relay,DHCPv6 server,DHCPv6 snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS |
| Multicast support | Y |
| IPv4 multicast entries | 2000 |
| Rack mounting | Y |
| Product colour | Black |
| LED indicators | PoE,Power,Status |
| Built-in processor | Y |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1250 |
| Internal memory | 2048 |
| Noise level | 30.06 |
| Power source | DC |
| Power supply included | Y |
| AC input voltage | 200 - 240 |
| AC input frequency | 50 - 60 |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 220 |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 70 |
| Operating relative humidity (H-H) | 0 - 90 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 3000 |
| Heat dissipation | 559.555 |
| Width | 210 |
| Depth | 140 |
| Height | 40 |
| Weight | 967 |
| User guide | Y |
| Manual | Y |
