NETGEAR

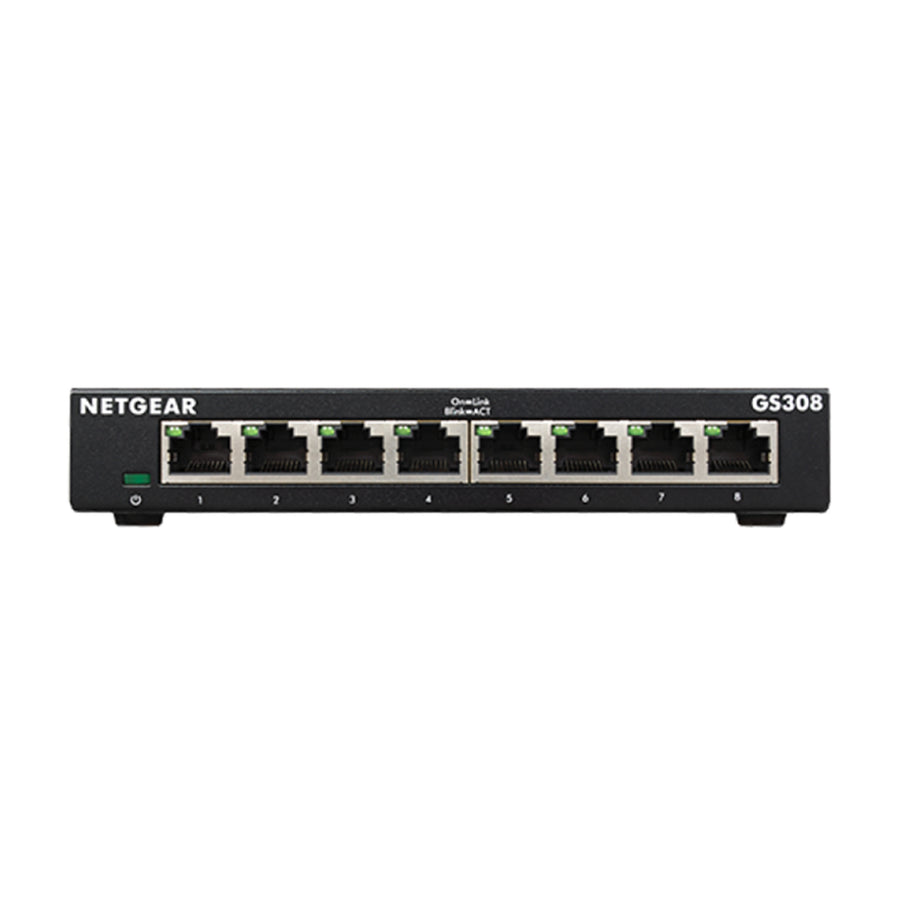

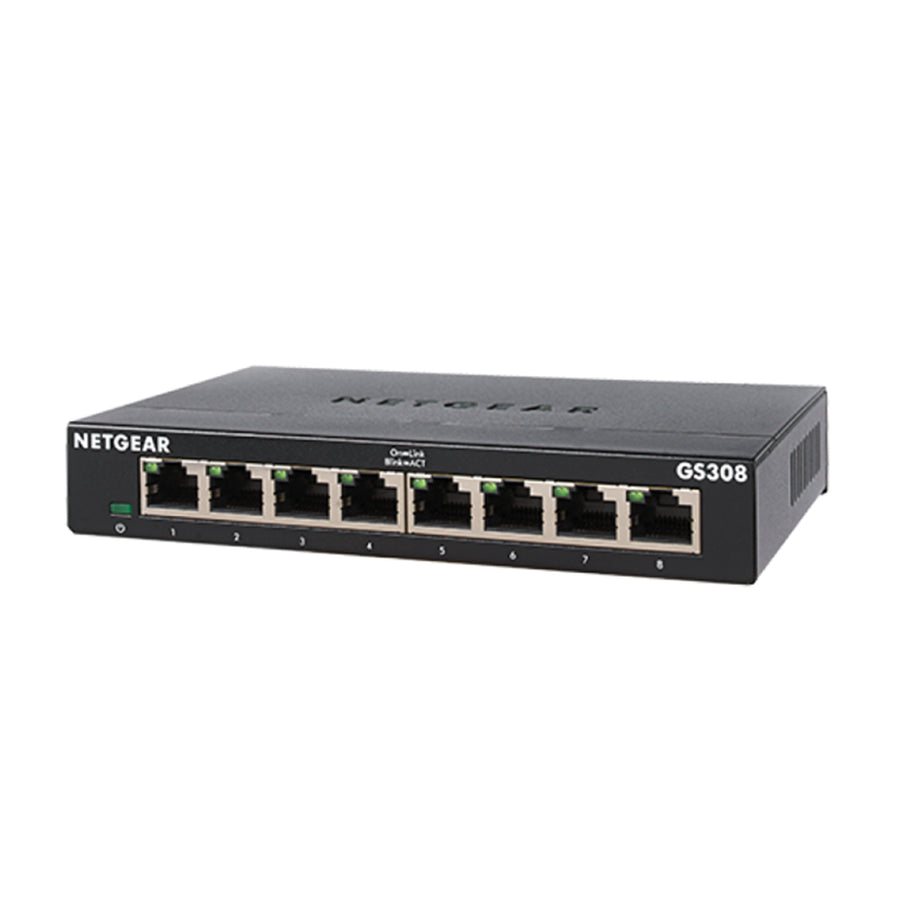

NETGEAR GS308 8-Port Gigabit Unmanaged Switch - 1GbE x8

SKU: GS308-300AUS ● In Stock
$72.22 $74.64
Free shipping over $299 Genuine product 7-day returns

Features

Expanding Wired Connectivity for SOHO Networks

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices.

With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

Highlights

- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation (except GS348)
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Desktop or wall-mountable (5, 8, 16-port models); GS324 is desktop, wall-mountable, and rack-mountable (rack-mount kit included); GS348 is rackmountable (rack-mount kit included)
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standardsbased devices in the existing network

Example Application - SMALL OFFICE/HOME OFFICE NETWORK DIAGRAM





Download data sheet: https://www.netgear.com/media/300-Series-Unmanaged_tcm148-89226.pdf

Specifications

Technical Specifications

10/100/1000Mbps Ports (Auto Uplink) 8
Enclosure Metal
Connector Type Metal
Form Factor Desktop or wall-mountable
Power On/Off Switch Yes
Bandwidth (Non-Blocking) 16 Gbps
Packet Buffer Memory (Dynamically shared across only used ports) 128 KB
Jumbo Frame Support 9,216 bytes
Queue WRR (Weighted Round Robin) Ratio 1:2:4:8
Forwarding Rate (using 64-byte packets) - 1000Mbps Port 1,448,000 pps
Latency (using 64-byte packets) - 1000Mbps Port (average) < 2.6 µsec
MAC Address Table Size 8K
Auto MDI/MDI-X Cable Detection Yes
Auto-sensing Half/Full Duplex Switched Ports Yes
Mean Time Between Failures (MTBF) @ 25° C 3,711,898 hours
Per port Link/Activity
Per device Power
Energy Efficient Ethernet (IEEE 802.3az) Yes
Auto Power Down Yes
DC Input/Power In 12V / 0.7A
Power Consumption (Max and Standby) 3.04W/0.36W
Heat Dissipation (Max and Standby) (BTU/Hr) 10.40 BTU/1.06 BTU
Width x Depth x Height 158 x 101 x 29 mm(6.2 x 4.0 x 1.1 in)
Weight 0.39 kg(0.86 lb)
Operating temperature 0° to 40°C (32° to 104°F)
Humidity (relative) 90% maximum relative humidity (RH), non-condensing
Altitude 10,000 ft (3,000 m) maximum
Storage temperature -20° to 70°C (- 4° to 158°F)
Humidity (relative) 95% maximum relative humidity (RH), non-condensing
