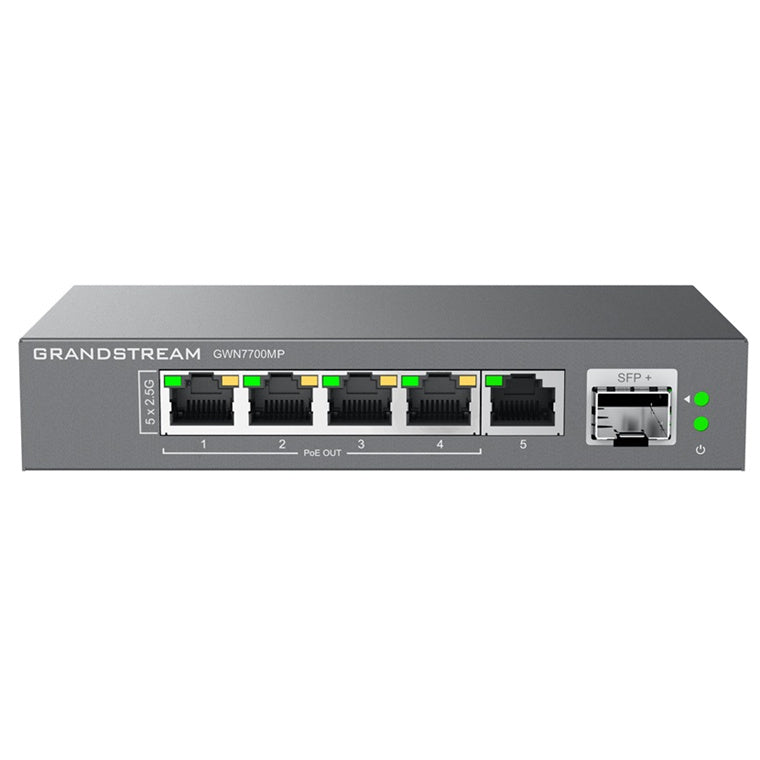

GWN7700MP - Grandstream GWN7700MP Unmanaged 2.5 MultiGigabit Switch with 5 x 2.5 GigE (4 x PoE), 1 x SFP+
GWN7700MP - Grandstream GWN7700MP Unmanaged 2.5 MultiGigabit Switch with 5 x 2.5 GigE (4 x PoE), 1 x SFP+
Features
The Grandstream GWN7700MP is an unmanaged 2.5 Multi-Gigabit switch featuring 5 x 2.5 GigE ports (4 of which support PoE) and 1 x SFP+ port. Part of the GWN7700M series, these switches are designed to deliver high-speed network connectivity up to 2.5Gbps, making them ideal for home offices and small-to-medium businesses. The series includes 6- and 9-port models that support fast Ethernet, 1-Gigabit, and 2.5-Gigabit network speeds, along with 1 SFP+ fiber port offering 1-Gigabit or 10-Gigabit uplink connectivity for flexible and powerful network expansion.
The GWN7700M, GWN770MP, and GWN77001M switches require no configuration or installation and are both desktop and wall-mountable for convenience. They feature auto MDI/MDIX, eliminating the need for crossover cables, and support auto negotiation on each port to automatically recognize and adjust to the speeds of connected devices (100/1000/2500Mbps) for compatibility and optimal performance.
Additionally, the GWN7700MP offers smart dynamic PoE output with IEEE 802.3af/at compliance, allowing it to power devices like IP phones, IP cameras, Wi-Fi access points, and other PoE-enabled endpoints. With plug-and-play simplicity, the GWN7700M series provides an easy and efficient solution for high-speed, multi-Gigabit connectivity in home office and SMB environments.
- 5 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
- One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- Whisper Quiet: fanless
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Green technology reduces power consumption
- QoS - Supports Default Strict Priority when present
Specifications
Technical Specifications
| 2.5 Gigabit Ports | 5 |
|---|---|
| PoE Ports | 4 |
| Enclosure | Metal |
| Mounting | Desktop/ Wall-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3af, IEEE 802.3at |
| Port Features | 5× 100/1000/2500Mbps RJ45 Ports1× SFP+ Fiber PortAUTO NegotiationAUTO MDI/MDIX |
| Network Media | 2.5GBase-T / 1000Base-T / 100Base-TX / 10 Base-Te, Half/Full-Duplex |
| PoE Ports | 1 - 4 Ports 802.3 af/at compliant; Up to 30 W on Each Port, Total 57W Power Budget; Overload to cut off the lowest priority port; Priority: Port 4 to Port 1 |
| LED Indicators | Per port: Link/Activity GreenPer device: Power GreenPort1~4: PoE output - Yellow |
| Mac Address Table | 4K |
| Switching Capacity | 45Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-AgingIEEE 802.3x Flow ControlIEEE 802.3az (Energy Efficient Ethernet)802.1p/DSCP QoSIGMP: IGMP Fast-Leave; IGMP Snoop; Route Port Autolearn; Query Refresh Member Port |
| Power Adapter | External 53.5V/1.22A |
| Max Power Consumption by Base System | 7.2W |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F)Storage Temperature: -20 to 60 °C (-4 to 140 °F)Operating Humidity: 10% to 90% Non-condensingStorage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | 145 x 80 x 27mm |
| Weight | 0.31g |
| Compliance | FCC, CE, RCM, IC |
