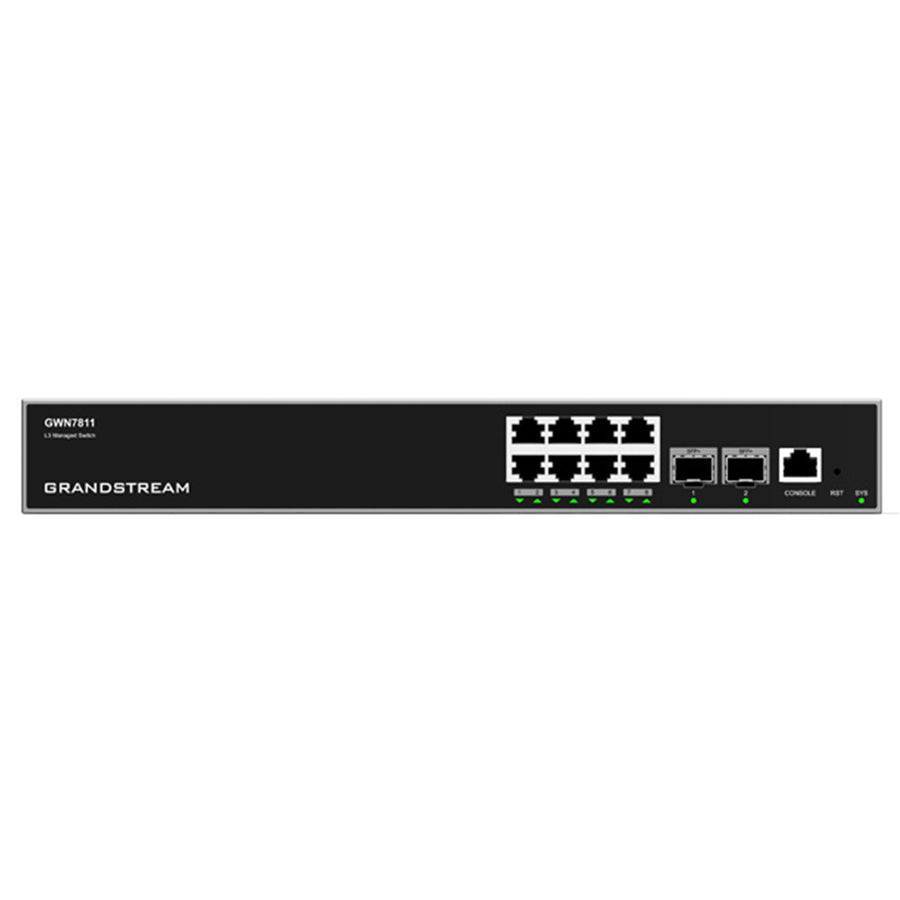

GWN7811 - Grandstream GWN7811 Enterprise Layer 3 Managed Network Switch with 8 x GigE and 2 x SFP+

SKU: GWN7811 ● In Stock
$216.31
Free shipping over $299 Genuine product 7-day returns

GWN7811 - Grandstream GWN7811 Enterprise Layer 3 Managed Network Switch with 8 x GigE and 2 x SFP+

Features

Grandstream GWN7811 Enterprise Layer 3 Managed Network Switch

The GWN7810 series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints.

GWN7810 series can be managed in a number of ways, including the local Web user interface of the GWN7810 series switch and CLI, the command-line interface. The series is also supported by GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise network management platform. The GWN7810 series are the best value enterprise-grade managed network switches for medium-to-large businesses.

- 8 Gigabit Ethernet ports and 2 x 10 Gigabit SFP+ ports
- Supports deployment in IPv6 and IPv4 networks
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise network management platform
- Built-in QoS allows for prioritization of network traffic

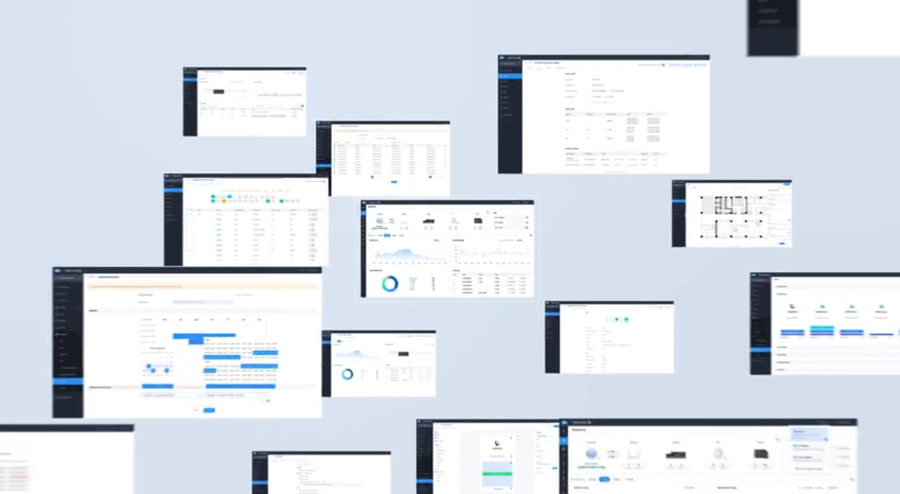

Free, Centralized Cloud Management

Deploy and manage the GWN7810 Series, and all Grandstream solutions, centrally from the cloud using the free Grandstream Device Management System (GDMS).

Specifications

Technical Specifications

Model No. GWN7811
POE Supported No
Network Protocol IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x
Gigabit Ethernet Ports 8
10Gigabit SFP+ Ports 2, Note: Supports DAC cable, and must be = 5m
Maximum no. of Supported Modules SM-10G: 2, MM-10G: 2, RJ45-10G: 2, Note: RJ45-10G modules must be interval inserted
Console 1
Link Aggregation 5
Auxiliary Ports 1x Reset Pinhole
Forwarding Mode Store-and-forward
Total non-blocking throughput 28Gbps
Switching Capability 56Gbps
Forwarding Rate 41.644Mpps
Packet Buffer 12MB
Mounting Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
System LEDs 1x tri-color LED for device tracking and status indication
Data Transferring LEDs 10 x green-color LEDs
Fans 0
Environmental Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing), Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing)
Dimensions 330mm(L)x176mm(W) x44mm(H)
Unit Weight 1.45Kg
Compliance FCC, CE, RCM, IC, UKCA
