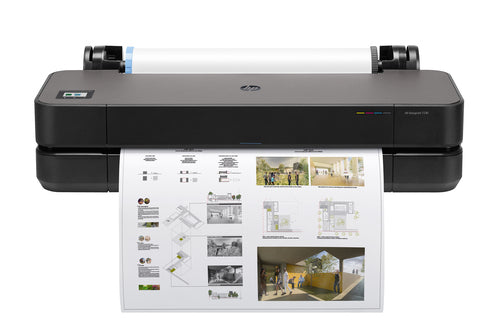

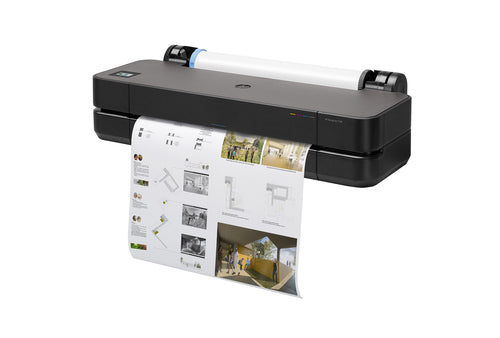

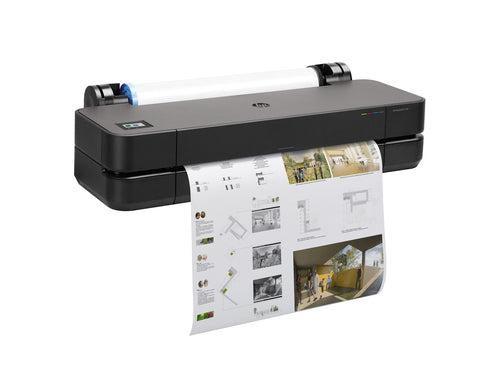

5HB07D - HP DesignJet T230 24-in Printer
Features
HP DesignJet T230 24 Inch A1 Network Wireless Large Format Inkjet Printer
Designed to fit your office, budget, and the way you work, the world's smallest plotters provide outstanding simplicity. Send multiple files in just one click. Print your A1/D plot as fast as 35 seconds.
Extreme simplicity
- Save time with the world's easiest job submission-send multiple files in one click with HP Click software.
- Print with confidence you'll get the results you expect with an intuitive driver and true print preview.
Fits the way you work
- Avoid waiting by the printer with high-speed printing as fast as 35 seconds per A1/D plot.
- Be more productive-save time from job prep to final print by printing your projects up to 2x faster.
- Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.
Fits your office and budget
- Save space with the world's smallest plotters designed to fit your office.
- Use up to 95% less ink for routine maintenance vs competitor and get up to 100 extra A1/D pages per month.
- More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic.
Note on Toner Yields:
Toner cartridge yields are provided as approximate values based on ISO/IEC standard testing methods.
Actual yield may vary depending on usage, print content, and other environmental factors.
In-box toner is typically a starter cartridge and may yield fewer pages than replacement cartridges.
Redeem your HP Cashback (If applicable)
To redeem any HP cashback that may be applicable to your printer purchase (cash back offers and valid dates are shown in the product title) click here
Specifications
Technical Specifications
| Functions | |
|---|---|
| Model size | 610 mm |
| Print speed | 35 sec/page on A1, 68 A1 prints per hour |
| Print technology | HP Thermal Inkjet |
| Printer drivers included | Raster driver for Windows and macOS |
| Print quality colour (best) | Up to 2400 x 1200 optimized dpi |
| Print languages | JPEG, URF |
| Number of print cartridges | 4 (C, M, Y, K) |
| Ink types | Dye-based (C, M, Y); pigment-based (K) |
| Line accuracy | ±0.1%[3] |
| Maximum optical density (black) | 8 L* min/2.10 D |
| Connectivity, standard | Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n |
| Memory | 512 MB |
| Internal Storage | None |
| Finished output handling | Sheet feed, roll feed, automatic horizontal cutter |
| Media sizes standard (metric rolls) | 279 to 610 mm |
| Media sizes, custom | 210 x 279 to 610 x 1897 mm |
| Media types | Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semi-gloss, polypropylene), self-adhesive (adhesive, polypropylene)Media weight, recommended: 60 to 280 g/m² |
| Roll external diameter | 100 mm |
| Media thickness | Up to 11.8 mil |
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max |
| Power consumption | < 35 W (printing), < 5.6 W (ready), < 2.1 W (sleep), < 0.2 W (standby) |
| Energy star certified | Yes |
| Operating temperature range | 5 to 40ºC |
| Minimum dimensions (W x D x H) | 1013 x 440 x 285 mm |
| Weight | 21.5 kg |
| Package Contents | HP DesignJet T230 24-in PrinterPrintheadIntroductory ink cartridgesSpindleQuick reference guideSetup posterPower cord |
| Brand | HP |
|---|---|
| Product Type | Printers & Office > Printers > Inkjet Printers |
| Weight | 1.361 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
