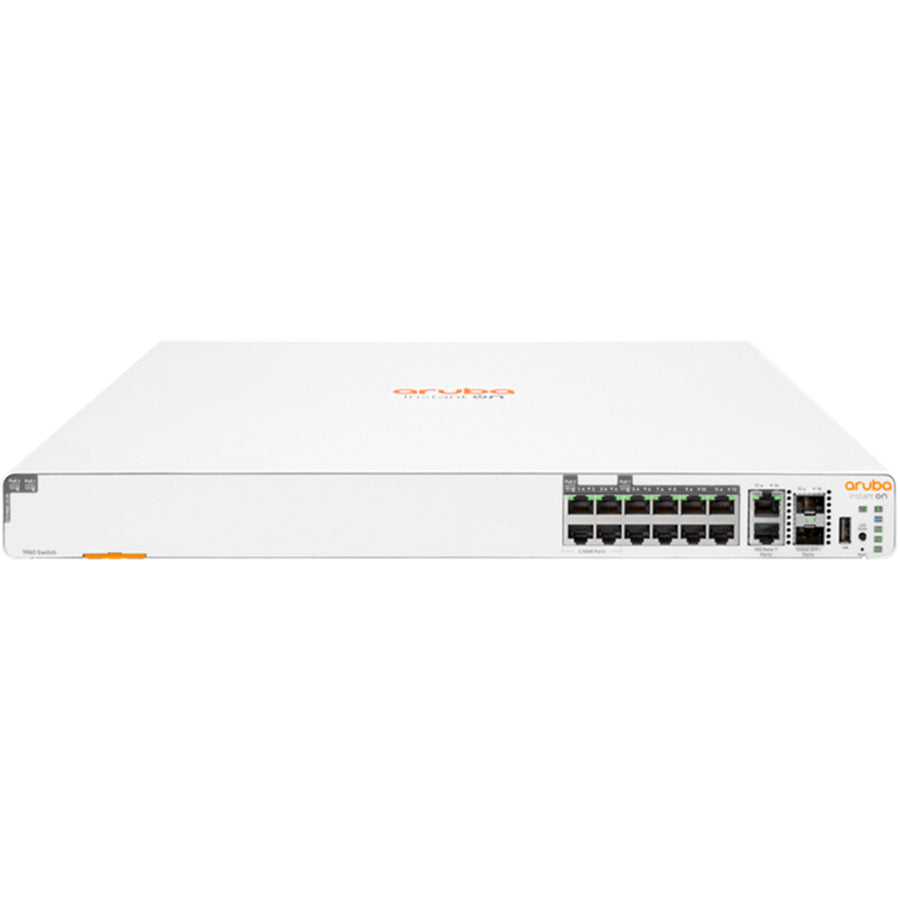

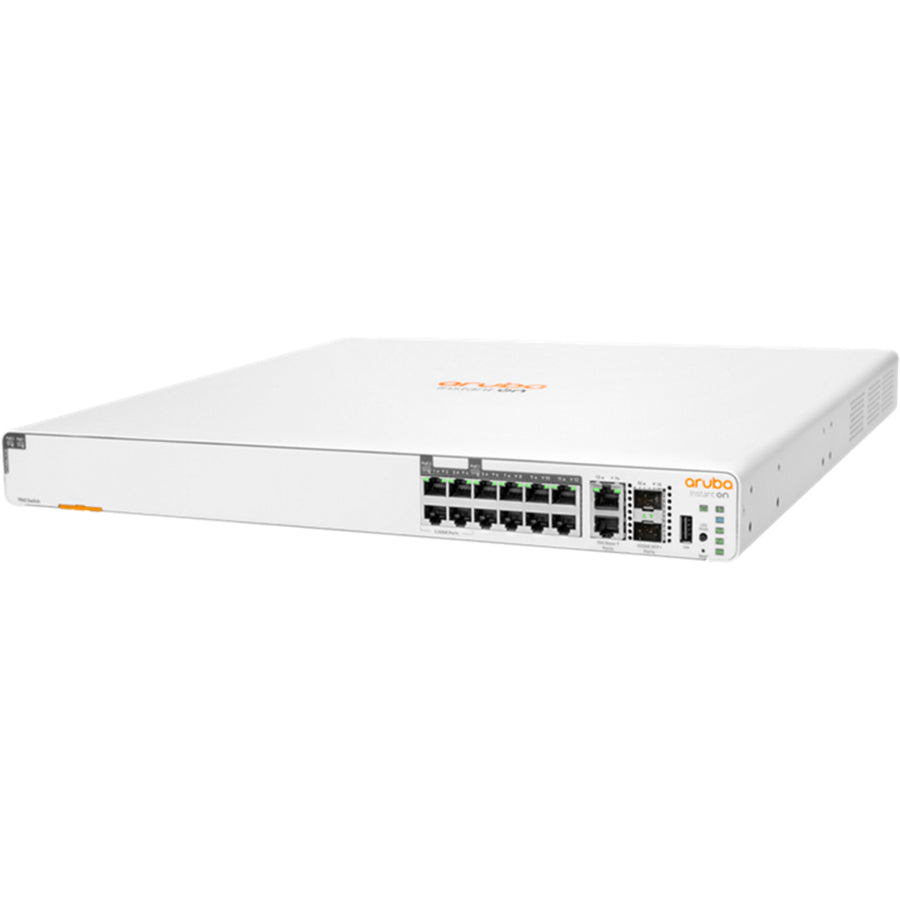

HPE Instant On 1960 S0F35A 12-Port Multi-gigabit Smart Managed Layer 2+ Stackable Switch with 2 x SFP+, 2 x 10G RJ45, 8 x 802.3af/at PoE Port, 4 x 2.5G 802.3bt PoE Port (Max 480W)
Features
HIGH PERFORMANCE, STACKABLE SWITCHES
Switches simplify the deployment of wired devices like surveillance cameras and wireless access points by allowing you to connect and power network endpoints over a single Ethernet cable, without having to install separate power supplies. Because network performance is critical to small business success, you need a simple networking solution that offers blazing fast, secure connections at a price that won't break the bank.
The Aruba Instant On 1960 Switch Series empowers you to do more. Affordable and easy-to-deploy, these smart-managed, stackable Gigabit switches with 10-gigabit connectivity deliver maximum throughput in small business networks for demanding tasks such as data storage, video on-demand and high-bandwidth processing. Stacking and advanced switching features protect your IT investment by ensuring your network is ready for the next generation of applications and devices.
SET UP YOUR SWITCH IN MINUTES
Get step-by-step guidance via the Aruba Instant On mobile app
MANAGE IT ANYTIME, ANYWHERE
Monitor and manage performance with the Aruba Instant On mobile app or cloud-based web portal
CONNECT AND POWER HIGH-BANDWIDTH DEVICES THROUGH ONE CABLE
Save time and money and get the flexibility you crave with Power over Ethernet (Class 4 and Class 6 PoE) technology
SECURE YOUR DATA AND INFORMATION
Keep your business safe with ever-evolving security measures and protocols
STACK UP TO FOUR SWITCHES
Stackable switches allow you to scale as your business grows. Auto failover creates a safety net so that if one switch in the stack fails, all other switches will be intact.
Specifications
Technical Specifications
| I/O ports and slots | 4 RJ-45 autosensing 1G/2.5GBASE-T ports with IEEE 802.af/at/bt CL6 PoE8 RJ-45 autosensing 10/100/1000BASE-T ports with IEEE 802.af/at CL4 PoE(IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3bz Type 2.5GBase-T, IEEE 802.an 10GBASE-T);Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only2 SFP+ 10GbE ports2 RJ-45 autosensing 100/1000/10GBASE-T ports |
|---|---|
| Dimensions | 1.73 x 17.44 x 13.78 in(4.39 x 44.3 x 35 cm) |
| Weight | 11.55lb (5.24kg) |
| Processor and Memory | Single-Core ARM v7 Cortex-A9 @800MHz1GB DDR3; 512MB NAND flash; Packet buffer size: 1.5 MB |
| 100 Mb Latency | < 4.1 uSec |
| 1000 Mb Latency | < 1.8 uSec |
| 2.5G Latency | < 6.7 uSec |
| 10G Latency | < 2.8 uSec |
| Throughput (Mpps) | 172 Mpps |
| Maximum Stacking Capacity | 80 Gbps |
| Maximum Standalone Switching Capacity | 116 Gbs |
| Routing Table size (# of static entries) | 992 |
| MAC Address table size (# of entries) | 16,000 entries |
| Reliability MTBF (years) | 40.8 |
| Operating temperature | 0-40°C, 0-10,000 ft |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Altitude | up to 10,000 ft (3 km) |
| Acoustics | LWAd = 3.4 Bel |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-127VAC / 200-240VAC |
| Current | 6.4A/3.0A |
| Maximum power rating | 100-127V: 635W200-220V: 623W |
| Idle power | 100-127V: 34W200-220V: 40W |
| PoE power | 480W |
| Power Supply | Internal power supply |
| Safety | EN/IEC 62368-1, 2nd. & 3rd. Ed.UL 62368-1, 3rd. Ed.CAN/CSA C22.2 No. 62368-1, 3rd. Ed.EN/IEC 60825-1:2014Class 1 |
| Emissions | EN 55032:2015/CISPR 32, Class AFCC CFR 47 Part 15: 2020 Class AICES-003 Class AVCCI Class ACNS 15936 Class AKN 32 Class AAS/NZS CISPR 32 Class A |
| Generic | EN 55035, CISPR 35, KN35 |
| EN | EN 55035:2017, CISPR 35 |
| ESD | EN/IEC 61000-4-2 |
| Radiated | EN/IEC 61000-4-3 |
| EFT/Burst | EN/IEC 61000-4-4 |
| Surge | EN/IEC 61000-4-5 |
| Conducted | EN/IEC 61000-4-6 |
| Power frequency magnetic field | EN/IEC 61000-4-8 |
| Voltage dips and interruptions | EN/IEC 61000-4-11 |
| Harmonics | EN/IEC 61000-3-2 |
| Flicker | EN /IEC 61000-3-3 |
| Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager |
| Mounting Positions and Supported Racking | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included.Supports table-top mountingSupports rack-mountingSupports wall-mounting with ports facing either up or downSupports under-table mounting using the brackets provided |
| Brand | HPE |
|---|---|
| Product Type | Networking |
