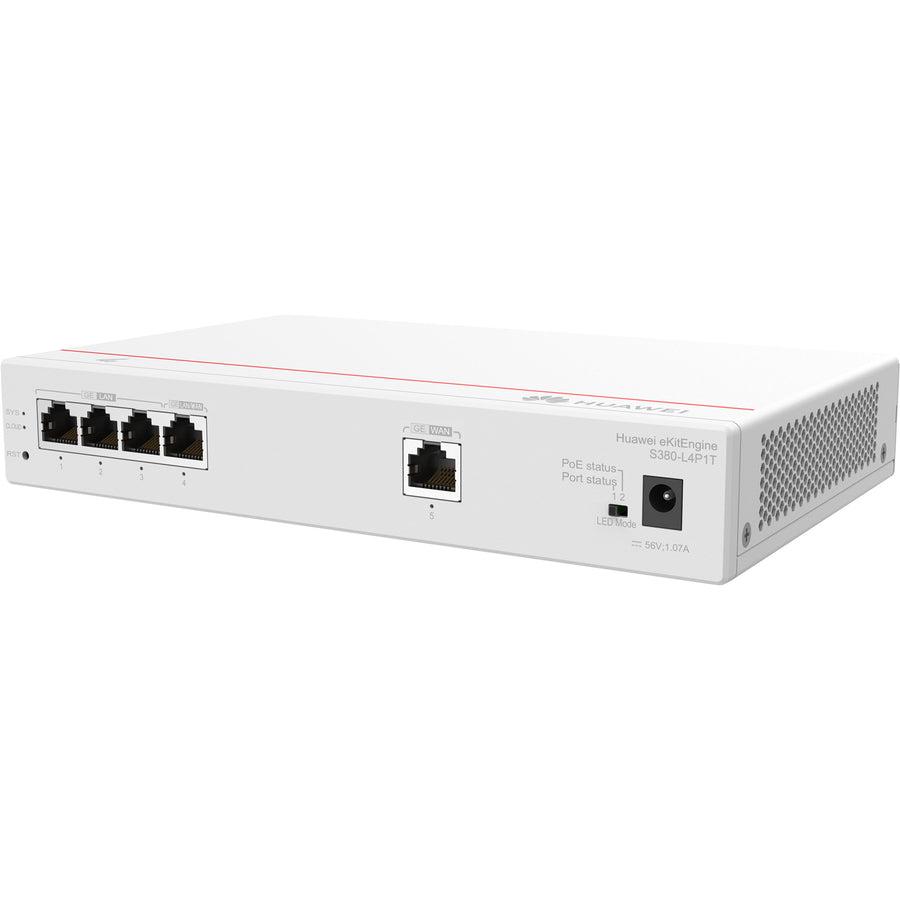

HUAWEI EKIT 98012178 - S380-L4P1T 1*GE WAN 4*GE LAN(PoE+ 50W)
HUAWEI EKIT 98012178 - S380-L4P1T 1*GE WAN 4*GE LAN(PoE+ 50W)
Features
Huawei eKitEngine S380 Series Multi-Service Gateway
Huawei eKitEngine S380 series Multi-Service Gateway include various models, such as those with 4 downlink GE electrical ports, 8 downlink GE electrical ports (PoE/non-PoE ports), or GE uplink ports. With features like easy installation and deployment, as well as flexible Ethernet networking, the products can be widely used for indoor coverage in SME markets such as SOHO enterprise office, economic hotels, factories, primary and secondary education, and building security.
Powerful: 50% larger connection capacity
Fast: 2x faster forwarding
Stable: PoE on all ports, compatible with 100+ types of non-standard terminals
Specifications
Technical Specifications
| Switching Capacity | 8Gbps |
|---|---|
| Packet forwarding rate | Upload:300 Kpps, download:420 Kpps |
| Egress bandwidth | 1Gbps |
| Maximum user | 200 |
| Managed APs | 32 |
| GE RJ45 | 5 (4 PoE+) (1G/100M/10M) |
| WAN ports | 1 x GE WAN |
| LAN ports | 4 x GE LAN (50 W PoE+) |
| PoE | Supported |
| Maximum PoE power consumption [W] | 50 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.) |
| Installation type | Desk mounting,Wall mounting |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 0.9 kg (1.98 lb) |
| Weight with packaging [kg(lb)] | 1.1 kg (2.43 lb) |
| Typical power consumption [W] | 7.19 |
| Maximum power consumption [W] | 61.65 W (PoE: 50 W) |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |

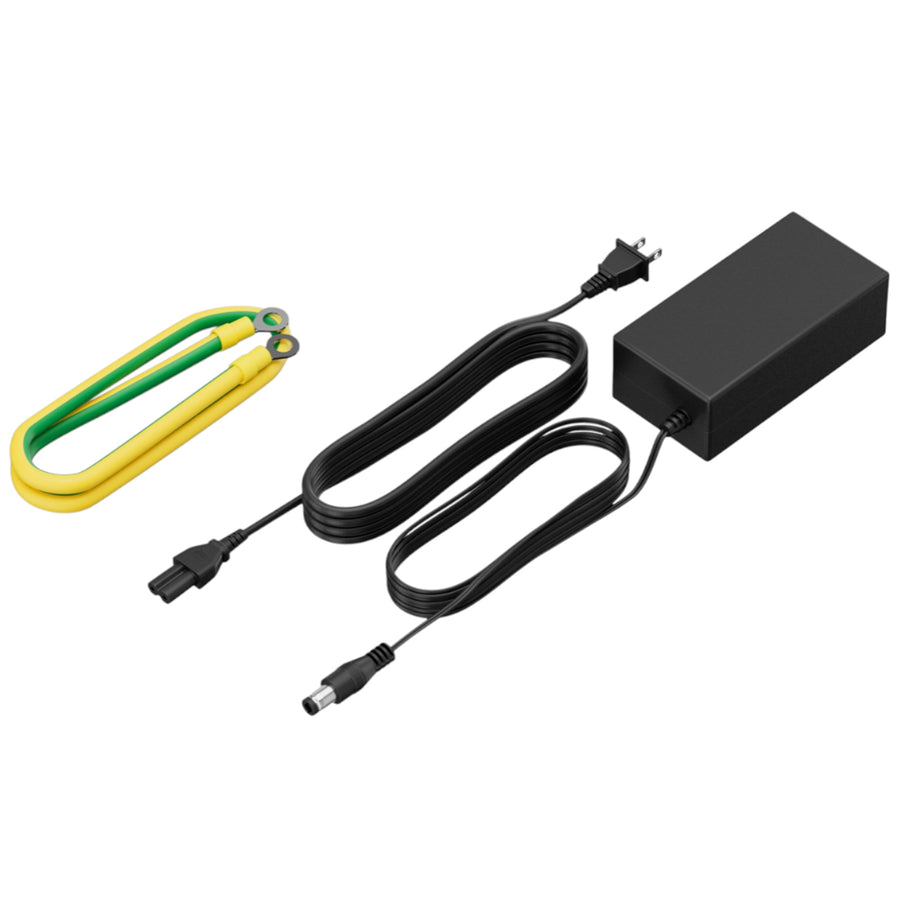

| Power supply mode | Power adapter |
| Input voltage range [V] | Power adapter input: 90-290 V AC; 47-63 Hz |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Heat dissipation mode | Natural heat dissipation |
| Certification | EMC certification Safety certification Manufacturing certification |
