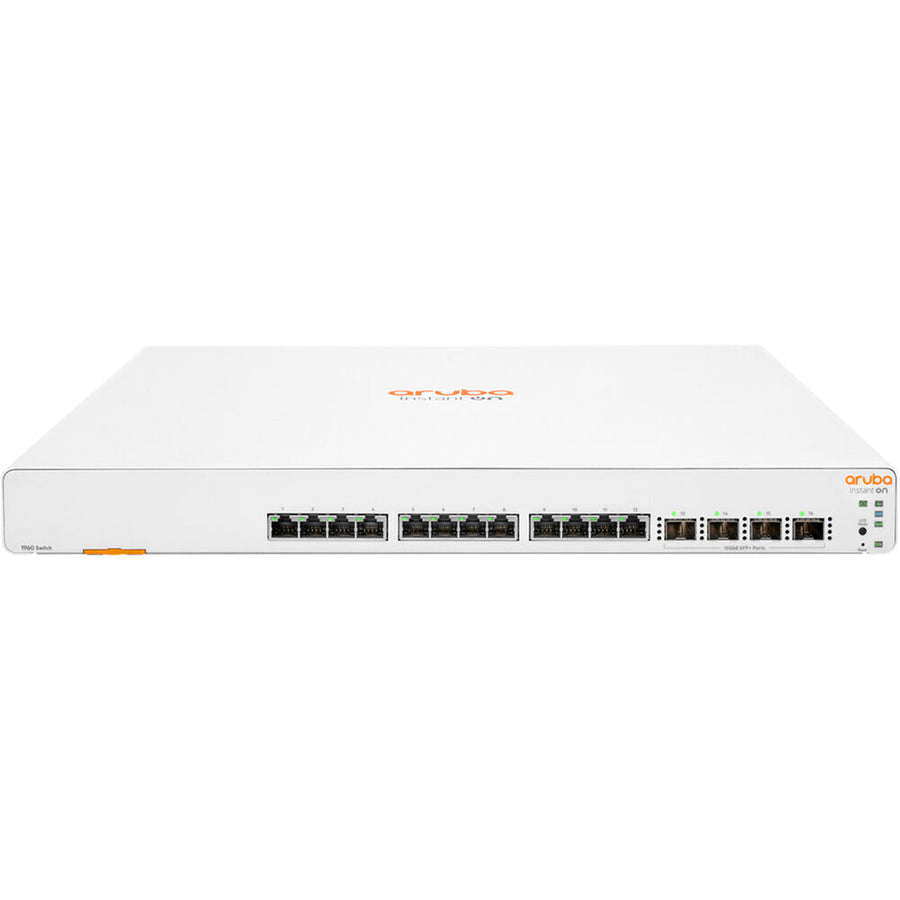

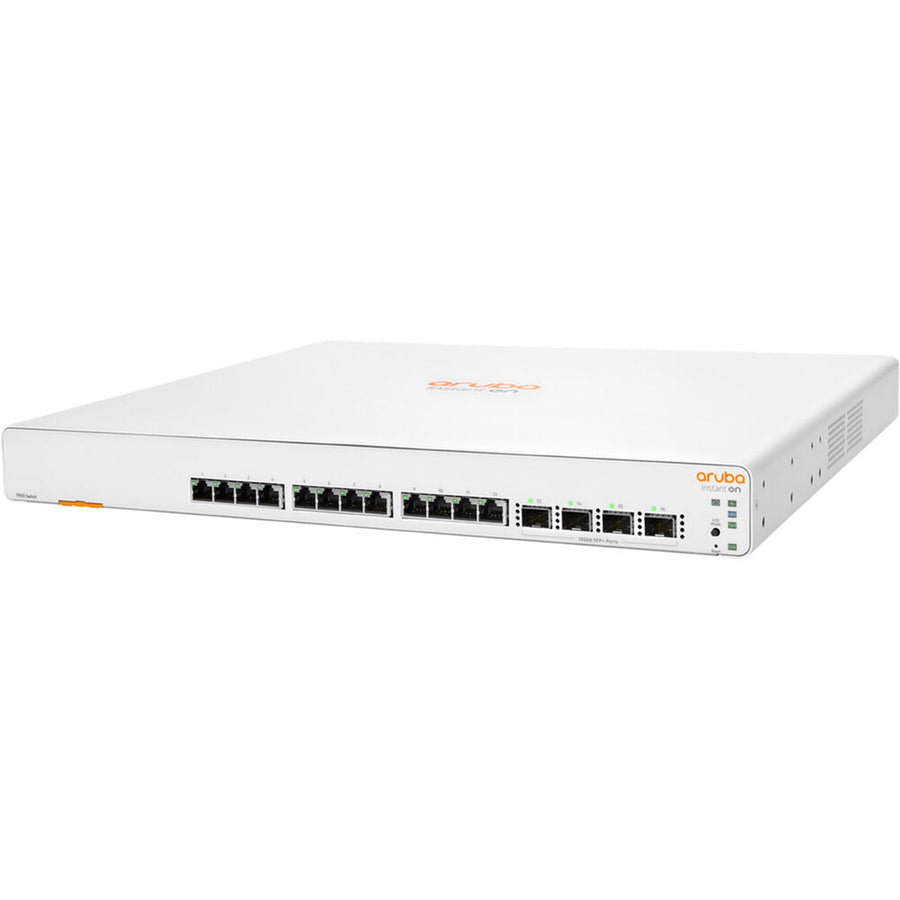

JL805A - HPE ANW Instant On 1960 12XGT 4SFP+ Switch
JL805A - HPE ANW Instant On 1960 12XGT 4SFP+ Switch
Features
Overview
The Aruba Instant On 1960 12XGT 12-Port 10G Managed Network Switch is an advanced, smart-managed, fixed configuration Gigabit stackable switch designed for small and growing businesses that are easy to deploy. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.
High-Level 10GbE Networking
The Aruba Instant On 1960 switch includes four 10GbE SFP+ connections to connect to servers, network storage devices, or to other switches.
Simplify Network Deployment and Management
The Aruba Instant On 1960 Switch series offers a complete portfolio of choices for increased small business flexibility. They can be deployed using two management modes - Instant On cloud management (access via mobile app and/or web portal) and the local web GUI.
Cloud-Managed Stacking for Ease of Use
The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy - just follow the recommendations to stack up to four Aruba Instant On 1960 switches and manage as a single entity.
Robust Security
The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users. Leverage 802.1x with a RADIUS server to ensure only known and authorized users can access your network. Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Specifications
Technical Specifications
| Ports | 12 x 10Gb Ethernet (RJ45)4 x 10Gb SFP+ (Uplink) |
|---|---|
| Layer Services Supported | Layer 2 Support |
| Supported Protocols | Auto-MDIX/MDIAuto-VoIPIGMP SnoopingIPv4IPv6Link AggregationPort MirroringRADIUSSNMPv1SNMPv2cSNMPv3 |
| MAC Address Table Size | 16K |
| Security Features | DoS Attack PreventionRADIUS Authentication |
| Static Routes | 512 |
| Supported IEEE Standards | 802.1p, 802.1q, 802.1q/p, 802.3ab, 802.3an, 802.3u, 802.3x |
| Latency | 1.1 to 7.4 µs |
| Forwarding Rate | 238 Mpps |
| Switching Bandwidth | 320 Gb/s |
| CPU | 2 GHz Cortex A9 Single-Core |
| Power Draw | 160.00 W (Max)80.00 W (Idle) |
| Current | 0.4 to 1.3 A |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 15 to 95% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 15 to 90% |
| Operating Altitude | 10,000 to ' / 3048 to m |
| Storage Altitude | 10,000 to ' / 3048 to m |
| Cooling System | Passive |
| Dimensions | 17.42 x 13.8 x 1.7" / 44.25 x 35.05 x 4.4 cm |
| Weight | 9.5 lb / 4.3 kg |
