KONKA

KONKA RLK8-410B4-5MP - 5MP Security Camera Kit with Person/Vehi

SKU: RLK8-410B4-5MP ● In Stock
$664.05
Free shipping over $299 Genuine product 7-day returns

KONKA RLK8-410B4-5MP - 5MP Security Camera Kit with Person/Vehi

Features

Super HD 5MP High Resolution

5MP RLK8-410B4 with a pixel resolution of 2560x1920, that is, nearly 2.4X the resolution of 1080p Full HD, and even 1.3X the resolution of 1440p. It sees and records your home security more clearly, with more details.

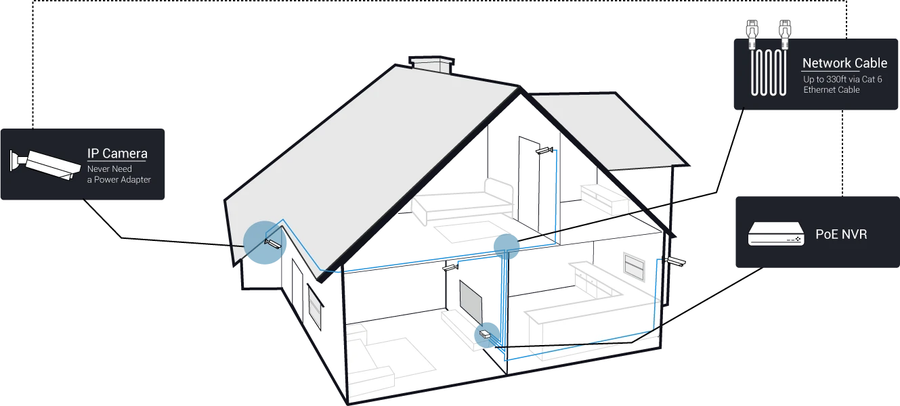

PoE - Easy Setup, Even for a Beginner

A real plug and play security system! It features PoE (Power over Ethernet), with a single network cable connecting each IP camera to the NVR for both power supply and video signal transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts and beginners.



24/7 Recording and Monitoring

-Pre-installed 2TB HDD for 24/7 recording and monitoring.
-Support all cameras recording at the same time (up to 8 cameras).
-If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.
-Allow you to install an external hard disk drive via e-SATA for more storage (up to 4TB).

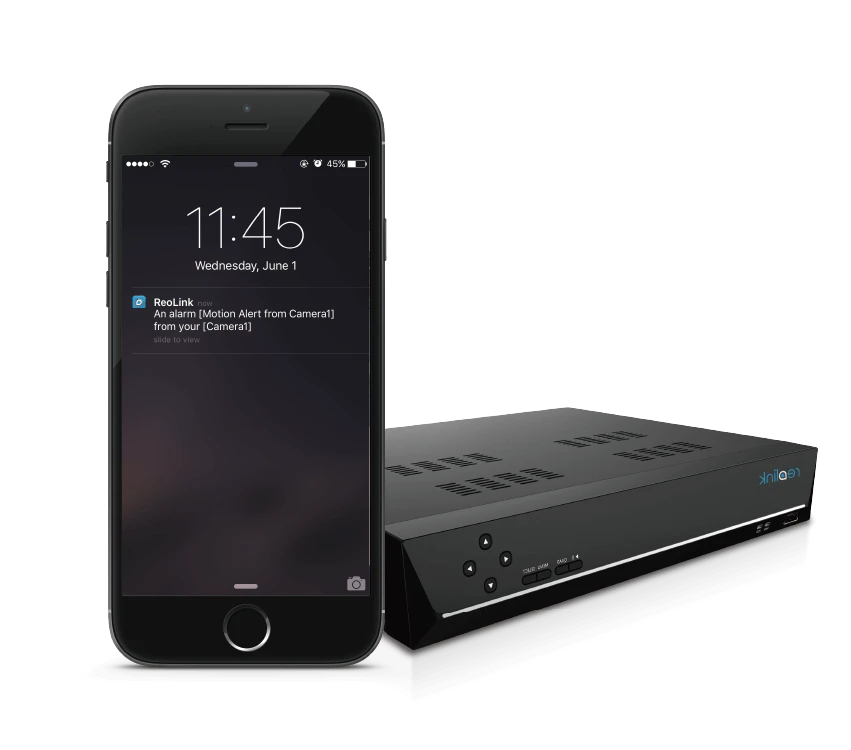

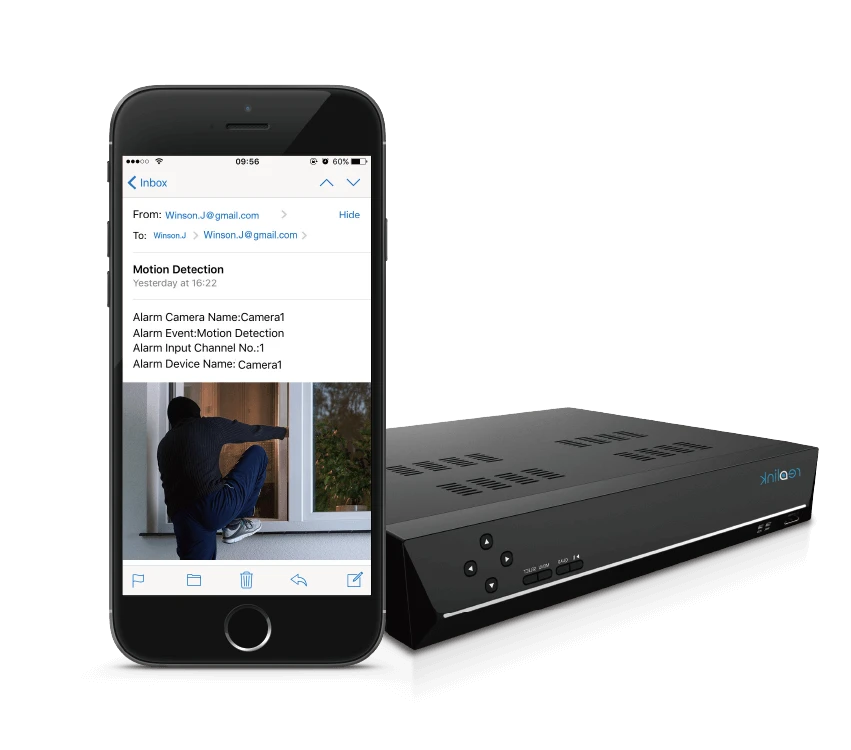

Motion Detection & Rich Alerts

RLK8-410B4 wired PoE camera security system detects moving objects and trigger alerts when dangers occur. It will inform you in real time when invasion happens:

Email
Email photos or 30-second video clips



App
Push notifications to your mobile device



FTP
Save and upload captured images & videos to an FTP server



Buzzer
The buzzer in NVR makes sound warning

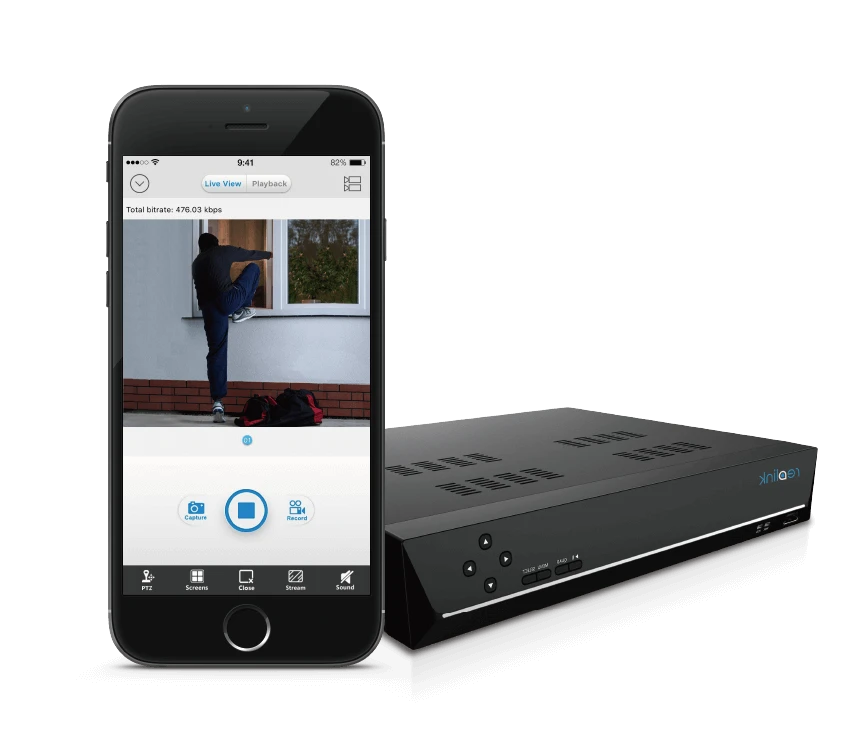

Local and Remote Access Anytime & Anywhere

For local access and control
Connect the system to a monitor or an HD TV.

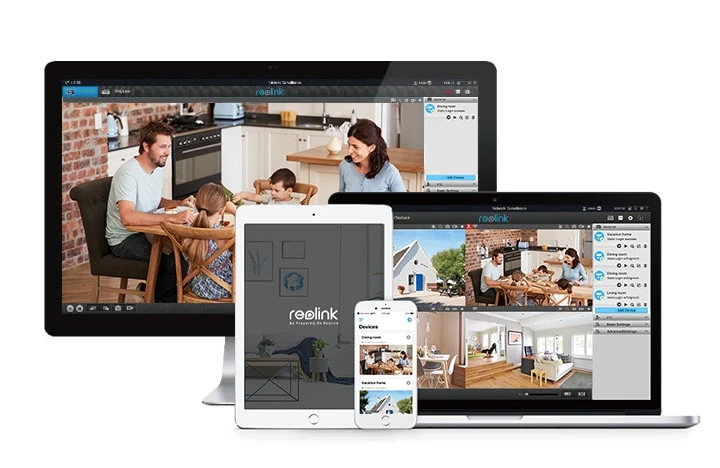

For remote access and control
Get live streaming via free Reolink App on iOS & Android devices, through free Reolink Client software on Windows pcs & Mac computers, or via web browsers.

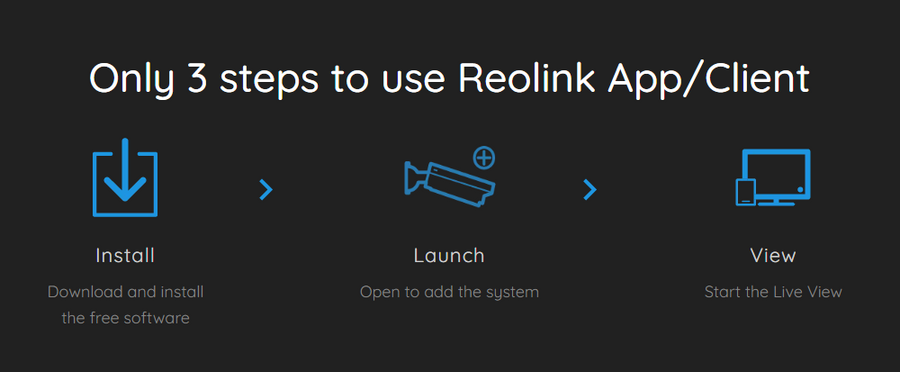

Only 3 steps to use Reolink App/Client

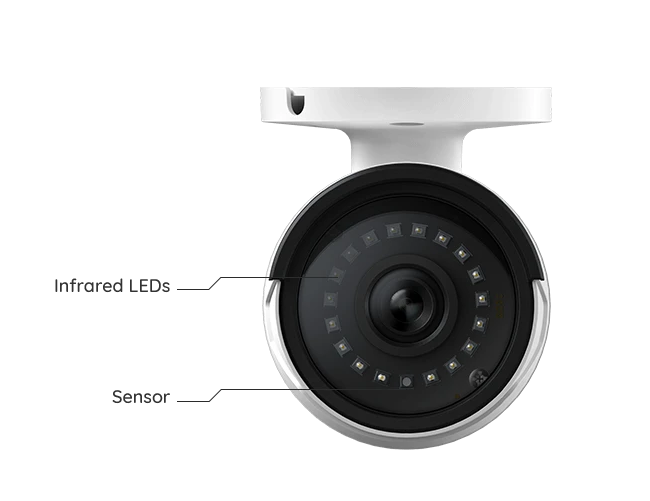

High Quality Night Vision

With plenty LED lights and improved infrared radiation for 24-hour vigilance, the 5MP/4MP cameras ensure a clear night vision, up to 100 feet long distance (depending on the environment).

- Plenty Infrared LEDs
- 100feet Night vision*
- 80° Viewing angle*

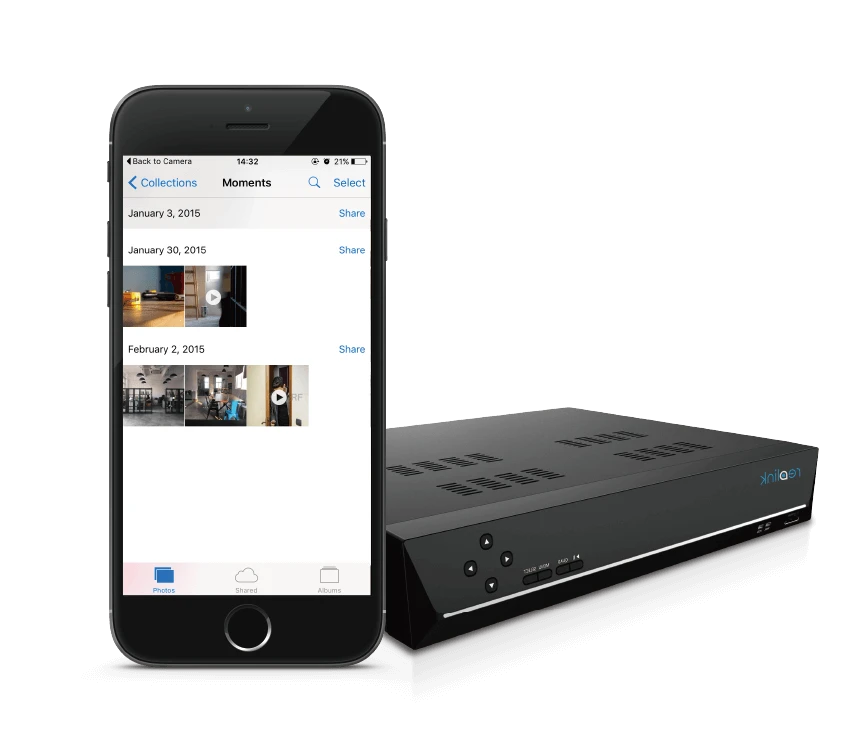

Video Playback - Recall Events and Moments

The playback feature of this Reolink RLK8-410B4 allows you to know the whole events.

-Replay significant evidence or funny video records.
-4-channel simultaneous playback.
-Quick search for any event that happened at any time.
-Freely playback any event on days, hours and even minutes with the help of timer axis under the split screen.

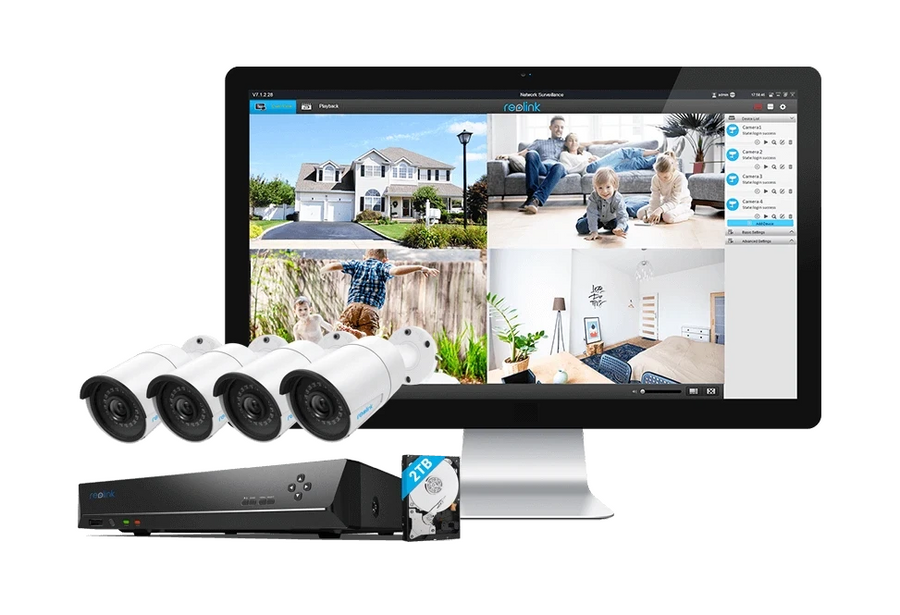

Work with Various Reolink IP Cameras

This security camera system can be expanded up to 8-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 8MP, 5MP, or 4MP - to cover every corner in your home, store or factory.

* The Reolink NVRs work with Reolink security cameras ONLY.

Quick and Easy Video Data Backup

Local backup
Prepare a USB flash drive and insert it to one of the USB ports on the NVR for local backup.

Remote backup
-Launch Reolink Client on your computer.
-Go to the page Playback -> Remote Playback.
-Download the recording files for backup.



Specifications

Technical Specifications

What's in the Box x1 RLN8-410x4 B500 (5MP)x1 NVR Power Adapterx1 HDMI Cablex1 USB Mousex1 1m Network Cablex4 18m Network Cablex1 Quick Start Guidex5 Mounting Templatex4 Surveillance Stickerx4 Waterproof Lidx5 Pack of Screwsx1 Wrench
Hardware V2
IP Video Input PoE IP camera x 8
Audio Input Cameras with built-in mic
Video Output VGA, HDMI
Display Resolution HDMI: 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768VGA: 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768
Audio output 1-channel, RCA
Video Format H.264, H.265
Live View/Playback Resolution 3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
Synchronous Playback Up to 4 channels
SATA 1 x SATA interface (1 x Seagate 2TB HDD included)
External HDD 1 eSATA interface for HDD
Capacity Up to 8TB (Max. 4TB capacity for each HDD)
USB Interface 2 x USB 2.0
Network Interface RJ45,10M/100M Ethernet, 8 Network Ports for IP camera, 1 Giga Network Port for LAN/WAN8 Independent 100 Mbps PoE Network Interfaces
Max. Power Per Port 25W
Supported Standard IEEE 802.3af/at
Network Protocols HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browsers Supported Edge, Firefox, Chrome, Safari
OS Supported PC: Windows, Mac OS; SmartPhone: iOS, Android
Max. User Access 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Power Supply DC 48V/2A
Power Consumption <10W (without HDD&PoE)
Working Environment Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%
Dimensions 260 x 41 x 230mm
Weight 1.4kg
Image Sensor 1/2.7" CMOS Sensor (B500)
Effective Pixels B500: 2560x1920(5.0 Megapixels)
Lens f=4.0 mm Fixed, F=2.0
Angle of View Horizontal: 80°, Vertical: 58°(B500); Vertical: 42°(B400)
Day/Night Mode Auto Switchover
Min. Illumination 0 Lux (With IR Illuminator)
IR Distance 30 Meters (100ft)(LED: 18pcs/14mil/850nm)
Backlight Compensation Support
Noise Reduction 3D DNR
Note The cameras of the kit cannot work without the NVR.
Compression H.264
Resolution B500: Mainstream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Substream: 640x480
Bitrate B500: Mainstream: 1024Kbps~8192Kbps; Substream: 64Kbps~512Kbps
Frame Rate Mainstream @ 30fps, Substream @ 7fps
Interface Built-in Microphone
Interface One 10M/100Mbps RJ45
Power Supply DC12V & PoE (IEEE 802.3af 48V Active)
Power Consumption <10W(B500)
Working Environment -10°C~+55°C (14°F~131°F), Humidity: 10%~90%
Ingress Protection IP66
Dimension F67x186 mm
Weight 350g(B500)
