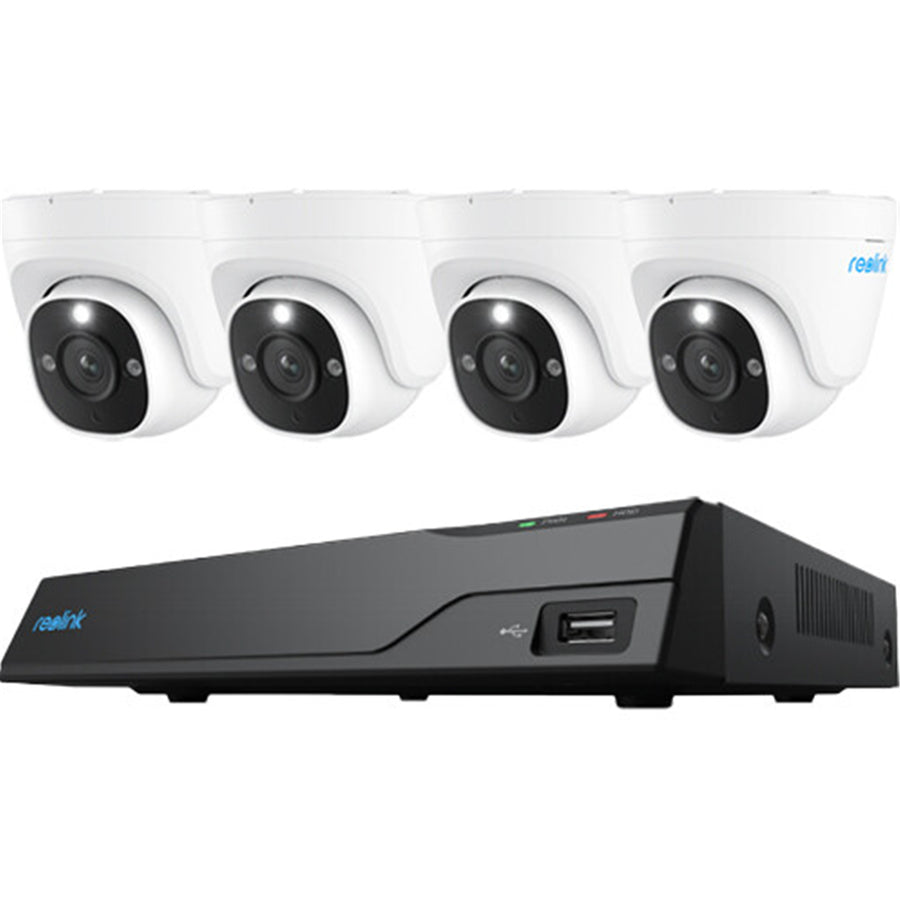

Reolink NVS8-12MD4 12MP/4K+ 8 Channel NVR Surveillance System with 2TB HDD
Features
Crisp Details, Clear Videos
Featuring an impressive 12MP and F1.6 large aperture lens, the security camera captures every minor detail on a human face or license plate. Rest assured knowing that no crucial details go unnoticed.
Focuses on Important Matters
Featuring person/vehicle/animal detection technology, this security camera system will let you know whether a person, vehicle, or animal is on your property and send you accurate alerts. Also, it can help you keep an eye on your pets. You don't have to waste time checking all alarms to find the important ones.

Night Vision with Ultra Clarity & Color
With a powerful spotlight and two IR LEDs on each camera, darkness will no longer prevent you from checking things that are not obvious at night. You can see more details in full color without worrying about poor lights.
Easy PoE Setup
No power cable or adapter is needed. this security camera system with Power over Ethernet (PoE) technology needs only one single network cable for each camera. Less wiring, less cost, more convenience.

Ready for Anywhere,Indoors & Outdoors
With aluminum metal body, the durable cameras of this security camera system can stand up to thunderstorms, extreme coldness or heat, or any other harsh weather. You can rely on it for year-round security.

Easy Management
You can get remote access to your cameras and control them via free Reolink App and Client, besides NVR. Just a touch away, manage your home, store or factory easily.
Motion Alerts
Once something suspicious is detected, the cameras will inform you by sending to your device an instant push notification or email. Know what's happening all the time.

Multi-Cam Live Feed
See the live feed of multiple cams on the same screen. Easier to have an overview of your property.

Smart Playback
You can not only replay saved videos to find key information but also filter the video by detection modes and control the timeline to quickly locate what you want to see.

Record Scheduling
You can choose to have the camera record 24/7 continuously, only when the movement is detected, or in accordance with your daily schedule.

Motion Zone
You can customize the motion zone to your liking, deciding where objects' movements will be detected and where they will not.

Specifications
Technical Specifications
| Hardware | V2 |
|---|---|
| IP Video Input | PoE IP camera x 8 |
| Audio Input | Cameras with built-in mic |
| Video Output | VGA, HDMI |
| Display Resolution | - HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768- VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Audio output | 1-channel, RCA |
| Video Format | H.264, H.265 |
| Live View/Playback Resolution | 7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p |
| Synchronous Playback | Up to 4 channels |
| SATA | 1 x SATA interface (1 x 2TB HDD included) |
| External HDD | 1 eSATA interface for HDD |
| Capacity | Up to 12TB (max. 6TB capacity for each HDD) |
| USB Interface | 2 x USB 2.0 |
| Network Interface | - 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN- 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3af/at |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; smartphone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Power Supply | DC 48V~53V |
| Power Consumption | <10W (without HDD & PoE) |
| Working Environment | Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90% |
| Dimensions | 260 x 41 x 230mm |
| Weight | 1.4kg |
| Image Sensor | 1/2.49" CMOS Sensor |
| Video Resolution | Default: 4512X2512 (12 megapixels) at 20 frames/sec |
| Lens | f=4.0mm; F=1.6, with IR-cut filter |
| Video Format | H.265 |
| Field of View | - Horizontal: 93°- Vertical: 49° |
| Day & Night | Auto-switching with IR-cut filter |
| Infrared Night Vision | 30 meters (LED: 2pcs/28mil/850nm) |
| Color Night Vision | Spotlight: 1pcs/4.3W/6500K/700 Lumens |
| Audio | Two-way audio (via Reolink App/Client) |
| PoE | IEEE 802.3af, 48V Active |
| DC Power | DC 12.0V?1A, <12W |
| Power | DC power port |
| System | Reset button |
| Ethernet | One 10M/100Mbps; RJ45 |
| Audio | Built-in microphone and speaker |
| Frame Rate | - Mainstream: 2fps - 20fps (default: 20fps)- Substream: 4fps - 20fps (default: 10fps) |
| Code Rate | - Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)- Substream: 128Kbps - 1024Kbps (default: 768Kbps) |
| Smart Alarm | Motion detection; person detection; vehicle detection; pet detection |
| Record Mode | Motion-triggered recording (default); scheduled recording; 24/7 recording |
| Temperature | Operating temperature: -10°C~+55°C (14°F~131°F) |
| Humidity | Operating humidity: 10% ~ 90% |
| Waterproof | IP67 |
| Dimension | F117.4*103.7mm |
| Weight | 510g |
| Image Sensor | 1/2.49" CMOS Sensor |
| Video Resolution | Default: 4512X2512 (12 Megapixels) at 20 frames/sec |
| Lens | f=4.0mm; F=1.6, with IR-cut filter |
| Video Format | H.265 |
| Field of View | - Horizontal: 93°- Vertical: 49° |
| Day & Night | Auto-switching with IR-cut filter |
| Infrared Night Vision | 30 meters (100ft) (LED: 2pcs/28mil/850nm) |
| Color Night Vision | Spotlight: 1pcs/4.3W/6500K/700 Lumens |
| Audio | Two-way audio |
| POE | IEEE 802.3af, 48V Active |
| DC Power | DC 12.0V?1A, <12W |
| Power | DC power port |
| System | Reset button |
| Ethernet | One 10M/100Mbps; RJ45 |
| Storage | microSD card slot (Max. 256GB) |
| Audio | Built-in microphone and speaker |
| Frame Rate | - Mainstream: 2fps - 20fps (default: 20fps)- Substream: 4fps - 20fps (default: 10fps) |
| Code Rate | - Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)- Substream: 128Kbps - 1024Kbps (default: 768Kbps) |
| Browsers Supported | Edge, Chrome, Firefox, Safari |
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Smart Alarm | Motion detection/person detection/vehicle detection/pet detection |
| Record Mode | Motion-triggered recording (default); scheduled recording |
| Protocols & Standards | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Maximal User Access | 20 Users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Work with | Google Assistant |
| Temperature | Operating temperature: -10°C~+55°C (14°F~131°F) |
| Humidity | Operating humidity: 10% ~ 90% |
| Waterproof | IP67 |
| Dimension | F117.4*103.8mm |
| Weight | 515g |
| Brand | Reolink |
|---|---|
| Product Type | Smart Home & Security |
