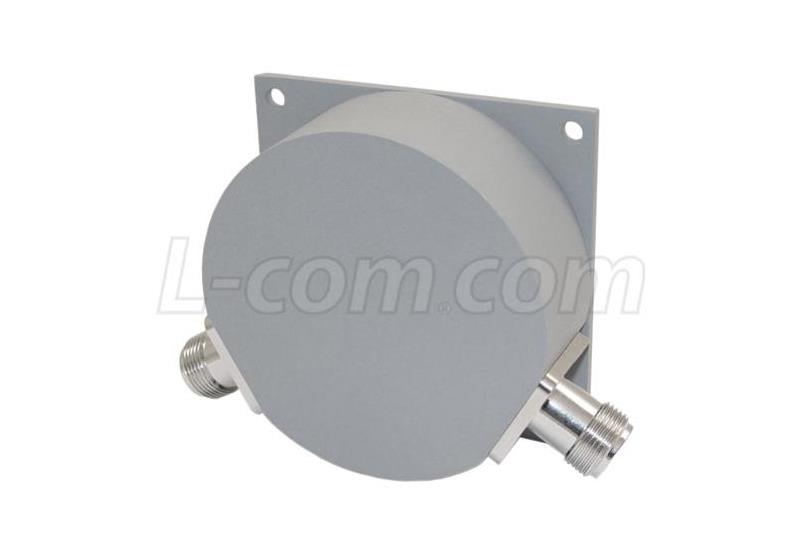

L-com BPF2400A - HyperLink 2.4 GHz Ultra High Q 4-Pole Outdoor Bandpass Filter Full Band BPF2400A
L-com

L-com BPF2400A - HyperLink 2.4 GHz Ultra High Q 4-Pole Outdoor Bandpass Filter Full Band BPF2400A

SKU: BPF2400A ● In Stock
$130.00
Free shipping over $299 Genuine product 7-day returns

BPF2400A

L-com BPF2400A - HyperLink 2.4 GHz Ultra High Q 4-Pole Outdoor Bandpass Filter Full Band BPF2400A

Description

The HyperLink 2.4 GHz 4-Pole Ultra-High Q Wi-Fi full band channel filters are ideal for co-located equipment installations. These filters are designed for full band applications. By reducing interference outside the 2400 MHz ISM band, improved performance of co-located equipment can be achieved. These bandpass filters are wide enough to pass high data rate 802.11g signals without degradation. The BPF2400A features rugged aluminium construction and is for use indoors or in weather-resistant enclosures. For outdoor applications, the BPF2400A features weatherproof construction. It is ideal for high data rate 802.11b and 802.11g Wireless LAN applications.
Features
  • Ultra-High Quality Microwave Cavity Filter
  • Ultra Low Insertion Loss (.25 dB nominal)
  • For 2400 MHz Full Band Applications
  • Reduce Interference Outside the ISM Band and Improve Performance
  • Provides Lightning Protection (DC Short)

Specifications

Details
Manufacturer's Product Code BPF2400A
Frequency 2448MHz (Center Frequencies)
Bandwidth 100MHz
Insertion Loss 0.25 dB nominal
Out of Band Rejection > 80 dB @ < 2000 MHz, > 60 dB @ > 2700 MHz
Connector 2x N-Type Female
Operating Temperature -40° C to +85° C
Dimensions 78 x 78 x 31 mm
