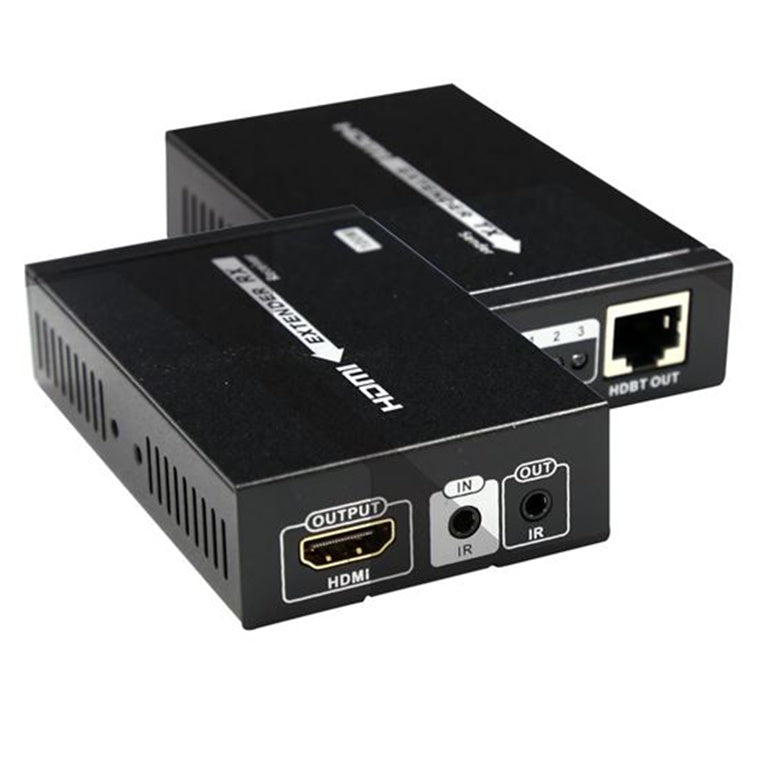

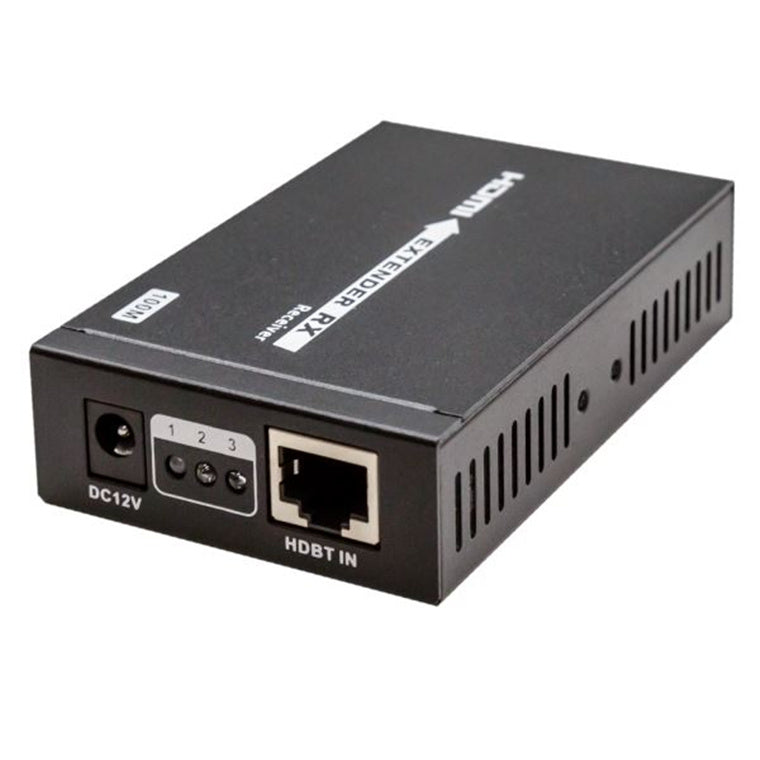

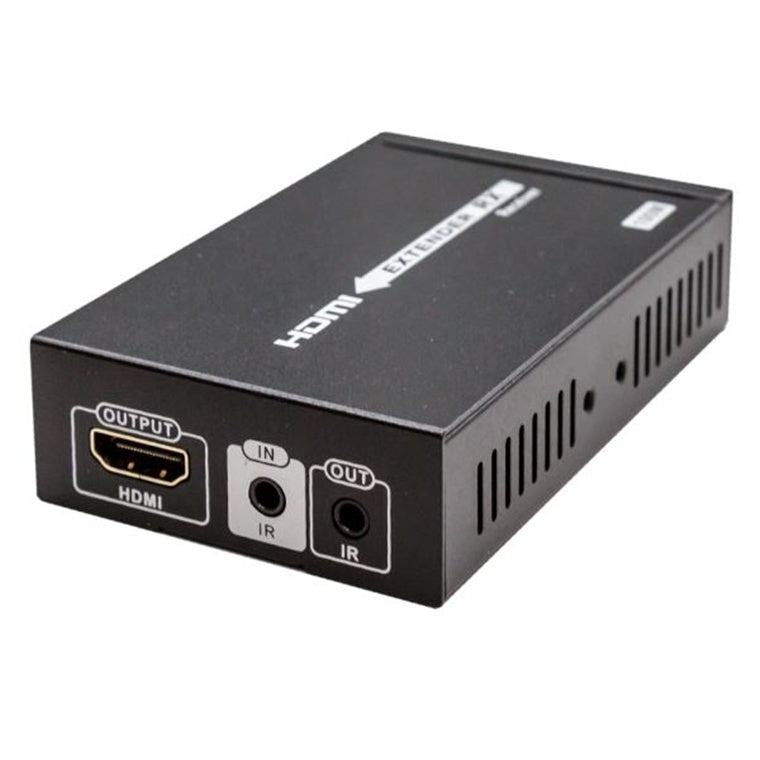

LENKENG LKV375-100 - HDBaseT HDMI Extender over Single Cat5e/6 up to 100m Extends HDMI & IR
Features
LENKENG HDBaseT HDMI Extender over Single Cat5e/6 cable up to 100m. Extends HDMI & IR. Includes Dual Power Adapters for Reciever & Transmitter, 1080p @ 60Hz up to 100m 4K2K @ 30Hz up to 70m .
This HDBaseT single network cable extender transmits HDMI signal for up to 100 meters over Cat6 cable. It is lossless in signal and supports 3D, 24bits deep colour, 4K2K, CEC and HDCP.
- HDBaseT technology
- Uncompressed HDMI video signal
- Support full HD 1080P @ 60Hz, 3D, 4K2K
- Extend 1080p signal over Cat6a for up to 100m
- Support for bi-directional IR pass back
- Support HDCP, CEC, 24 deep colour
- Support uncompressed LPCM audio and compressed DTS-HD, Dolby True HD
- Includes dual power adapters for both transmitter and receiver
Specifications
Technical Specifications
| HDMI Signal | 4K2K, compatible with HDCP,Support CEC and 24bits deep colour |
|---|---|
| Resolutions Supported | 480i/480P/576i/576P/720P/1080i/1080P/3D/4K2K |
| Audio | LPCM, DTS Digital, Dolby Digital |
| Network Cable | CAT5E, CAT6, CAT6A |
| Transmission Length - CAT5E/CAT6 - 100M | Up to 1080p @ 60Hz 36bpp |
| Transmission Length - CAT5E/CAT6 - 70M | Up to 1080p @ 60Hz 36bpp |
| Transmission Length - CAT6A - 100M | 1080p @ 60Hz 48bpp, 1080p @ 60Hz 3D, 4K2K @ 30Hz |
| Infrared Back | Support 20~60kHz wide frequency devices and Bi-directional IR transmission |
| Power Supply | 12V/2A DC x1pcs |
| Power Consumption | 8W |
| Product Dimension (LxWxH) | 98.5x66.5x23mm |
| Enclosure Material | Metal |
| Weight | TX:79gRX:107g |
| Colour | Black |
| Brand | LENKENG |
|---|---|
| Product Type | TV & Home Theatre > AV Extenders |
| Weight | 6.395 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
