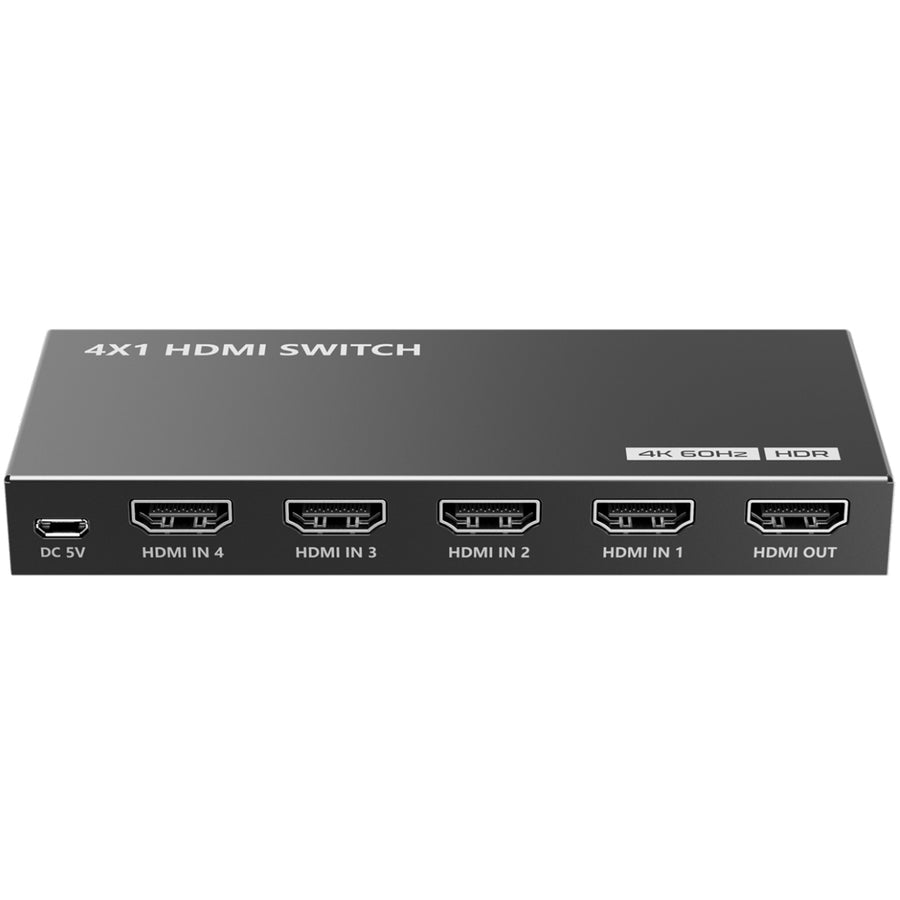

LENKENG LKV401HDR-V3-0 - 4K 4-In-1-out HDMI HDR Switch. Support 12 bit full HD video 3D video 4K x 2K@30/60
Features
LENKENG 4K 4-In-1-Out HDMI HDR Switch. Support 12 bit full HD video, 3D video and 4K x 2K@30/60Hz ultra HD video. Compatible with HDMI 1.4, HDMI 2.0 & HDCP 1.4, HDCP 2.2. Includes Remote Control.
This 4×1 switch routes 4 different sources at a resolution of up to 4K@60Hz UHD to one display. The switch has 4 HDMI inputs, making this unit ideal for simultaneously connecting multiple HDMI devices. In addition, this switch supports IR control, thus it is easy and flexible to control the input signal as you need. It is perfect for security, medium entertainment, conference exhibition centre and digital monitoring systems, etc.
- Switch easily among any 4x HDMI sources
- Resolution supported up to ultra HD 4K@60Hz
- Maximum bandwidth up to 18Gbps
- Support HDMI 3D
- Support IR control
- Support HDR
- Plug-and-play, easy to use
- Power-off memory
Specifications
Technical Specifications
| Input ports | 4 x HDMI |
|---|---|
| Output ports | 1 x HDMI |
| Power indicator led | 1 x LED |
| Signal indicator led | 4 x LED |
| HDMI version | Compatible with HDMI 1.4, HDMI 2.0 |
| HDCP version | Compatible with HDCP 1.4, HDCP 2.2 |
| I/O TMDS signal | 0.7~1.2Vp-p (TMDS) |
| I/O DDC signal | 5Vp-p |
| Video format supported | Support 12bit full HD video, 3D video and4K×2K@30/60Hzultra HD video |
| Audio format supported | Support standard audio and DSD (Direct Stream Digital) and HD (HBR) audio |
| HDMI resolution | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1920x1200, 3840x2160@24/25/30/50/60Hz,4096x2160@24/25/30/50/60Hz |
| HDMI length | 4K@60HzHDMI input length=2m, HDMI output length=3m1080p@60HzHDMI input length=5m, HDMI output length=5m |
| HDR | Support |
| Working temperature | 0°C ~ 60°C |
| Power supply | DC 5V 500mA |
| Dimensions | 130(L) x 54(W) x 16.5(H) mm |
| Weight | 175g |
| Colour | Black |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals > KVM Switch/Extenders |
| Weight | 4.794 kg |
| Warranty |
|---|
