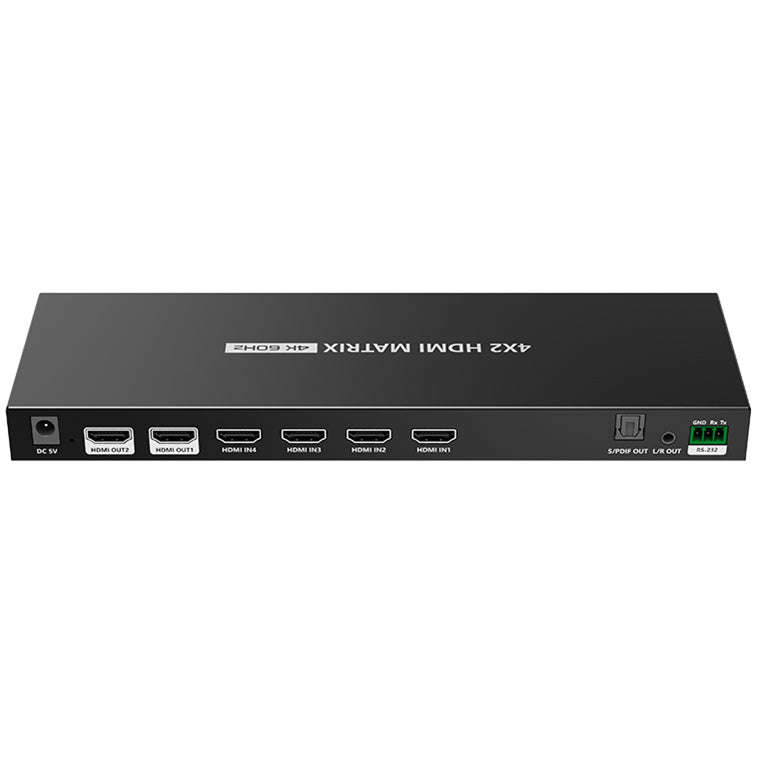

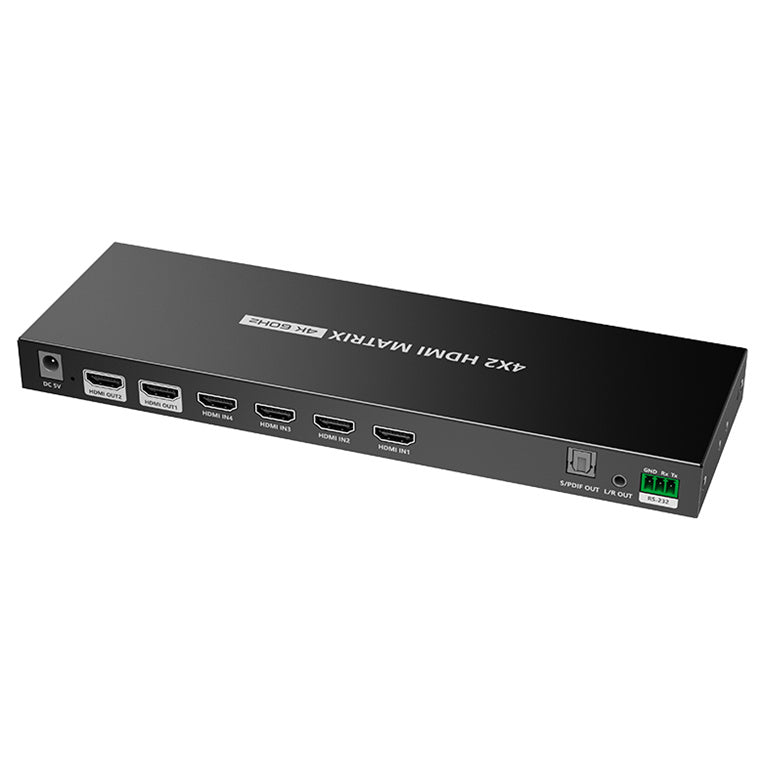

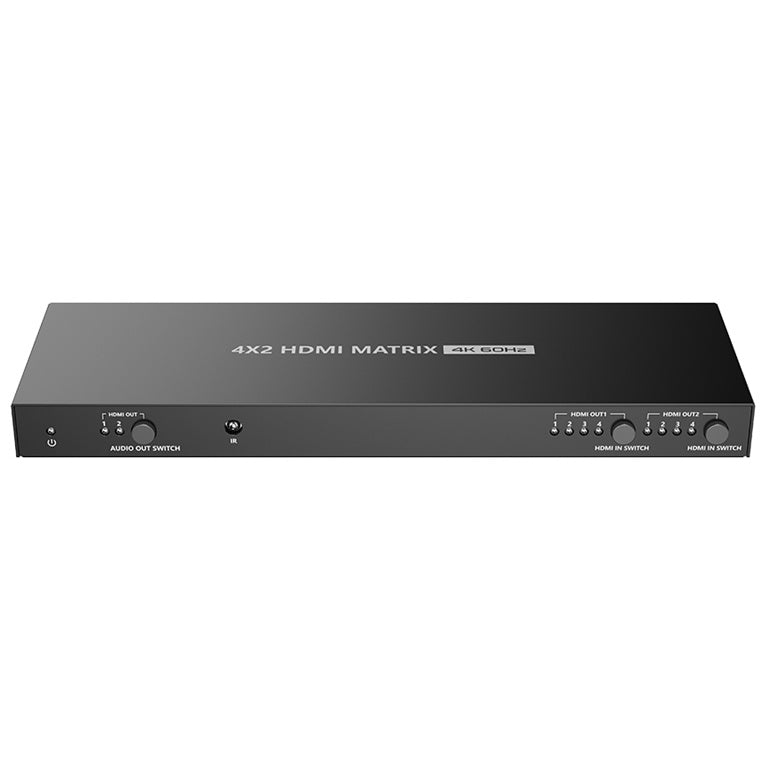

LENKENG LKV422 - 4-In-2-out HDMI Matrix Switch Supports 4096x2160@60Hz HDR RSR-232, Remote Control
LENKENG LKV422 - 4-In-2-out HDMI Matrix Switch Supports 4096x2160@60Hz HDR RSR-232, Remote Control

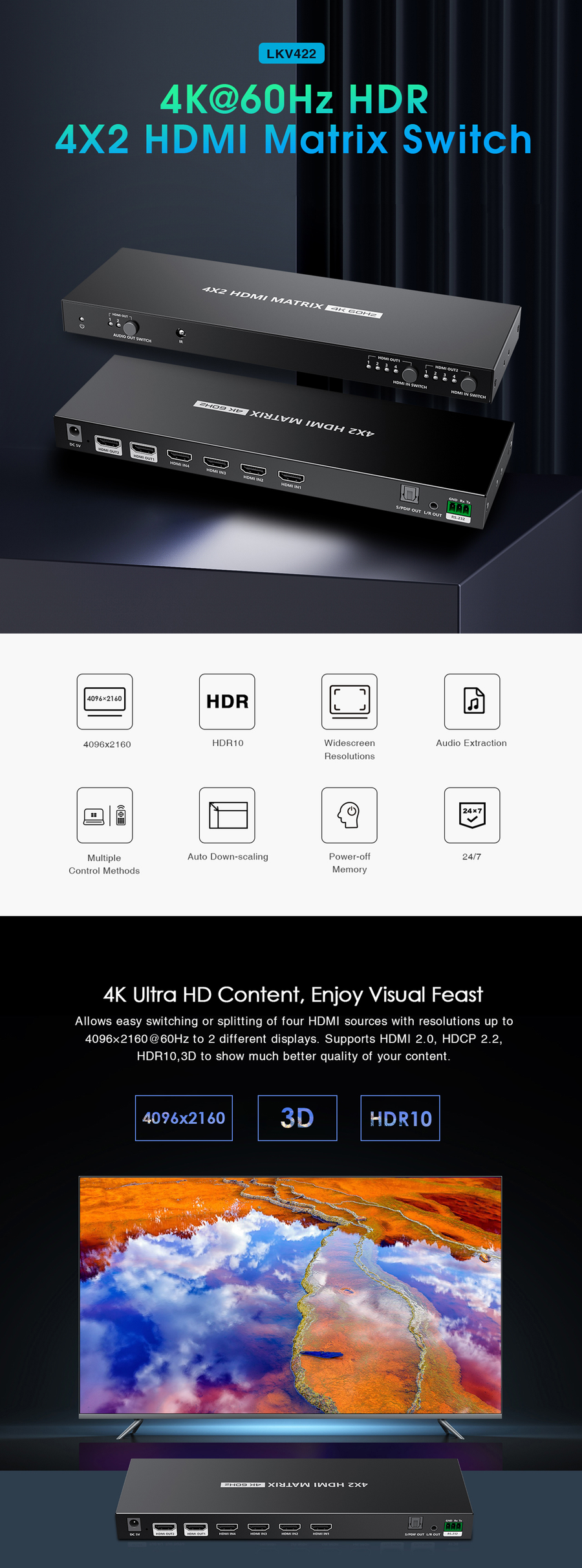

Features
This 4-in-2-out HDMI™ matrix switch allows four HDMI™ sources to be routed to two HDMI™ displays as needed. It supports resolutions up to 4096 × 2160 @ 60Hz with HDR, and offers flexible control via IR remote, front-panel buttons, or RS-232. The HDMI™ outputs also support automatic downscaling for improved display compatibility. Audio can be extracted through the S/PDIF port or stereo audio jack. Designed for reliable ultra-high-definition video transmission, this matrix switch is ideal for use in security monitoring, education and training, exhibitions, broadcasting, command centres, and other professional applications.
- 4K @ 60Hz HDR10

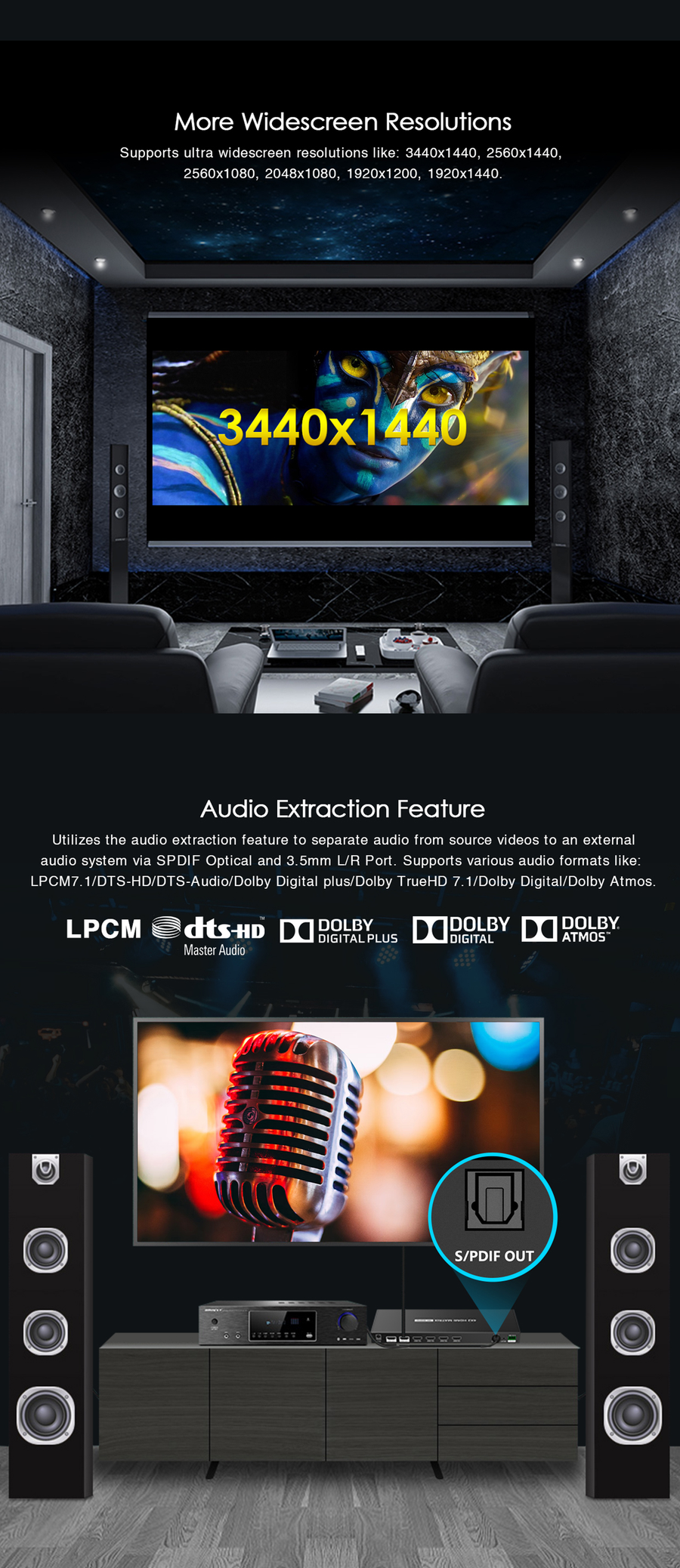

- Widescreen Resolutions
- Audio Extraction

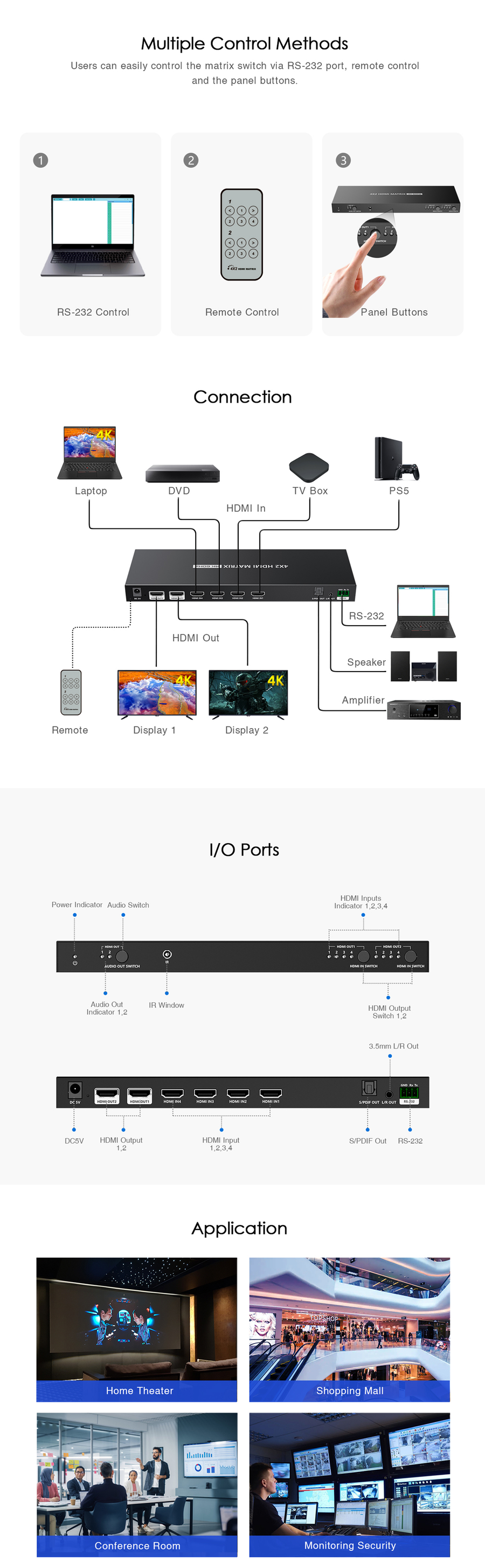

- Multiple Control Methods
- Auto down-scaling
- Power Off Memory
Specifications
Technical Specifications
| Housing | Iron |
|---|---|
| Color | Black |
| HDMI version | HDMI 2.0 (HDR, YUV444)Compatible with HDCP 2.2, HDCP 1.4 |
| HDMI interface | 4 HDMI input, 2 HDMI output |
| Transmission rate | 18Gbps |
| Resolutions | 480i @ 60Hz480p @ 60Hz576i @ 50Hz576p @ 50Hz720p @ 50/60Hz1080i @ 50/60Hz1080p @ 50/60Hz3840×2160 @ 24/25/30/50/60Hz4096×2160 @ 24/25/30/50/60Hz |
| Audio format | LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/ Dolby TrueHD 7.1/Dolby Digital 7.1CH/Dolby Atmos |
| RS-232 | 3 Pin (GND/Rx/Tx), Baud rate 9600 |
| Voltage | DC 5V/1A |
| Power consumption | <4W |
| Protection | ESD protection1a Contact discharge level 2 (±4KV)1b Air discharge level 3 (±8KV)Implementation of the standard: IEC61000-4-2Lightning protection, Surge protection |
| Working temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 0~90%RH (No Condensation) |
| Dimensions | 250.0(L) x 80.0(W) x 21.0(H) mm |
| Weight | 375g |
