LENKENG LKV501HDR-V3-0 - 4K 5-In-1-out HDMI HDR Switch. Support 12 bit full HD video 3D video & 4Kx 2K@30/60
Features
LENKENG 4K 5-In-1-Out HDMI HDR Switch. Support 12 bit full HD video, 3D video and 4K x 2K@30/60Hz ultra HD video. Compatible with HDMI 1.4, HDMI 2.0 & HDCP 1.4, HDCP 2.2. Includes Remote Control.
This 5×1 switch routes from 5 different sources at a resolution of up to 4K@60Hz UHD to a single display. The switch has 5x HDMI inputs, which makes this unit ideal for simultaneous connection to multiple HDMI devices. In addition, this switch supports IR control, thus it is easy and flexible to control the input signal as you need. It is perfect for security systems, medium entertainment, conference exhibition centre and digital monitoring system, etc.
- Switch easily among any 5x HDMI sources
- Support resolution up to Ultra HD 4K@60Hz
- Support highest bandwidth of up to 18Gpbs
- Support HDR
- Support HDMI 3D
- Support IR control
- Plug and play, easy to use
- Power-off memory
Specifications
Technical Specifications

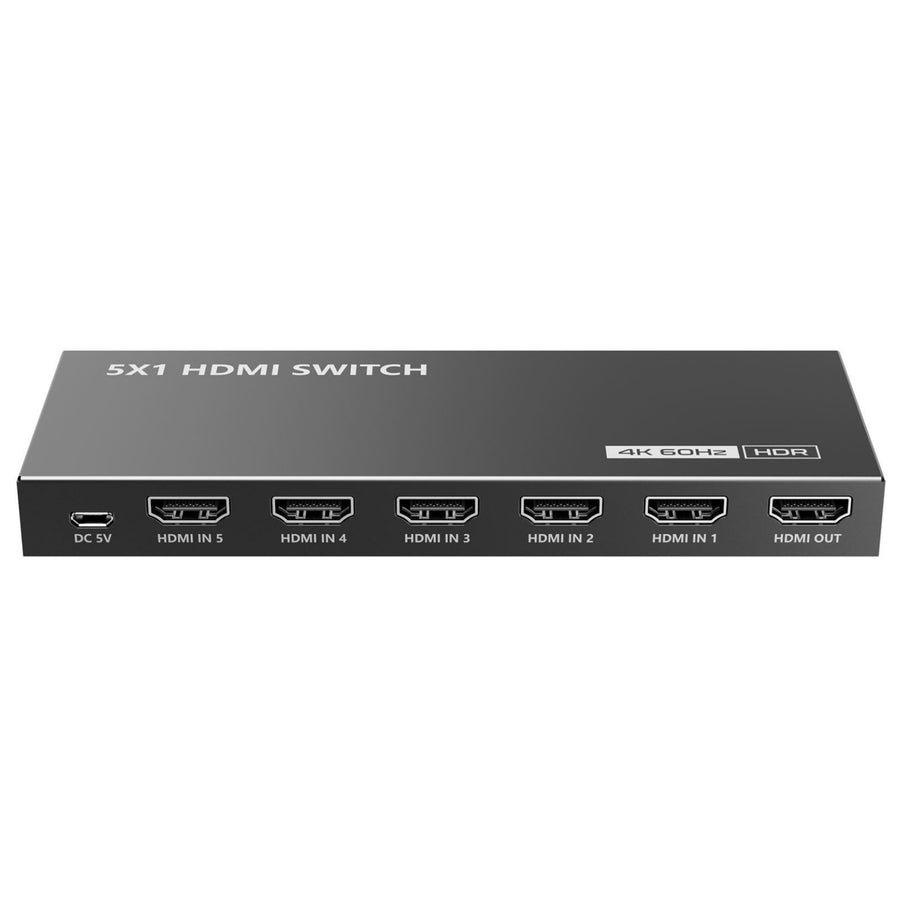

| Input ports | 5x HDMI |
|---|---|
| Output ports | 1x HDMI |
| Power indicator led | 1x LED |
| Signal indicator led | 5x LED |
| HDMI version | Compatible with HDMI 1.4, HDMI 2.0 |
| HDCP version | Compatible with HDCP 1.4, HDCP 2.2 |
| Video format supported | Support 12 bit full HD video, 3D video and4K@30/60HzUltra HD video |
| I/O TMDS signal | 0.7~1.2V p-p |
| I/O DDC signal | 5V p-p |
| Audio format supported | Support standard audio and DSD (Direct Stream Digital) and HD (HBR) audio |
| HDMI resolution | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1920x1200, 3840x2160@24/25/30/50/60Hz,4096x2160@24/25/30/50/60Hz |
| HDMI length | 4K@60HzHDMI input length =2m, HDMI output length =3m1080p@60HzHDMI input length =5m, HDMI output length =5m |
| HDR | Yes |
| Working temperature | 0°C~60°C |
| Power supply | DC 5V 1A |
| Power consumption | <3.5W |
| Dimension | 160(L)×60(W)×16.5(H) mm |
| Weight | 226g |
| Colour | Black |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals > KVM Switch/Extenders |
| Weight | 4.535 kg |
| Warranty |
|---|
