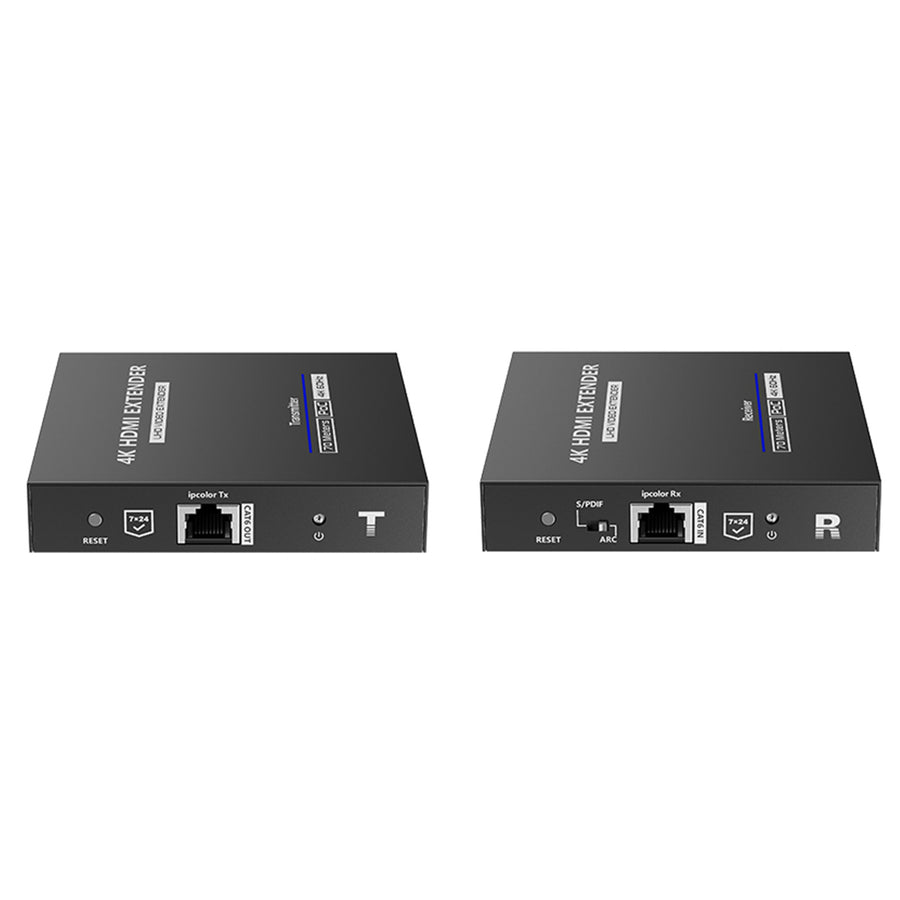

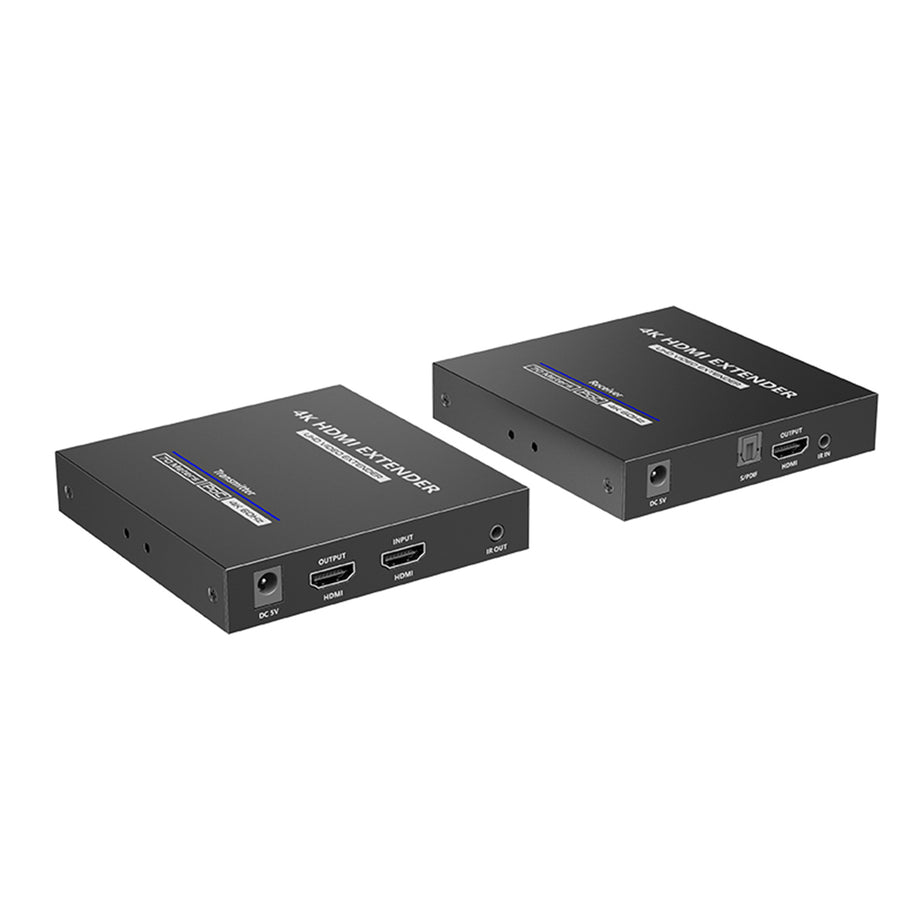

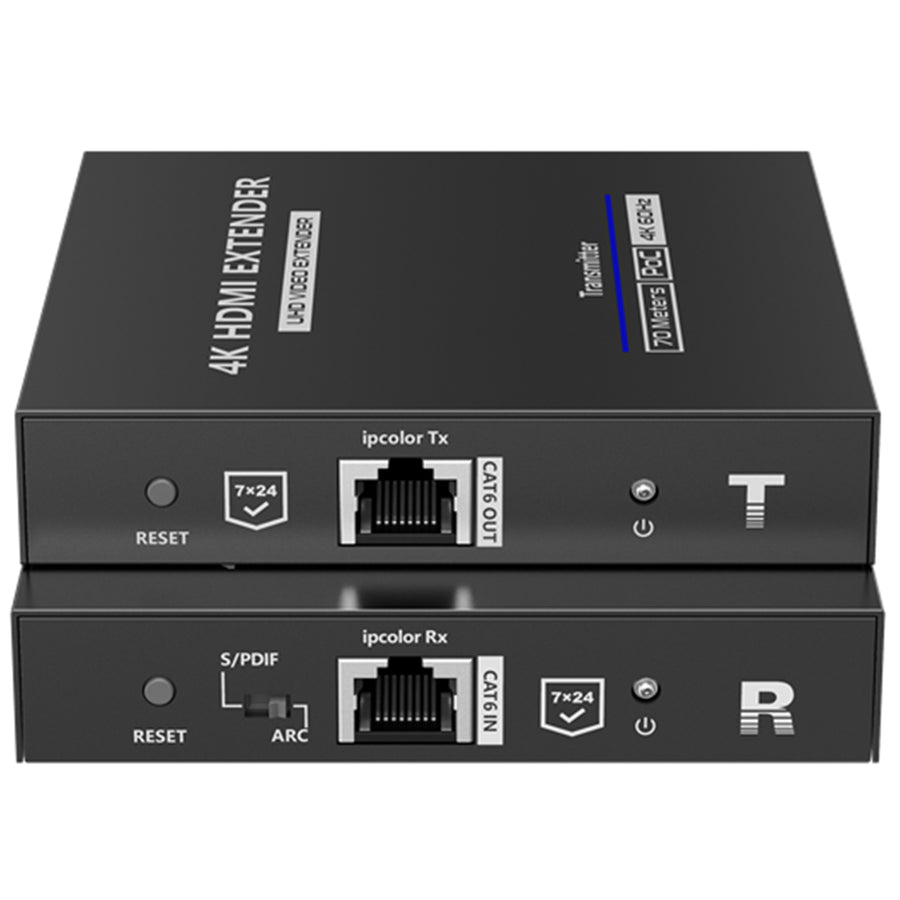

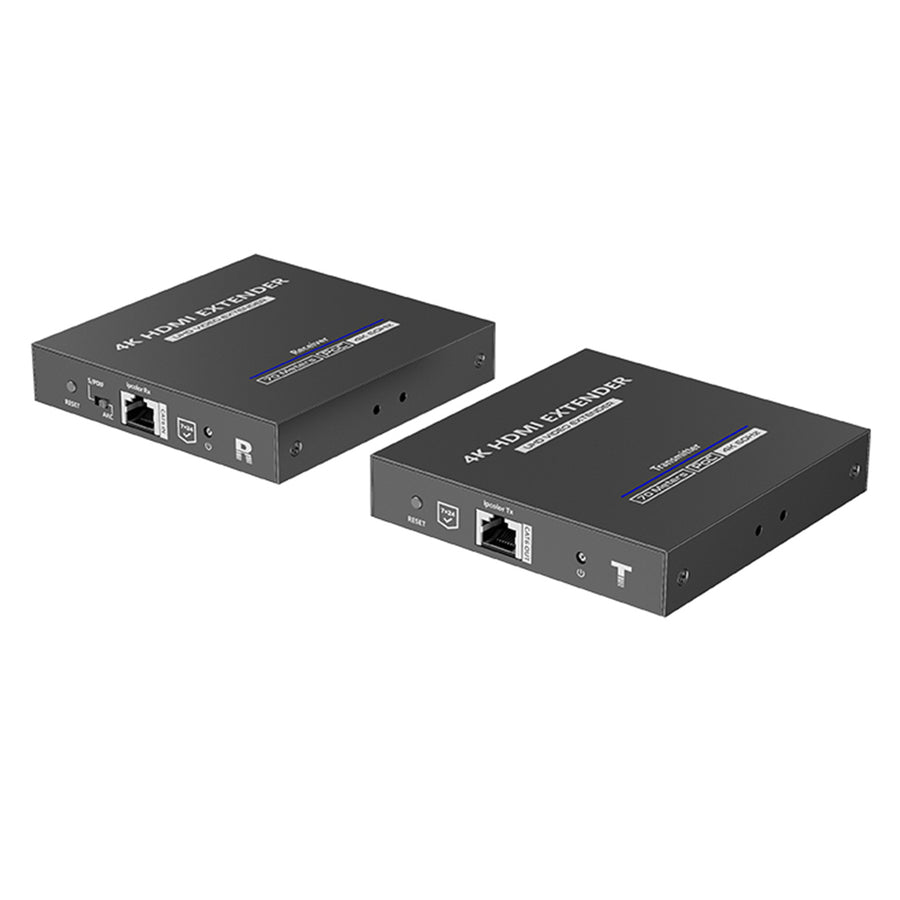

LENKENG LKV676P-I - HDMI 2.0 POC Extender Over Cat6/6a. Supports up to 4K@60H Zero Latency. Two Way IR. HDMI
Features
This HDMI Extender includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 70 meters at 4K resolution using a CAT6/6A/7 network cable. It is perfect for outdoor advertising, video clips, monitor system, home entertainment, and conference, etc.
- Zero latency.
- 4K @ 60Hz HDMI signal can be transmitted 70 meters through a CAT6/6A/7 network cable.
- The receiver can extract the digital audio from the transmitter through the S/PDIF port.
- Supports HDR10.
- Supports EDID passthrough, and auto downscaling.
- The transmitter supports one HDMI loop-out.
- Support IR passback function (20 ~ 60KHz).
- Lightning Protection, Surge Protection, ESD Protection.
- Supports bi-directional PoC, only the transmitter or receiver is required to supply power.

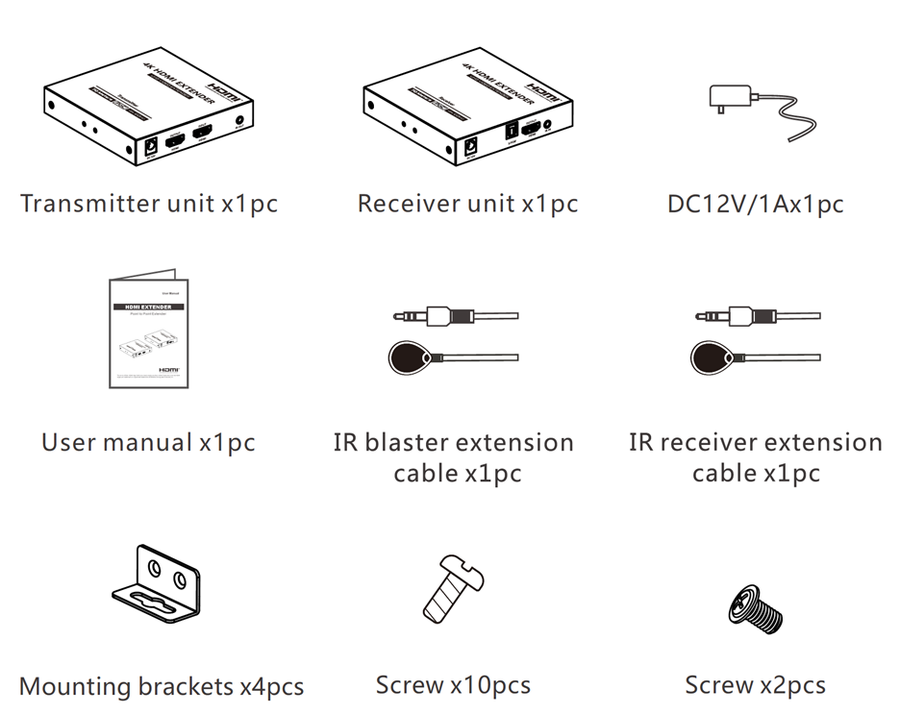

Package Contents
Specifications
Technical Specifications
| Power Supply | DC12V/1A |
|---|---|
| Power Consumption | TX:4W,RX:4W |
| HDMI Compliance | HDMI2.0,HDMI2.2 |
| HDMI resolution | 480i @ 60Hz?480p @ 60Hz?576i @ 50Hz? 576p @ 50Hz?720p @ 50/60Hz? 1080i @ 50/60Hz?1080p @ 50/60Hz? 3840x2160 @ 24/25/30/50/60Hz 4096x2160 @ 24/25Hz?1280x960? 1280x800?1280x768?1680x1050? 1360x768?1366x768?1600x900?1024x768?800x600 |
| Supports Audio Formats | LPCM/DTS-H D/DTS-Audi/ Dolby Digital 5.1CH/Dolby Atmos |
| Input and output TMDS signal | 0.7~1.2Vp-p(TMDS) |
| Input and output DDC signal | 5Vp-p(TTL) |
| Input cable length | ?8m(AWG24) |
| Output cable length | ?8m(AWG24) |
| CAT6/6A/7 Transmission Distance | =70m |
| Protection Level | 1a Contact discharge level 31b Air discharge level 3Implementation of the standard: IEC61000-4-2 |
| Working temperature | -20~60°C |
| Storage temperature | -30~70°C |
| Humidity (no condensation) | 0~90%RH |
| Dimension | 105.5(L) x 102.5(W) x 20(H)mm |
| Material | Iron |
| Color | Black |
| Weight | TX: 243g,RX: 243g |
| Brand | LENKENG |
|---|---|
| Product Type | TV & Home Theatre > AV Extenders |
| Weight | 4.354 kg |
| Warranty |
|---|
