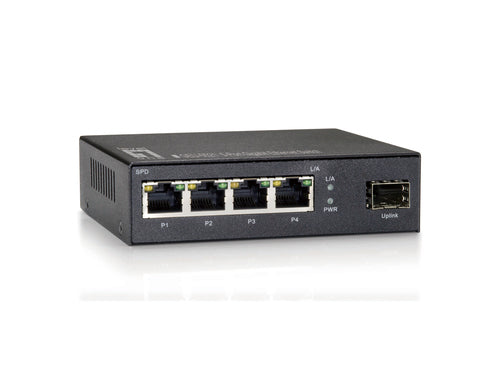

LevelOne GEU-0521 - 5-Port Gigabit Switch 4x GigE RJ45 1x GigE SFP
LevelOne GEU-0521 - 5-Port Gigabit Switch 4x GigE RJ45 1x GigE SFP
Overview
GEU-0521 is designed to make conversion between 10/100/1000Base-T and 1000Base-SX/LX Fiber Ethernet. The overall network flexibility is enhanced, and the network efficiency is also improved to accommodate and deliver high bandwidth applications.
Providing 10Gbps internal switching fabric, the GEU-0521 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GEU-0521 provides 4K MAC address table, 9K bytes JUMBO Frame, and offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.
- 4 Gigabit Ethernet ports and 1 Gigabit SFP slot
- 9K jumbo frames to increase data transfer rates
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Supports 1K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Provides wall or desktop mounting
- Quick and easy installation
Technical Specifications
| Switch type | Unmanaged |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Fiber optic connector | SFP |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported | Cat5,Cat5e |
| Full duplex | Y |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| MAC address auto-learning supported | Y |
| MAC address auto-aging supported | Y |
| Fiber ethernet cabling technology | 1000BASE‑LX,1000BASE‑SX |
| Transmission distance (max) | 0.55 |
| Switching capacity | 1 |
| MAC address table | 4000 |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 |
| Packet forwarding rate (100 Mbps) | 148800 |
| Packet forwarding rate (10 Mbps) | 14880 |
| Packet buffer memory | 1 |
| Rack mounting | N |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity,Link,Power |
| Wall mountable | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Input current | 2.5 |
| Power over Ethernet (PoE) | N |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 90 |
| Operating relative humidity (H-H) | 10 - 90 |
| Width | 96 |
| Depth | 112 |
| Height | 30 |
| Weight | 380 |
| Quick start guide | Y |
| AC adapter included | Y |
| Rubber feet | Y |
| Package width | 140 |
| Package depth | 250 |
| Package height | 55 |
| Package weight | 540 |
| Certification | FCC Class B, CE |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
