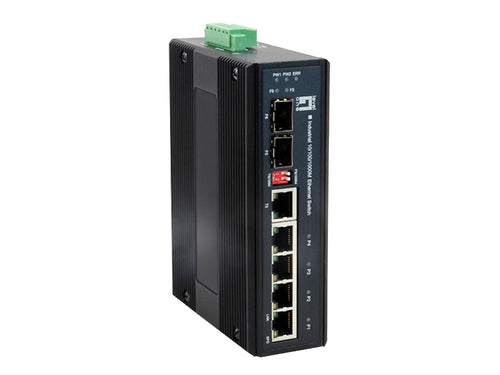

LevelOne IES-0600 - 6-Port Gigabit Industrial Switch 1 x SFP 1 x SFP/RJ45 Combo -40°C to 75°C DIN-Rail
LevelOne IES-0600 - 6-Port Gigabit Industrial Switch 1 x SFP 1 x SFP/RJ45 Combo -40°C to 75°C DIN-Rail
Overview
LevelOne IES-0600 Industry Ethernet Switch provides 4 ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers.
- 4 10/100/1000Base-T ports
- 1 Gigabit Combo + 1 Gigabit SFP(100/1G) slot
- 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex,
- Auto-Negotiation, Auto-MDI/MDIX
- 40°C to 75°C (-40°F to 167°F) operating temperature range
- DIN-Rail mount installation
- Metal case design and compliant with IP30 standard
Technical Specifications
| Basic switching RJ-45 Ethernet ports quantity | 4 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | N |
| Full duplex | Y |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Switching capacity | 12 |
| MAC address table | 1024 |
| Store-and-forward | Y |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 1488000 |
| Packet forwarding rate (100 Mbps) | 148000 |
| Packet forwarding rate (10 Mbps) | 14880 |
| Packet buffer memory | 1 |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity,Link,Power |
| International Protection (IP) code | IP30 |
| Wall mountable | Y |
| DIN rail mounting | Y |
| Input voltage | 5 - 56 |
| Power protection features | Overload,Reverse polarity |
| Power over Ethernet (PoE) | N |
| Terminal block port | Y |
| Operating temperature (T-T) | -40 - 75 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage relative humidity (H-H) | 5 - 95 |
| Width | 40 |
| Depth | 105 |
| Height | 38 |
| Weight | 720 |
| Quick start guide | Y |
| Package type | Box |
| Package width | 215 |
| Package depth | 165 |
| Package height | 65 |
| Package weight | 120 |
| Certification | FCC Part 15 Subpart B Class A CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3 EN61000-4-6 (CS) Level 3 EN61000-4-8 (Magnetic Field) Level 3 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 UL 508 |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
