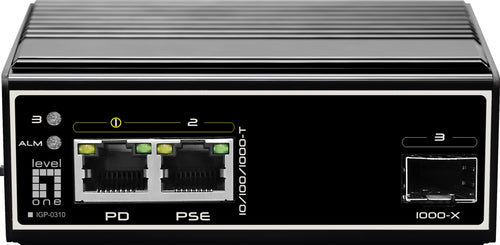

LevelOne IGP-0310 - 3-Port Industrial Gigabit POE Switch 802.3at PoE+ in and out 1x SFP
LevelOne IGP-0310 - 3-Port Industrial Gigabit POE Switch 802.3at PoE+ in and out 1x SFP
Overview
LevelOne IGP-0310 Industry Ethernet Switch provides 2 PoE ports 10/100/1000Base plus 1 port SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/at PoE standard at maximum 30. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3 af/at standard PD devices.
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Provides DIN-rail, wall or desktop mounting
- IP30 metal case
- 6KV surge protection level on each port
- ESD and surge protection
Technical Specifications
| Basic switching RJ-45 Ethernet ports quantity | 2 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Networking standards | IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | N |
| Full duplex | Y |
| Half duplex | Y |
| Auto MDI/MDI-X | Y |
| Ethernet LAN data rates | 1000 |
| Auto-negotiation | Y |
| Packet buffer memory | 1 |
| Rack mounting | N |
| Stackable | N |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link |
| International Protection (IP) code | IP30 |
| Wall mountable | Y |
| Power supply included | N |
| DC input voltage | 12 - 56 |
| Power consumption (typical) | 5 |
| Surge protection | Y |
| Surge protection voltage | 6 |
| Power over Ethernet (PoE) | Y |
| Operating temperature (T-T) | -40 - 75 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Width | 65 |
| Depth | 35 |
| Height | 101 |
| Weight | 300 |
| Quick start guide | Y |
| Package width | 110 |
| Package depth | 62 |
| Package height | 130 |
| Package weight | 350 |
| Certification | CE/FCC |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
