LevelOne IGS-2105 - 6-Port Gigabit Industrial Smart Switch -40°C to 75°C DIN-Rail (Promotional price)
LevelOne IGS-2105 - 6-Port Gigabit Industrial Smart Switch -40°C to 75°C DIN-Rail (Promotional price)
Overview
The LevelOne IGS-2105 Hilbert Industrial gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. IGS-2105 delivers 5 (10M/100M/1G) RJ45 ports. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity.. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.
The LevelOne IGS-2105 provides high HW performance and environment flexibility for Enterprises. IGS-2105 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
- 5 Gigabit Ethernet ports
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Supports 2K MAC address auto-learning and auto-aging
- 9K jumbo frames to increase data transfer rates
- IP Multicast Filtering through IGMP Snooping V1 / V2
- 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
- IEEE 802.1p QoS with 4 priority queues
- Supports unknown unicast / broadcast / multicast storm control
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- -40°C to 75°C operating temperature range

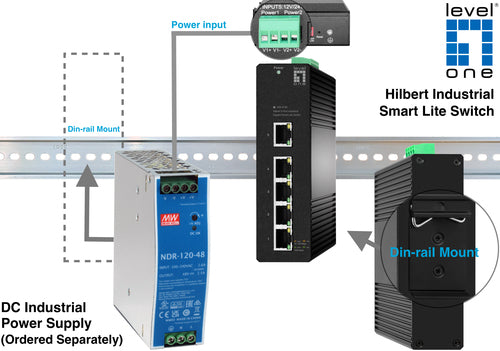

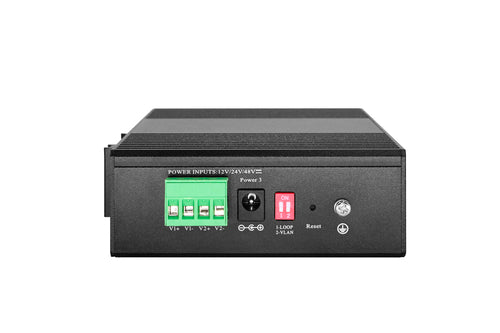

- Redundant power inputs with Terminal Block
- 4KV surge protection, 6KV contact / 8KV air ESD protection
- Web-based and smart lite Management

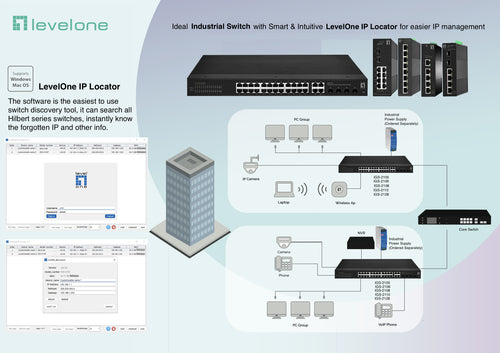

- Supports LevelOne IP Locator for easier IP management
Technical Specifications
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Uplink ports quantity | 1 |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 100BASE-TX,10BASE-T,1000BASE-T |
| Port mirroring | Y |
| Full duplex | Y |
| Half duplex | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Auto MDI/MDI-X | Y |
| Spanning tree protocol | Y |
| Auto-negotiation | Y |
| MAC address auto-learning supported | Y |
| MAC address auto-aging supported | Y |
| VLAN support | Y |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 32 |
| Switching capacity | 10 |
| Forwarding rate | 7.44 |
| MAC address table | 2000 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 |
| IGMP snooping | Y |
| Queue scheduling algorithms | Priority queuing (PQ) |
| Multicast support | Y |
| Product colour | Black |
| LED indicators | Activity,Link,Power |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Y |
| Flash memory | 2 |
| Noise level | 0 |
| Fanless | Y |
| Mean time between failures (MTBF) | 43800 |
| Power source | DC |
| Power supply included | N |
| Redundant power supply (RPS) support | Y |
| DC input voltage | 12 - 57 |
| Power consumption (typical) | 5 |
| Surge protection | Y |
| Surge protection voltage | 4 |
| Power protection features | Surge protection |
| Power over Ethernet (PoE) | N |
| Operating temperature (T-T) | -40 - 75 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 95 |
| Heat dissipation | 17.06 |
| Width | 136 |
| Depth | 108 |
| Height | 38.5 |
| Weight | 430 |
| Quick start guide | Y |
| Terminal block included | Y |
| Package type | Box |
| DIN rail included | Y |
| Package width | 191 |
| Package depth | 135 |
| Package height | 60 |
| Package weight | 680 |
| Sustainability compliance | Y |
| Layers per pallet (air) | 16 |
| Pallet gross length | 800 |
| Pallet gross width | 1200 |
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS,UKCA |
| Pallet gross height | 1544 |
| Country of origin | China |
| Master (outer) case width | 480 |
| Master (outer) case length | 395 |
| Master (outer) case height | 350 |
| Harmonized System (HS) code | 8517620090 |
| Master (outer) case gross weight | 24000 |
| Products per master (outer) case | 34 |
