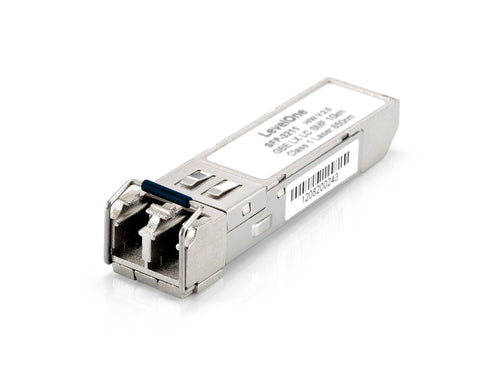

LevelOne SFP-3211 - Gigabit Ethernet Single-mode SFP Transceiver LX (10km) Duplex LC
LevelOne SFP-3211 - Gigabit Ethernet Single-mode SFP Transceiver LX (10km) Duplex LC
Overview
LevelOne SFP-3211 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 9 micron fiber cables, it can reach a distance of up to 10km. The SFP-3211 transceiver operates using a wavelength of 1310nm with a FP Laser Diode light source and has a LC connector.
- 1310nm FPLD
- Data Rate: 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/DC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA)
- Duplex LC Connector
- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06bps
- No configuration or installation software required
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
Technical Specifications
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1250 |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Y |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 |
| Maximum transfer distance | 10000 |
| Wavelength | 1310 |
| Tx power (min) | -9.5 |
| Tx power (max) | -3 |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Fiber ports quantity | 1 |
| Plug and Play | Y |
| Hot-swap | Y |
| Input voltage | 3.3 |
| Maximum voltage | 6 |
| Maximum current | 0.3 |
| Power over Ethernet (PoE) | Y |
| Compliance certificates | RoHS |
| Safety | EN 60825-1 |
| Certification | CE, FCC |
| Operating temperature (T-T) | 0 - 70 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 5 - 95 |
| Width | 57 |
| Depth | 12 |
| Height | 13.7 |
| Weight | 20 |
| Package width | 106 |
| Package depth | 20 |
| Package height | 65 |
| Package weight | 35 |
| Harmonized System (HS) code | 85369010 |
