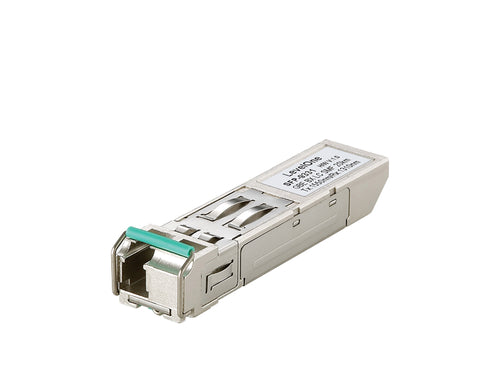

LevelOne SFP-9331 - Gigabit Single-mode Bi-directional SFP (20km TX/RX 1550/1310nm)
You May Also Like
StarTech.com HPE J9150D Compatible SFP+ Module - 10GBASE-SR - 10GbE Multi Mode (MMF) Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM HPE FlexFabric, 6120XG, 6120G
StarTech.com HPE JD094B Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode (SMF) Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 5900, 12500, 5500
Features
Networking / Fiber Optical Transceiver / SFP-9331
The LevelOne SFP-9331 is a high performance, cost-effective SFP transceiver. It provides up to 1.25 Gbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction. The SFP-9331 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-9321 transceiver which transmits at and receives at the opposite rates (1550nm TX and 1310nm RX) you get bi-direction data communication on a single fiber core.
- 1550nm DFP LD
- Multi Data Rate: from 125M to 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Simplex LC Connector
- Compliance with specifications for IEEE802.3z Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06bps
- No configuration or installation software required
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
Specifications
Technical Specifications
| Standards & Protocols: | IEEE 802.3ah 1000BASE-BX10-DSFP Multi-Sourcing Agreement(MSA) |
|---|---|
| Connectors and Cabling: | Simplex LC Connector, Single-mode fiber(SMF) |
| Wavelength(nm): | T 1550nm / R 1310nm |
| Optical Receive Sensitivity: | -23 dBm |
| Optical Link Power Budget: | 15 dB |
| Power Input: | Supply Voltage: 3.3VMax Voltage/Current: 6V/300mA |
| General: | Hot-swappable |
| Data Transfer Rate: | 1.25 Gbps Bi-directional data link |
| Operating Distance: | up to 20km (9/125µm)Fiber channel up to 1.06Gbps |
| Optical Transmission Power: | -8~ -3 dBm |
| Temperature (°C): | Operating: 0°C ~ 70°CStorage: -40 ~ 85°C |
| Humidity (Non-condensing): | 5 ~ 95% |
| Dimensions (W x D x H mm): | 13.7 x 56.5 x 8.95 mm |
| Weight (g): | 20g |
| EMI/EMS: | Class 1 eye safety and comply with EN 60825-1 |
| Brand | LevelOne |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 0.5 kg |
| Warranty |
|---|
