LH13QBRMBGCXXY - SAMSUNG (QBR) SIGNAGE 13" FHD, 500NITS, 10% HAZE, HDMI(1), LAN/WIFI, 16H/7D, 3YR
LH13QBRMBGCXXY - SAMSUNG (QBR) SIGNAGE 13" FHD, 500NITS, 10% HAZE, HDMI(1), LAN/WIFI, 16H/7D, 3YR
Overview
Enhanced communication in a compact display
Samsung's QB13R small display enables personalized and more impactful communication through its compact and versatile design. An all-in-one solution designed for professional use, the QB13R improves the operational efficiency of content, while also ensuring reliable performance for any business use.

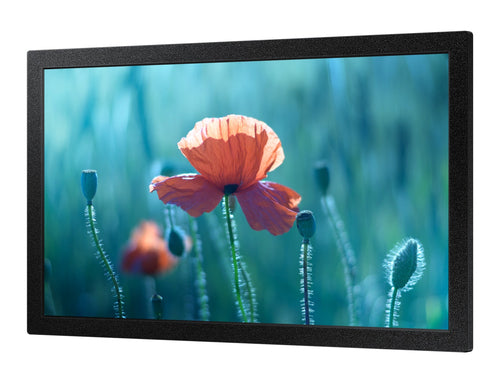

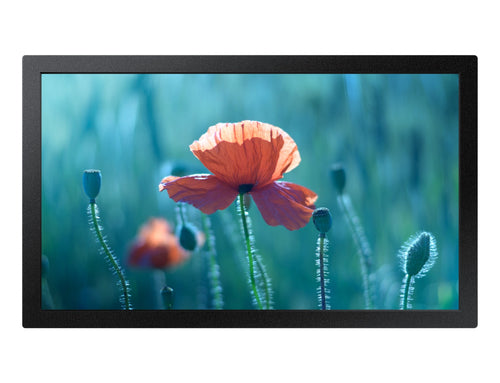

Crisp and visible content
The display supports 1920x1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

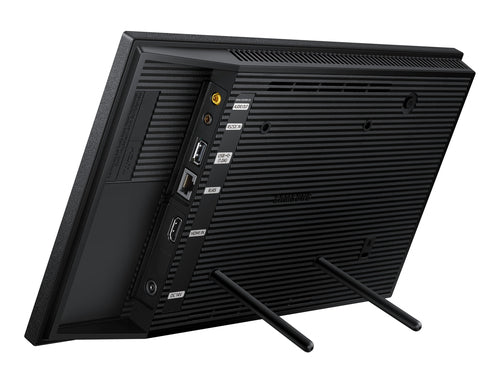

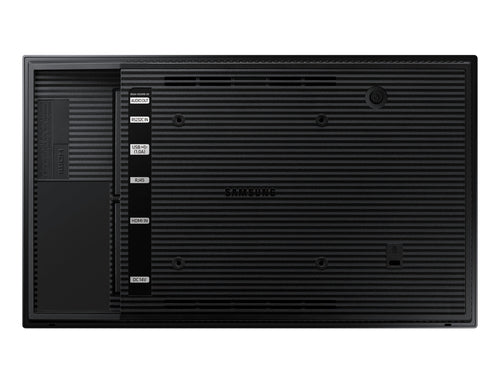

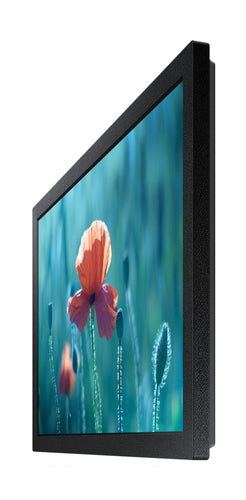

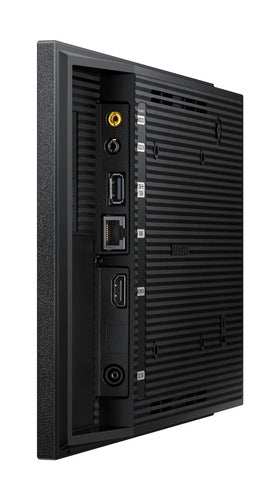

Slim, smart design
The compact and slim design of the QB13R allows for efficient space utilization, even in compact locations. A sleek back design makes the display optimal for both wall mounting or simply standing, while the connectivity, content play and device controls are easy to operate.
Powerful content playback
With an embedded MagicINFO S player, backed by TIZEN, the QB13R allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.
Comprehensive security setup
The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.
Convenient, clean display control
With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn't require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance
The QB13R is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.
- 13" FHD, non-glare display delivering clear content
- Compact and slim design enabling efficient use of space
- Embedded MagicINFO S player to support seamless content playback
Technical Specifications
| Panel type | ADS |
|---|---|
| LED backlighting type | Edge-LED |
| Display diagonal | 13 |
| Display technology | LED |
| Display resolution | 1920 x 1080 |
| Display brightness | 300 |
| HD type | Full HD |
| Touchscreen | Y |
| Native aspect ratio | 16:9 |
| Response time | 30 |
| Contrast ratio (typical) | 600:1 |
| Contrast ratio (dynamic) | 10000:1 |
| Viewing angle, horizontal | 178 |
| Viewing angle, vertical | 178 |
| Pixel pitch | 0.153 x 0.153 |
| Display diagonal (metric) | 33 |
| Horizontal scan range | 30 - 81 |
| Vertical scan range | 48 - 75 |
| Haze rate | 25 |
| Colour gamut | 45 |
| HDMI ports quantity | 1 |
| HDMI input ports quantity | 1 |
| USB port | Y |
| USB ports quantity | 1 |
| RS-232 interface | Y |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 |
| Power consumption (typical) | 13 |
| Power consumption (sleep) | 0.5 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Energy efficiency scale | A+++ to D |
| Width | 322 |
| Depth | 28.2 |
| Height | 193.5 |
| Weight | 900 |
| Package width | 376 |
| Package depth | 248 |
| Package height | 132 |
| Package weight | 1700 |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 80 |
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Annual energy consumption | 19 |
| Energy efficiency class (old) | B |
