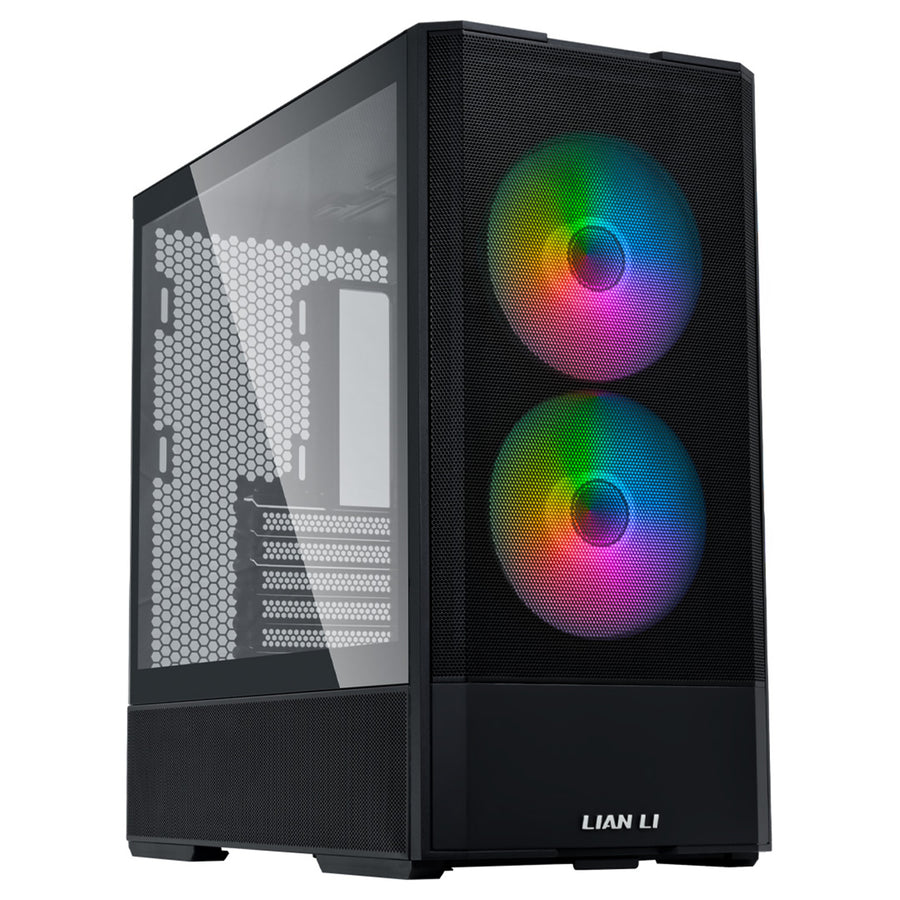

Lian Li Lancool 207 Tempered Glass ATX Mid Tower Gaming Case - Black

LANCOOL 207 - ATX Layout Re-invented

The LANCOOL 207 reimagines the traditional ATX layout, packing powerful compatibility and superior cooling into a sleek, compact M-ATX chassis.

COMPACT POWERHOUSE

Though compact in size, the LANCOOL 207 offers remarkable compatibility, supporting ATX motherboard, a 360mm radiator, ATX PSU, and GPU up to 375mm, all within the sleek 45.5L chassis.

SPACE-SAVING INNOVATIVE LAYOUT

The LANCOOL 207's unique offset motherboard tray provides a space-efficient solution while improving compatibility and airflow.

Wider for Fan Accommodation
The motherboard tray is positioned closer to the right side panel, allowing for 140mm top fans without expanding the case width.

Lower for Radiator Thickness
Lowering the motherboard tray creates additional clearance for thicker top-mounted radiators, significantly boosting cooling efficiency.

The LANCOOL 207 supports standard ATX (max width 244mm) / M-ATX/ ITX motherboards.

EASY ACCESS FRONT-MOUNTED PSU

The PSU is strategically placed at the front, with connector ports facing outward for convenient cable connection. Additionally, a PSU power adaptor extension cable is provided for rear power access.

The LANCOOL 207 offers the PSU mounting with the fan oriented either upward or downward.
Reference as LIAN LI Edge PSU mounting with the fans oriented upward.

Note: The PSU must have mounting holes for installation with the fan facing upward.

SUPERIOR COOLING PERFORMANCE

Besides being designed with comprehensive mesh panels on the top, front, and side bottom, the LANCOOL 207 comes pre-installed with four high-performance fans for superior out-of-box cooling.

The PPLP Lab testing shows the Lancool 207 is in the top-tier of their ranking, which deliver outstanding thermal performance.This earned it the Level-S Chassis Performance award for exceptional thermal management.

PPLP real-world PC test:

Test Platform:
CPU: Intel i9-13900K (Lock 230W)
MB: MSI MPG B760M EDGE TI WIFI
Cooler: PC Cooler RZ620 BK
GPU: ASUS ROG Strix RTX 3080 12G (Max Load 390W TGP)

Test Software:
AIDA64 FPU+3DMARK stress test with 15 minutes

Included Four High Performance Fans

Two thick ARGB performance fans provide excellent cooling and stunning light effects with the infinity mirror at the center.

Size: 140x140x30mm
Speed: 450 ~ 1900 RPM
Airflow: 109.3 CFM
Static Pressure: 3.3 mmH20
Noise: 34.86 dBA

Two 11-blade high airflow fans at the bottom deliver direct airflow to the GPU.

Size: 120x120x25mm
Speed: 500 ~ 1950 RPM
Airflow: 71.1 CFM
Static Pressure: 1.99 mmH20
Noise: 30.81 dBA

360mm Radiator Compatibility

The top of the case supports a 360mm push-pull radiator configuration thanks to the offset motherboard tray design.

Full Fan/ Radiator Support

LARGE ANTI-SAG GPU SUPPORT

The LANCOOL 207 accommodates a GPU up to 375mm long and includes an adjustable anti-sag bracket, ensuring the GPU remains perfectly aligned.

length: 285~315mm

length: 316~345mm

length: 346~375mm

SEAMLESS CONNECTIVITY

The LANCOOL 207's top-mounted I/O panel offers easy access to essential ports.

EFFICIENT CABLE MANAGEMENT

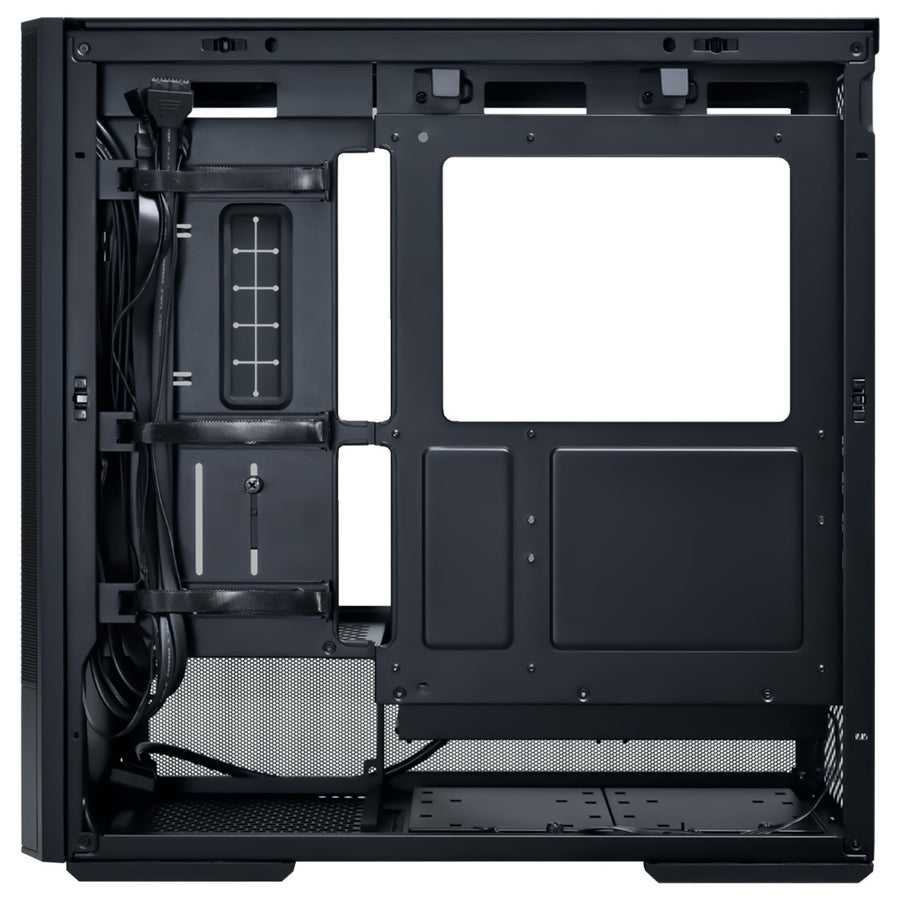

With the innovative layout, the well-organized cable management system is mostly at the front of the 2nd chamber.

1. Routing for EPS cable
2. 3 x Triple Velcro Straps for cable management
3. Grommet for 24-PIN motherboard cable
4. Space for 2 x Hard Drives
