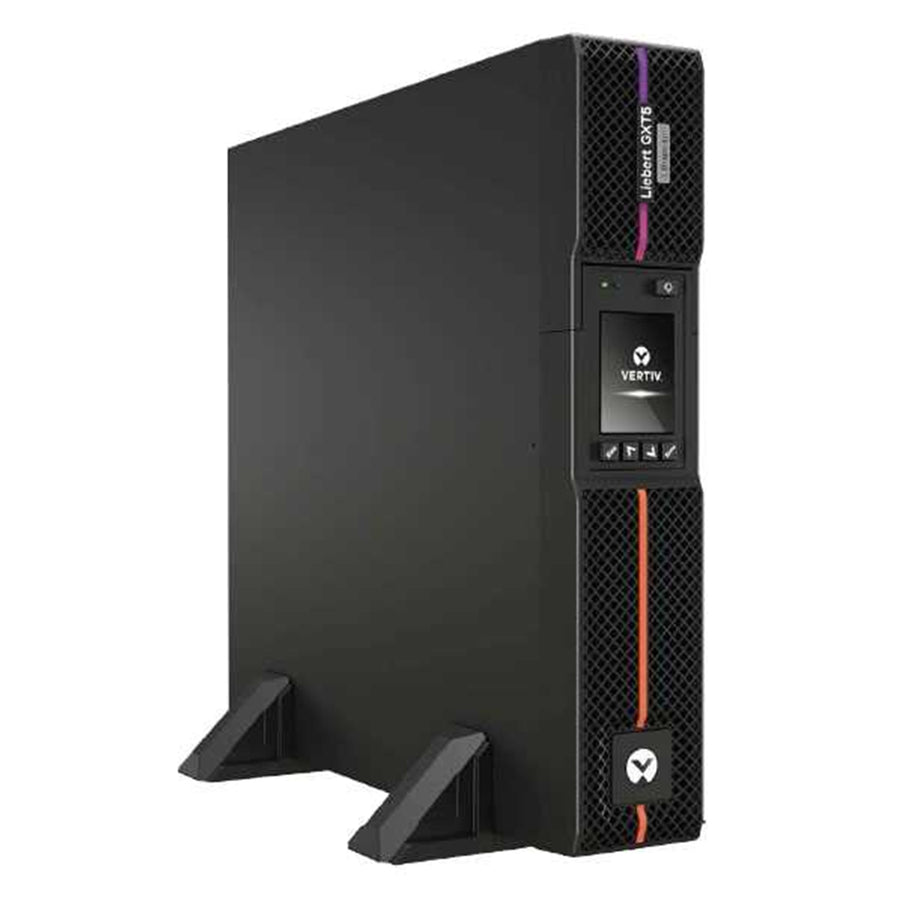

Liebert GXT5 Lith 1500VA/1500W 230V
Features
The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load (varies by model)) to protect critical equipment during an unexpected power loss. They offer better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries. Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.
- Lithium-Ion UPS batteries last up to 3x longer than traditional VRLA batteries
- Offers lowest total cost of ownership (TCO) with fewer or no battery replacements over its lifetime
- Environmentally friendly UPS reduces battery disposal and recycling with lower replacement rates
- The 1.5kVA UPS offers longer runtime and faster recharge time
- Add 1U external battery cabinet units to power the UPS for scalable runtime
Specifications
Technical Specifications
| Product Type | Double Conversion Online UPS |
|---|---|
| Manufacturer Part Number | 01202663 |
| Product Series | GXT5 |
| Application/Usage | IT,Server |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Energy Saving | Efficiency (up to 95%) in online mode Higher efficiency means an optimized energy management and lower heat dissipation, for energy savings and improved reliability |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Battery Life | 10 Year |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 27 Minute |
| Backup/Run Time (Full Load) | 13 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 2 Hour |
| Status Indicators | LCD Display |
| EPO Port | Yes |
| Network Management | Web,SNMP,Modbus RTU |
| Alarm | Output Overload,Low Battery,Battery Replacement |
| Waveform Type | Pure Sine Wave |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 1.5 kVA |
| Sound Emission | 48 dB |
| Maximum Operating Temperature | 40 °C |
| Minimum Storage Temperature | -20 °C |
| Maximum Storage Temperature | -60 °C |
| Weight (Approximate) | 17 kg |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 85 mm |
| Width | 430 mm |
| Depth | 476 mm |
| Brand | VERTIV |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 11.791 kg |
| Warranty |
|---|
