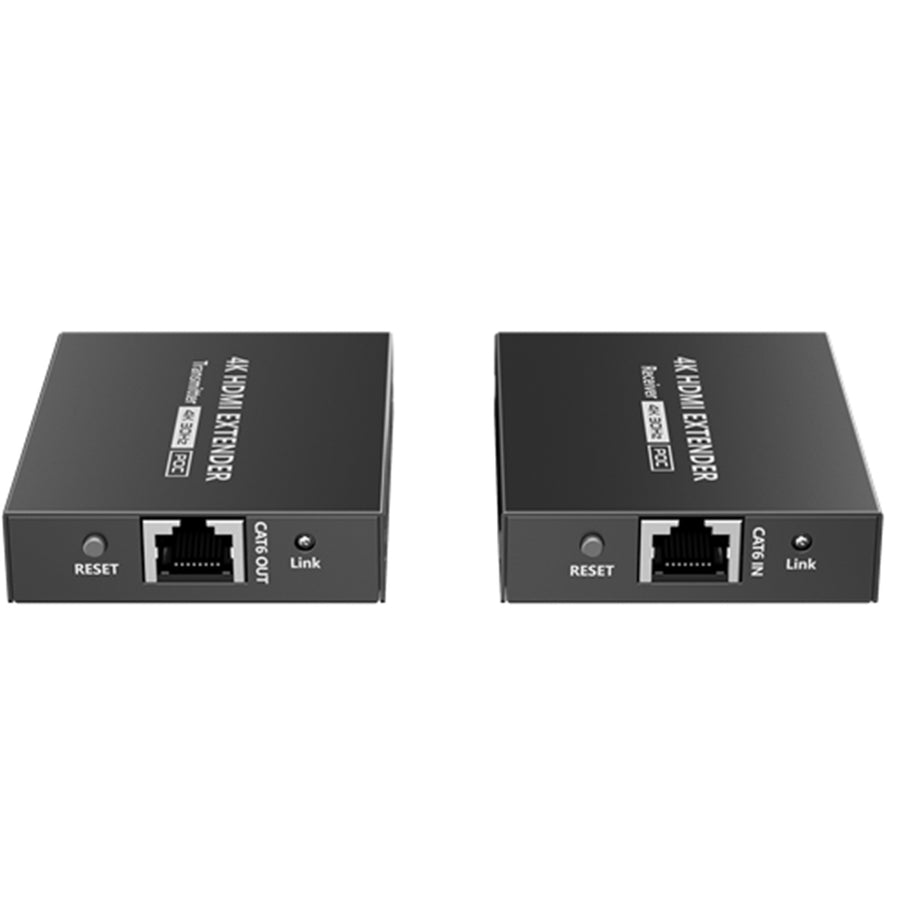

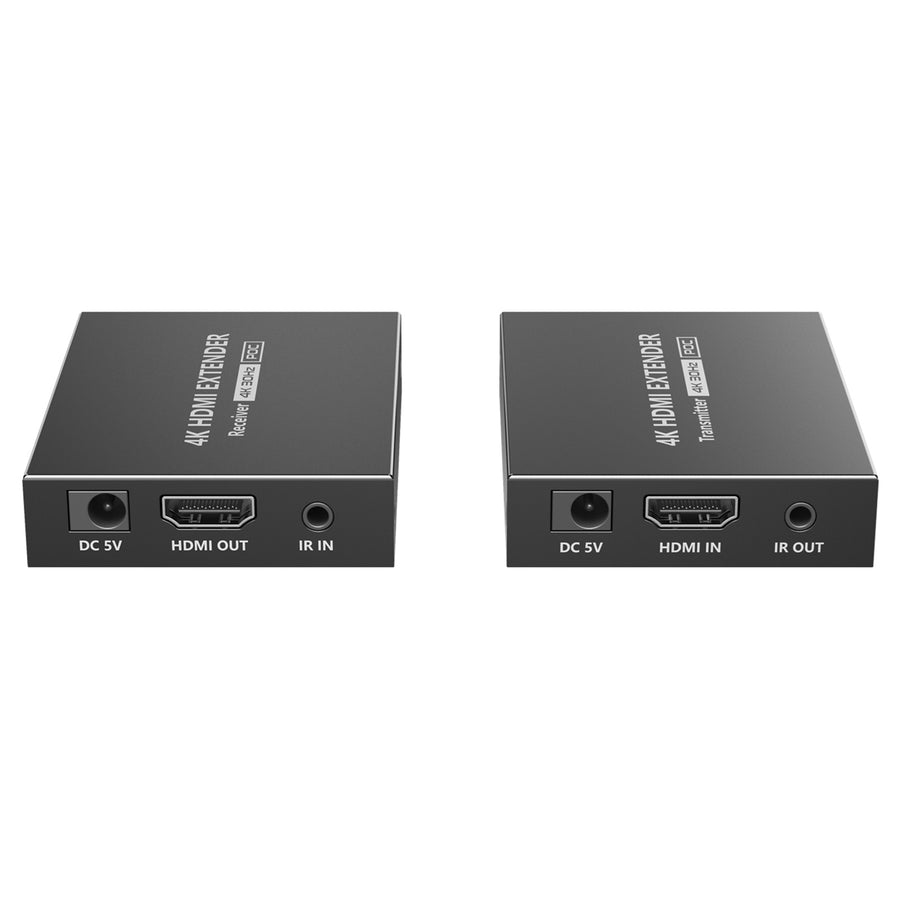

LENKENG LKV372P - HDMI & IR Extender Kit Over Cat6/6A 1080p up to 70m Supports EDID & IR Passback.
Features
LENKENG HDMI & IR Extender Kit Over Cat6/6A. 1080p up to 70m. Supports EDID & IR Passback. Support PoC network cable power supply, only TX power supply is needed. Not Recommended for Cat5/5e
This HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports IR pass-back. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc.
- Zero latency
- Support up to 4K@30Hz resolution
- Support CAT6/6A/7 network cables, 1080p@60Hz transmission distance is up to 70meters, 4K@30Hz transmission distance is up to 40 meters
- Support IR pass-back function (20KHz~60KHz)
- Support HDR10
- Support EDID passthrough
- Support PoC network cable power supply, only TX power supply is needed
Specifications
Technical Specifications
| Voltage/Current | DC 5V/2A |
|---|---|
| Power consumption | TX+RX |
| HDMI resolution | 800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080,480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz,3840x2160@24/25/30Hz |
| Audio formats | DTS, DTS-HD, PCM, LPCM |
| HDR | Support |
| EDID through | Support |
| IR Pass-back | Frequency Range: 20KHz~60KHz |
| Input and output TMDS signal | 0.7~1.2Vp-p (TMDS) |
| Input and output DDC signal | 5Vp-p (TTL) |
| Cat6/6A/7 | 1080p@60Hztransmission 70 metres4K@30Hztransmission 40 metres 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) |
| Electrostatic protection of the whole machine | Implementation of the standard: IEC61000-4-2 |
| Working temperature | -20°C~60°C |
| Storage temperature | -30°C~70°C |
| Humidity (no condensation) | 0%~90% RH |
| Dimension | 75.0(L) x 60.0(W) x 16.5(H) mm |
| Weight | TX:127g |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals > KVM Switches & Cables |
| Weight | 1.0 kg |
| Warranty |
|---|
