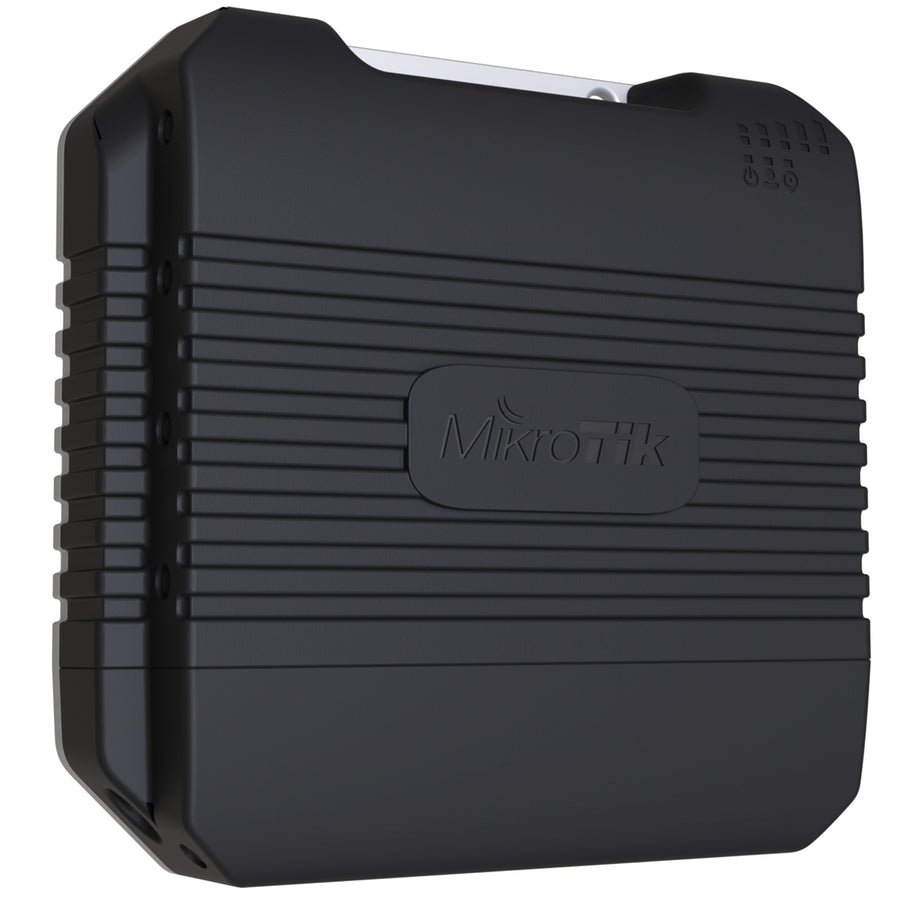

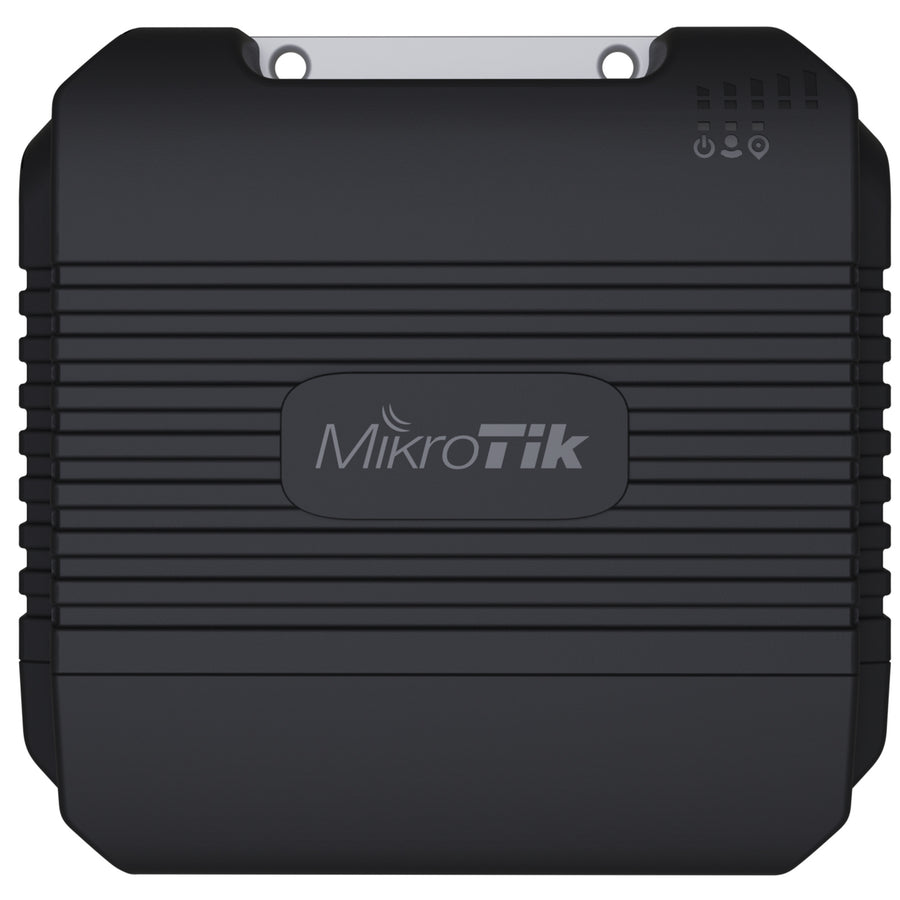

LtAP-2HnD&FG621-EA - MikroTik LtAP-2HnD&FG621-EA Compact Heavy-Duty 4G LTE Band 28, with 2.4GHz Wi-Fi Access Point and built-in GPS
Features
MikroTik LtAP-2HnD&FG621-EA Compact Heavy-Duty 4G LTE Band 28, with 2.4GHz Wi-Fi Access Point and built-in GPS. In a world where connectivity knows no boundaries, and the roughest terrain meets the need for reliable networks, affordable location tracking, and other extensive features, one device stands out: the LtAP LTE6 kit! It is a compact wireless access point with built-in GPS in our most durable weatherproof case ever.
The unit comes with two miniPCIe slots, offering many expansion options. For example, you can install an LTE modem of your choice for LTE backup and 5GHz interface to have a dual concurrent 2.4 GHz / 5GHz AP + LTE.

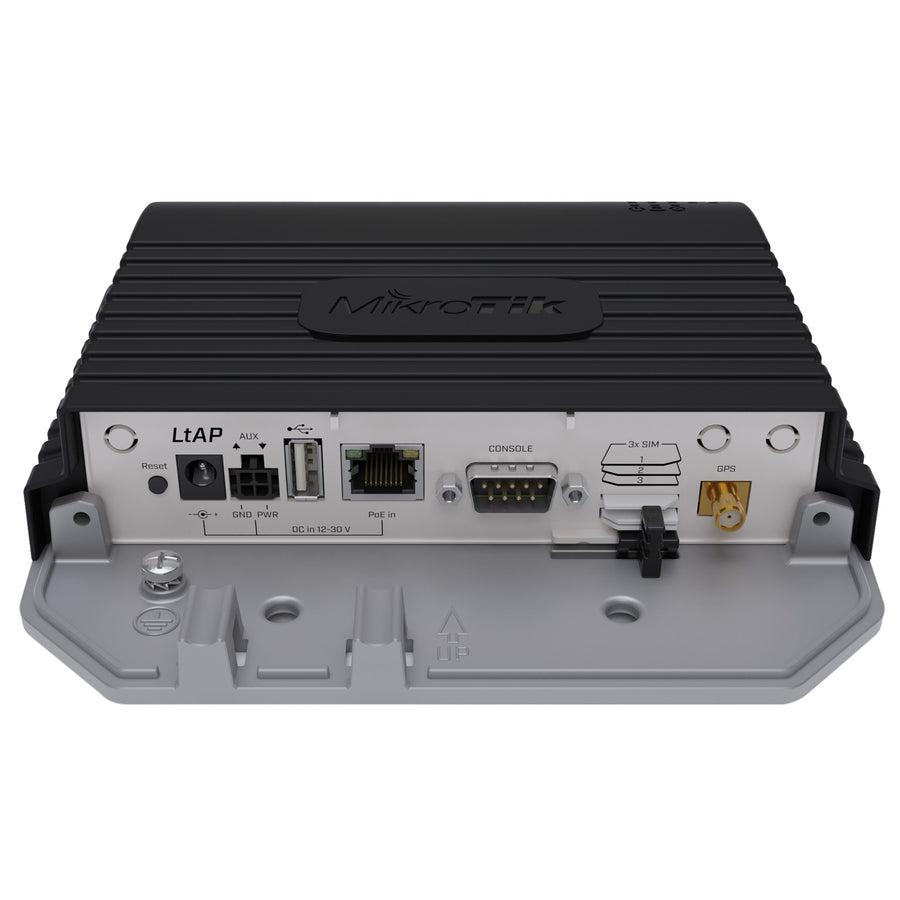

The LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.
The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environments. LtAP can handle any temperature from -40 C?° to +70 C?°. It is a perfect solution for tracking vehicles in real time. MikroTik have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saving your time and money worldwide!
Specifications
Technical Specifications
| Brand | MikroTik |
|---|---|
| MPN | LtAP-2HnD&FG621-EA |
| Architecture | MMIPS |
| CPU | MT7621AT |
| CPU nominal frequency | 880 MHz |
| CPU core count | 2 |
| License level | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 128 MB |
| Storage size | 16 MB (FLASH) |
| Tested ambient temperature | -40°C to 70°C |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE FDD bands | 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5dBi |
| PoE in | Passive PoE |
| DC input Voltage | 12-30 V |
| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
| Max power consumption | 24 W |
| 10/100/1000 Ethernet ports | 1 |
| Number of SIM slots | 3 Modem (Mini SIM) |
| MiniPCI-e slots | 2 |
| Serial port | RS232 |
| Number of USB ports | 1 (Type A) |
| Max USB current | 1A |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| GNSS standards | GPS |
| Certification | CE, E-MARK, EAC, ROHS |
| IP | 54 |
| Brand | MikroTik |
|---|---|
| Product Type | Networking > Wireless Access Points |
| Weight | 2.0 kg |
| Warranty |
|---|
