Mars Antennas

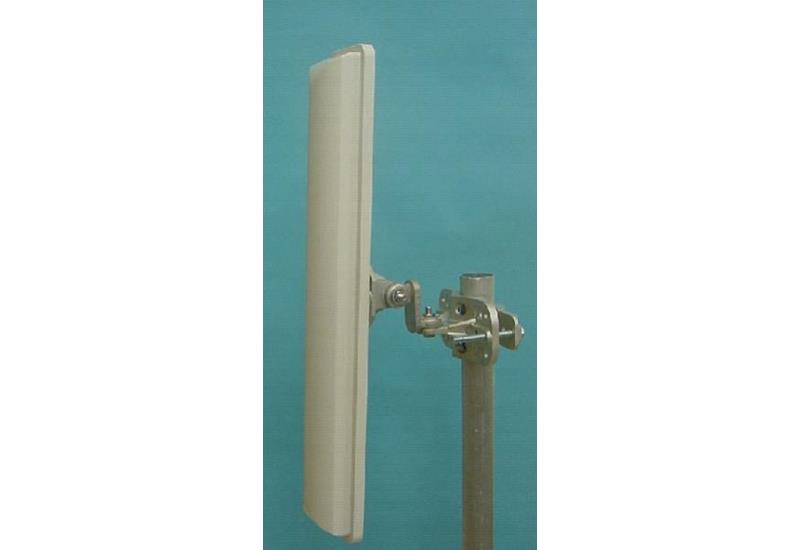

Mars Antennas ANT-142 - MARS 3.3GHz - 3.8GHz 90deg Sector Antenna MA-WD36-16
$163.00
Free shipping over $299
Genuine product
7-day returns
ANT-142
Mars Antennas ANT-142 - MARS 3.3GHz - 3.8GHz 90deg Sector Antenna MA-WD36-16
Description
The MARS MA-WD36-16 90° Base Station Antenna is light-weight with a robust and durable construction. This antenna is designed for licensed applications including WiMAX and WLL.
Features
- Specially designed for WiMAX applications
- Quick and easy installation
- Easy mounting allowing obtaining required down tilt
- Suitable for harsh environment installations
- DC grounded
Specifications
| Details | |
|---|---|
| Manufacturer's Product Code | MA-WD36-16 |
| Frequency Range | 3.3-3.8 GHz |
| Gain | 15.5 dBi |
| Polarisation | Vertical |
| Vertical Beamwidth | 9deg |
| Horizontal Beamwidth | 90deg |
| Connector Type | N-Type Female |
| Dimensions | 573 x 95 x 53 mm |
| Brand | Mars Antennas |
|---|---|
| Product Type | Networking & Wireless |
| Weight | 0.5 kg |
