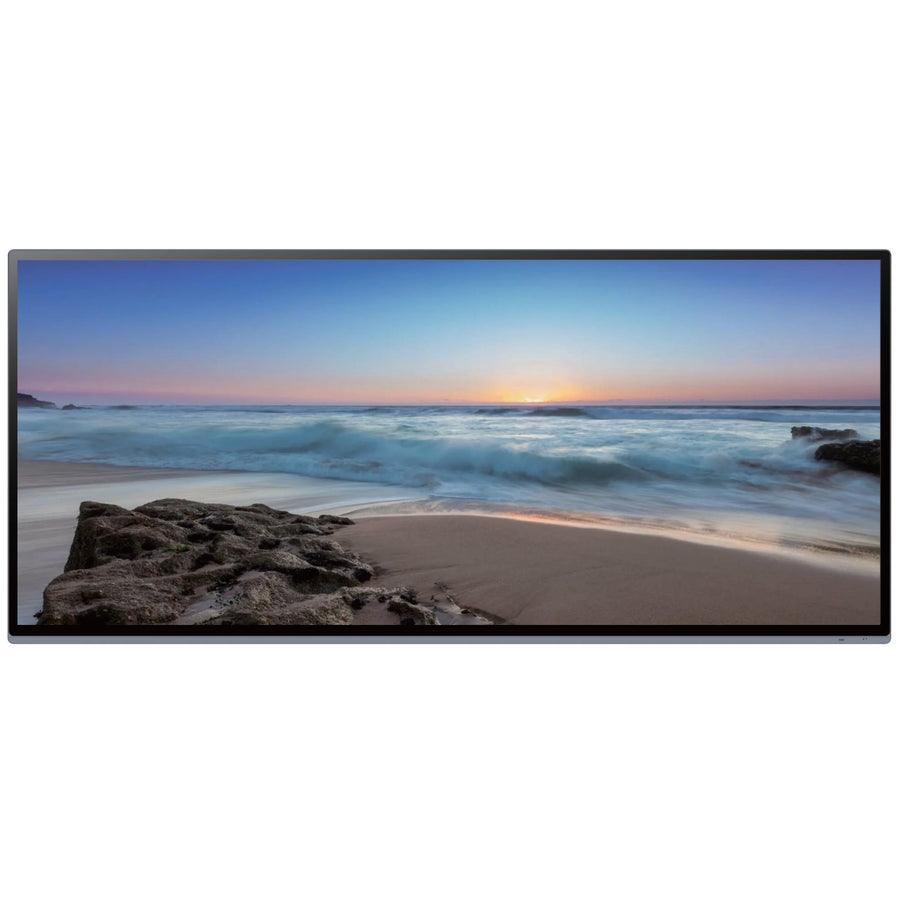

Maxhub CVTE MAXHUB 5K 21:9 Commercial Display UW Series UW105NA Screen size: 105'' 5K Display, 21:9, Anti-Glare, 400 nits brightness Android 13, 8G RAM, 64G ROM Built-in 2×16W+15W Speakers Orientation: Portrait, 7×16 operation hours Power saving: Energ...
Features
ULTRA IMMERSIVE VISION
MAXHUB Commercial Display Ultra-Wide Series
ULTRA-WIDE PANORAMIC VISION
Big views for big ideas. Intentionally evolved 21:9 ratio dimensions for the vision of tomorrow.
BIGGER SPACE FOR BIGGER IMPRESSIONS
Ultra-wide, ultra-unique aspect ratio with 33% more visual canvas than comparable models.
*Only available for screensharing.
MEETING WITHIN THE MEETING
Empowered by the Signature Microsoft Teams Rooms, the MAXHUB UW Series brings us a more immersive hybrid meeting experience.
IDEAL PLATFORM TO PERFORM
This next-generation display is enhanced to be compatible with all the leading industry collaboration software. Invigorate every interchange with smoother, more engaging meetings.
PROFESSIONAL 5K DISPLAY
Keep an eye on all the details with a striking 5K-resolution display.
Carefully engineered to optimize each pixel, 5K clarity illuminates the softest hue and the most delicate detail.
Panoramically wide viewing angle lights up every corner of the room. No blind spots, just pure visibility.
A professional, commercial-grade anti-dust, anti-reflective coating insures long-lasting durability.
TYPE-C VERSATILITY
Interchange ideas, power up productivity and share more content with the multi-functional Type-C port.
SIGNATURE MICROSOFT TEAMS ROOMS
Tailor-made for a more immersive and cohesive Microsoft Teams experience.
HYBRID WORKING
The 21:9 ratio is the ultimate answer to maximizing screen real estate. See your colleagues, share content, brainstorm and communicate all simultaneously.
COMMERCIAL DISPLAY
Get your message across loud and clear. Bigger is better when it comes to leaving a lasting impression.
COMMAND AND CONTROL
Views that reach beyond what the eye can see. Keep your finger on the pulse without missing a visual beat.
COMPLETE REMOTE DEVICE CONTROL
Easy-to-use functionality compatible with major control and automation tools offered by companies such as Crestron, Q-SYS and Extron.
MAXHUB DEVICE MANAGEMENT
MAXHUB Pivot equips a streamlined remote control device management system. Smooth, fuss-free interactions every time.
SET-UP FOR BYOD
This is the ultimate package for collaborative meetings. Simply plug and play with automatic activation of the device's audio, camera, screen, and files. Dual 16W + 15W built-in speakers vitalize content sharing for maximum impact.
WIRELESS SHARING
Instantaneous device-to-screen sharing courtesy of the MAXHUB Share App. Elevate collaboration by enabling up to nine devices to simultaneously share screens. Share more, learn more, do more.
OPS FUNCTIONALITY
Intelligently built-in OPS slots enable effortless switching between Android and Windows operating systems.
Specifications
Technical Specifications
| Screen Size (class) | 105 |
|---|---|
| Diagonal | 105" / 266.7cm |
| Panel Type | VA |
| Haze | 25% (Anti-Glare) |
| Aspect Ratio | 21:9 |
| Native Resolution | 5120*2160 |
| Refresh Rate | 60Hz |
| Brightness (Typ.) | 400 nits |
| Backlight Type | Direct Lit |
| Contrast Ratio | 4000:1 |
| Viewing Angle (H x V) | 178°(H / V) |
| Response Time | 6.5ms |
| Life Time (Min.) | =50,000 hours |
| Operation Hours (Hours / Day) | 16/7 |
| Orientation | Landscape |
| Processor | A76*4+A55*4 |
| Graphic | Mali-G610 MP4 |
| Memory | 8G |
| Storage | 64G |
| Operating System | Android 13.0 |
| UI Resolution | 5K |
| Input | HDMI 2.0 x3 (Max: 3840 x2160 @ 60Hz)HDMI 2.1 x1 (Max: 5120 x2160 @ 60Hz)USB Type-C x1(PD100W)USB Type-A 3.0 x4USB Type-A 2.0 x1RJ45 in x1Display Port x1 (Max: 5120 x2160 @ 60Hz) |
| Output | HDMI out 2.0 x1SPDIF x1 (Optical)Audio out x1 (3.5mini jack)RJ45 out |
| External Control | RS232 x1 / IR Receiver |
| Wi-Fi | Removable Wi-Fi ModuleWi-Fi 6 Support2.4G&5G802.11ac/b/g/n/a/ax |
| OPS Slot | Yes |
| Product Dimension (W x H x D) | 2511 x 1124 x 97mm100.55 x 44.25 x 3.82 inch |
| Package Dimension (W x H x D) | 2668 x 1305 x 280mm105.04 x 51.34 x 11.02 inch |
| Product Weight (Net) | 89.4kg |
| Package Weight (Gross) | 119.5kg |
| VESA Mount (mm) | 1000 x 400 |
| Handle | Yes |
| Motion Sensor | Yes |
| Light Sensor | Yes |
| Operation Temperature | 0°C ~ 40°C |
| Operation Humidity | 10% ~ 90%RH |
| Storage Temperature | -20°C ~ 60°C |
| Storage Humidity | 10% ~ 90%RH |
| Power Supply | 100-240V~50/60Hz |
| Power Consumption (Typical) | 550W |
| Power Consumption (Max) | 665W |
| Speaker Power Output | 2 x 16W + 15W |
| Safety | IEC 62368-1 |
| EMC | Class B |
| ErP | Yes |
| Energy Star | Yes |
| Built-In Media Player | Yes |
| Device Management System | MAXHUB Pivot |
| Screen Share | MAXHUB Share |
| Included in the package | Power Cord, Wi-Fi Module x1,HDMI Cable (2m|6.56feet) x1,Remote Control x1,Wall Mount x1,USB-C Cable (1.8m|6feet) x1 |
| Optional | OPS62AOPS72A |
| Brand | Maxhub CVTE |
|---|---|
| Product Type | TV & Home Theatre > Digital Signage |
| Weight | 118.5 kg |
