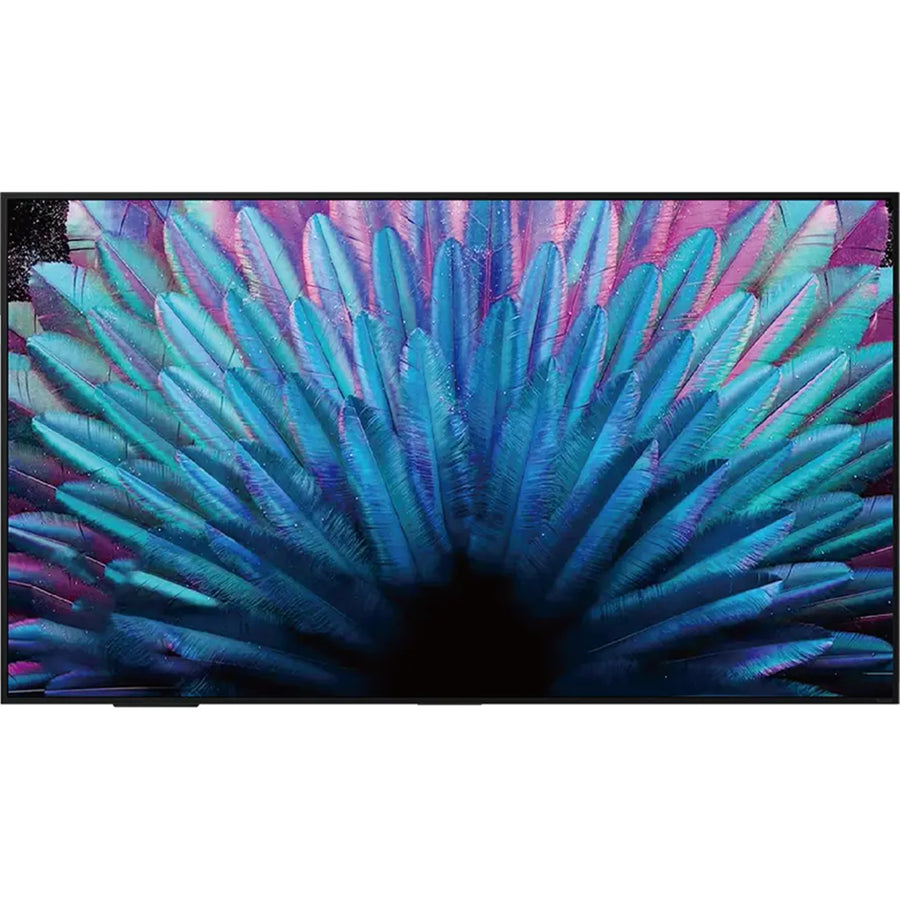

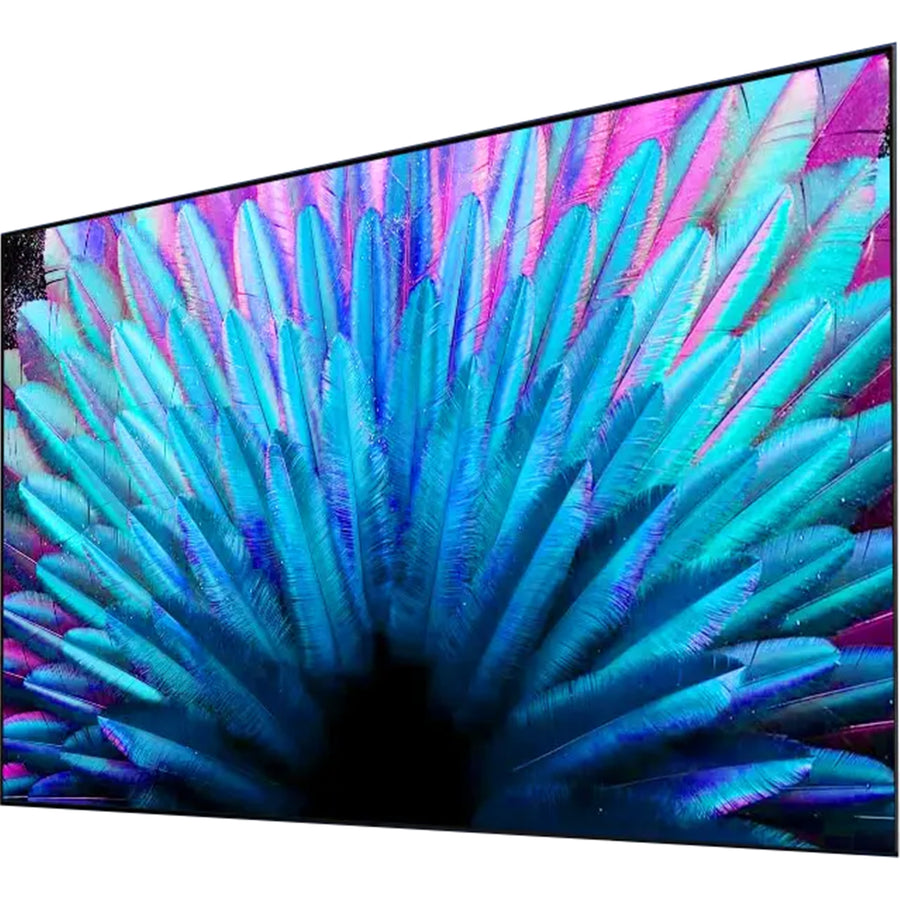

Yealink 1203708 - MeetingDisplay 55
Features

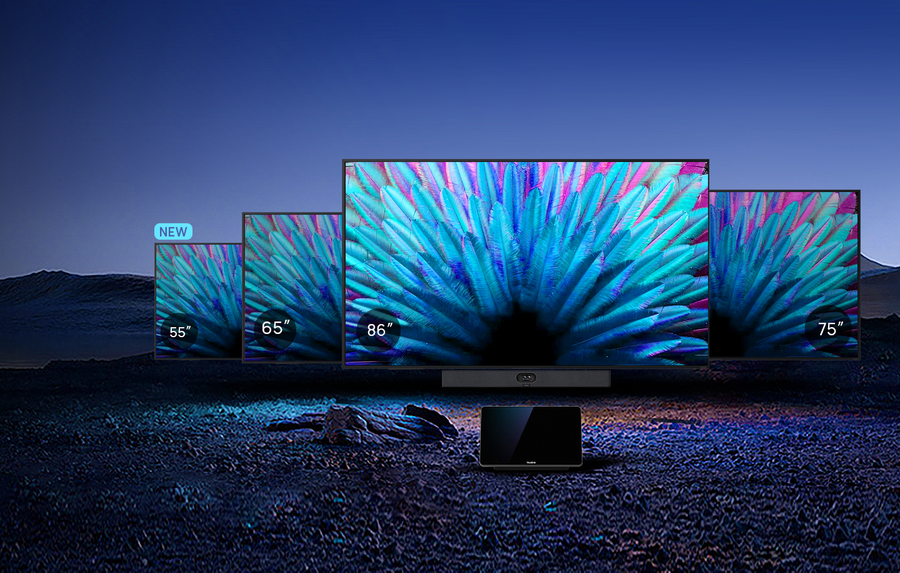

MeetingDisplay - Unified Meeting, Display Now
Yealink's MeetingDisplay for MTR System (MTR Display)
INSTALL LIKE A BREEZE

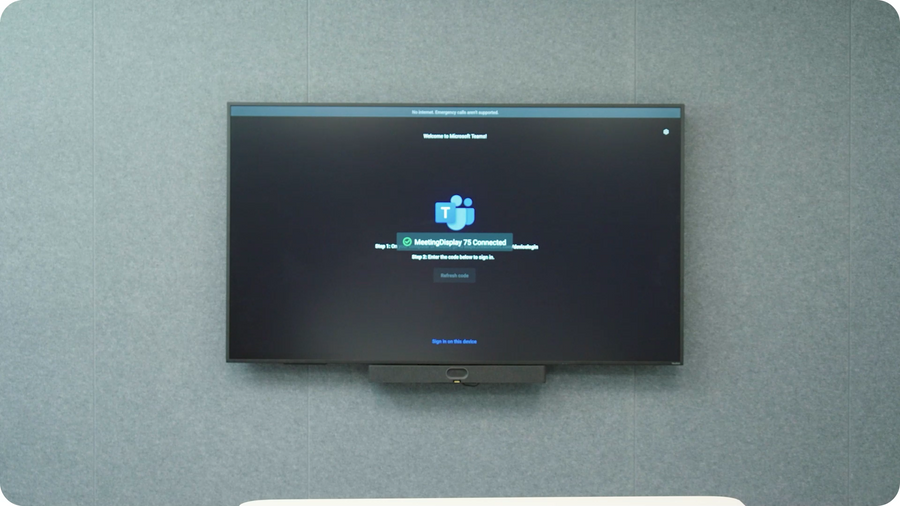

The customized installation structure* makes installation easy, without the trouble of wall drilling. Just screw and hang, the meetingbar and display are ready!
ONE WAY AS ALL COORDINATION

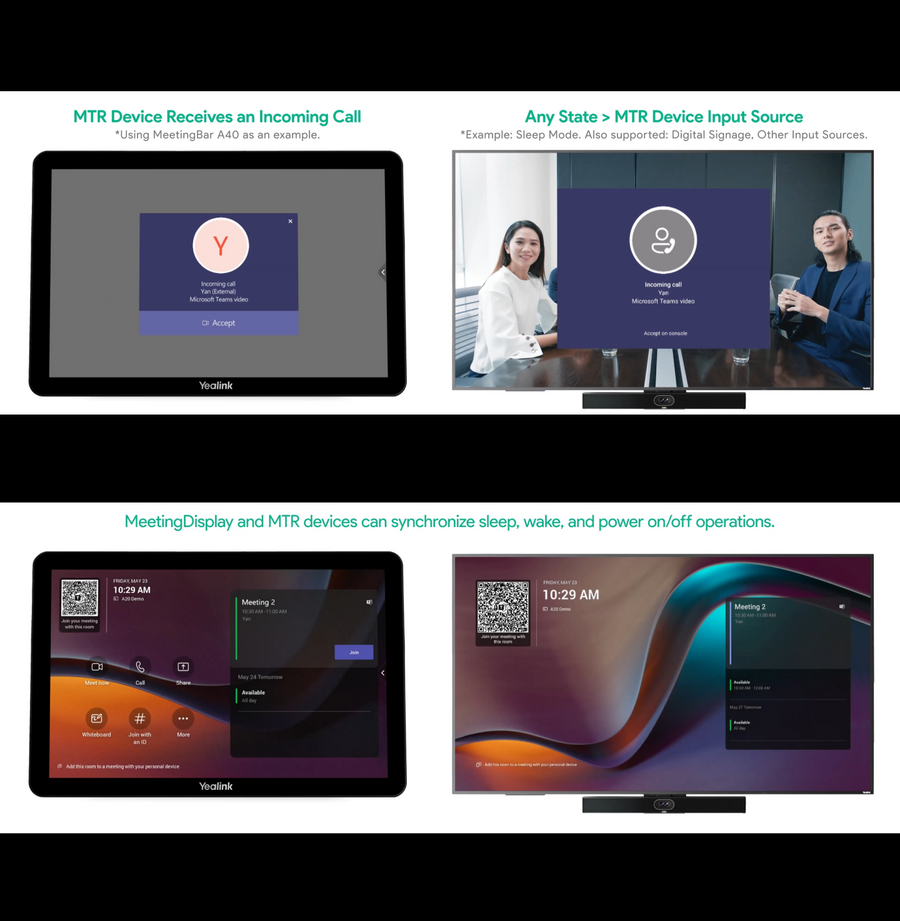

Integrated with Yealink MeetingDisplay, Yealink unified solution supports automatic switching to current input source (regardless of which source you are on, when a Teams call comes in, it will automatically switch to Teams), as well as sleep and wake-up functionality.
Enjoy smooth and seamless meeting device coordination.
ONE TOUCH CONSOLE, GET TO THE HEART OF CONFIGURATION FAST.

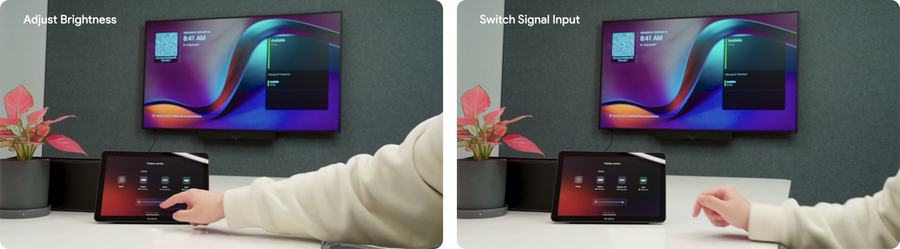

One touch console is enough. Configure MTR devices and MeetingDisplay easily, without TV remote control. Effortlessly switch signal inputs and adjust MeetingDisplay's brightness, contrast, volume, etc.
MANAGEMENT OVER THE AIR

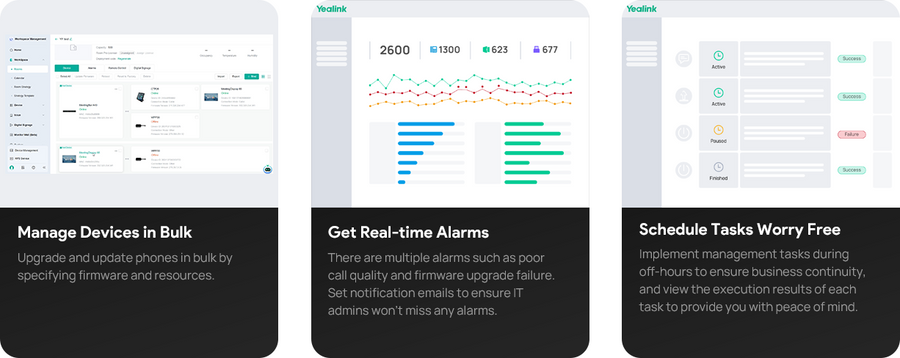

With Yealink Management Cloud Service (YMCS), you can manage both MeetingDisplay and MTR devices from a single platform - no need to switch between systems.
CONNECT. SHARE. ENGAGE.
The MeetingDisplay features a Dual-Ethernet design, with one port capable of providing network connectivity for MTR devices-solving the issue of limited Ethernet availability. It also supports seamless wireless content sharing via presentation pod, enabling effortless local collaboration. Additionally, near-zero latency HDMI-in ensures smooth, lag-free communication.
UPGRADED PERFORMANCE, READY FOR DIGITAL SIGANGE
With integrated 24/7 operation, MeetingDisplay 55 is ideal for digital signage in public and open spaces, extending usage beyond meeting rooms.
Specifications
Technical Specifications
| Screen Size | MeetingDisplay 55: 55 inch |
|---|---|
| Display Type | IPS |
| Surface Treatment | Anti-glare Coating |
| Refresh Rate | 60 Hz |
| Grayscale Response Time | 8ms |
| Color Gamut | 72% NTSC |
| Colour Depth | 1.07G (10-bit) |
| Viewing Angle | 178°(H)/178°(V) |
| Contrast Ratio | 1200: 1 |
| Resolution | 3840 × 2160 |
| Brightness | 500 cd/㎡ |
| Haze | 25% |
| Operation Time： | MeetingDisplay 55: 7*24 h |
| Speaker | 12W × 2 |
| Wired screen sharing | HDMI In |
| Wireless screen sharing | AirPlayMiracastWireless Presentation Pod (unavailable in the United States) |
| Video | HDMI In 2.1 × 3 |
| Audio | 3.5mm Stereo Mini Jack (Output) |
| USB | USB-A 2.0 × 2, USB-B 2.0 × 1 |
| LAN | 2 × RJ45 10/100/1000M network ports |
| Control | RS232 × 1, IP Control（Via LAN） |
| Others | Reset × 1 |
| WiFi | Wi-Fi 62.4G & 5G dual-band, 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.1 |
| IR | Supported |
| Installation Methods | Wall-mounted InstallationFloor-stand Installation |
| Packaging | 1 × MeetingDisplay1 × Cable Pack1 × 3m AC power cable1 × 3m CAT5E network cable1 × Quick Start GuideCable ties1 × Remote Controller (IR)2 × AAA Batteries1 × MCore bracket (Compatible with MCore 4, MCore 4 is sold separately) |
| Operating System | Android 13 |
| Storage | Memory: 4 GFlash: 32 G |
| Power Adapter | 100-240 V ~ 50/60 Hz |
| MeetingDisplay 55 | Max: 138 WTypical: 82 WOff mode: less than 0.5 W |
| Operating Temperature | 0~40°C |
| Storage Temperature | -20~60°C |
| Operating Humidity | 10~95% |
| Bare Device Dimensions (W × D × H) | 1237 × 56 × 717 mm |
| Packaging Dimensions (W × D × H) | 1340 × 185 × 790 mm |
| In-Wall Depth (with MD-WallMount) | 94 mm |
| Net Weight | 15.6 kg (34.39 lbs) |
| Gross Weight | 21.6 kg (47.62 lbs) |
| VESA Hole Specs | 400 × 400 mm |
| VESA Mount Screw | M6 |
| Bezel Width | 11.9/11.9/11.9/12.5 (L/R/U/D) |
| Brand | Yealink |
|---|---|
| Product Type | TV & Home Theatre > Digital Signage |
| Weight | 9.796 kg |
| Warranty |
|---|
