MG-32040 - Magewell USB Capture HDMI Plus

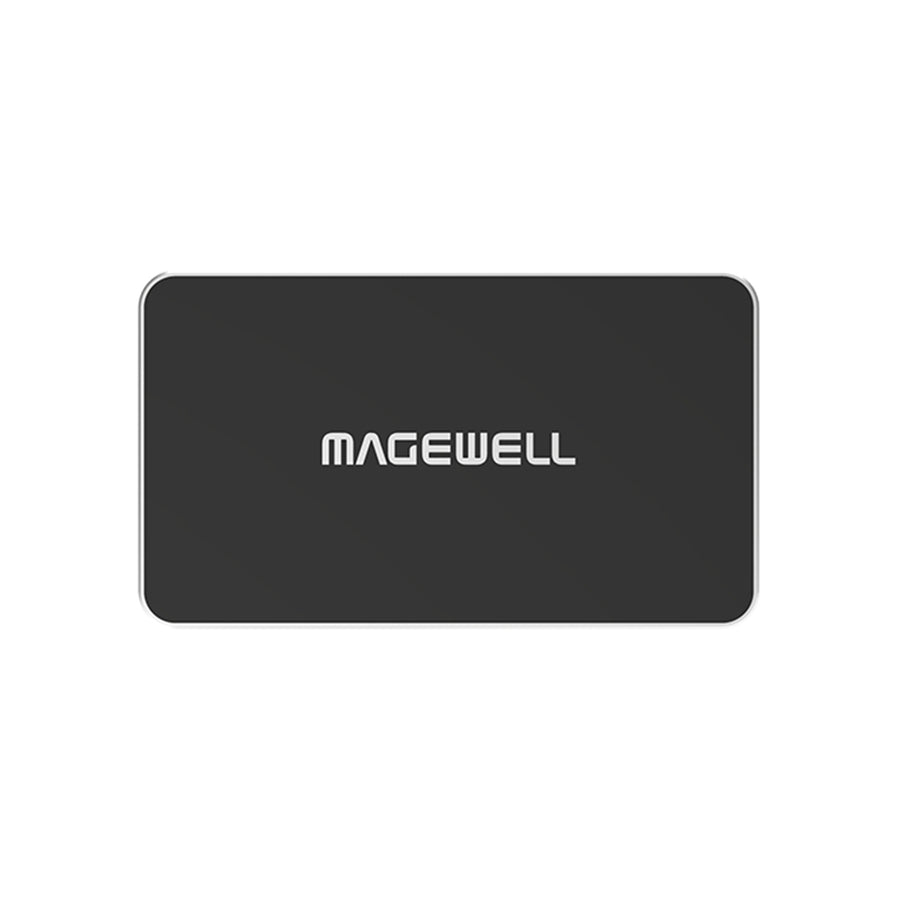

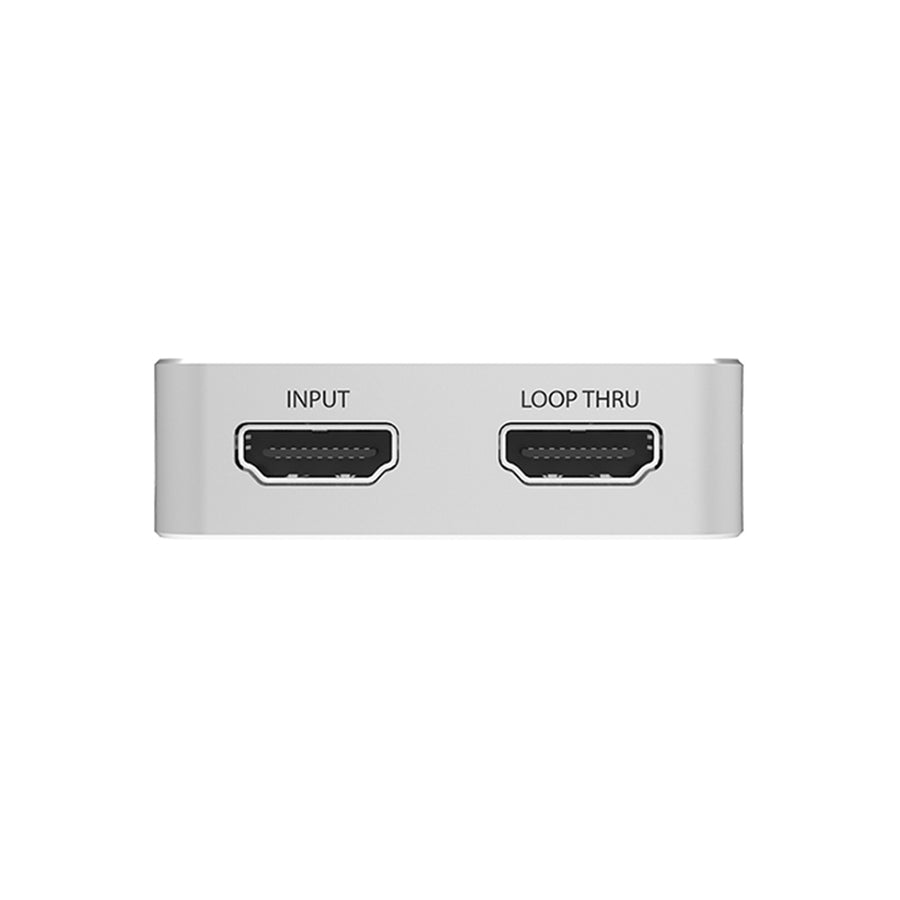

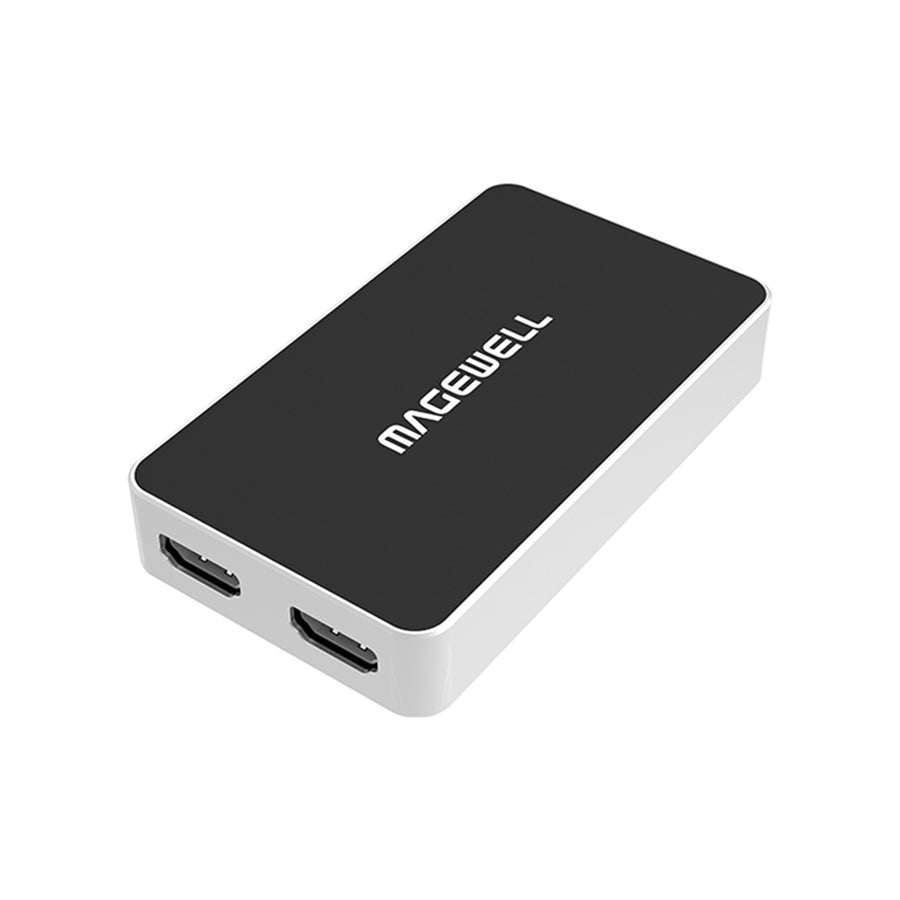

The Magewell USB Capture HDMI Plus is a compact single-channel HDMI video/audio capture device with a built-in scaler. It allows you to capture from devices such as game consoles in up to DCI 4K resolution, and it automatically upscales/downscales the signal to 2K for recording or streaming. It also offers a loop-through HDMI port for local monitoring.

The USB Capture HDMI Plus is compatible with Windows, Mac, and Linux. It works plug-and-play and can be operated 24 hours a day, 7 days a week.

HDMI Features

- 297 MHz HDMI receiver
- Support for up to 4096 x 2160 4:4:4/4:2:2 input at 30 fps or 4:2:0 at 60 fps input signals
- For 4:2:0 input signals, the horizontal and vertical resolution are reduced to 1/2 for capturing
- For 4:4:4/4:2:2 input at more than 170 MHz, the horizontal resolution is reduced to 1/2 for capturing
- Adaptive HDMI equalizer support for cables lengths up to 98 ft
- Customized EDID support
- Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
- Full colorimetry support
- Support for 2 channel ISC60958 audio streams
- Support for extraction of audio formation information and channel status data, video timing information, 3D format information
- Support for Side-by-Side Half, Top-and-Bottom, and Frame Packing 3D modes

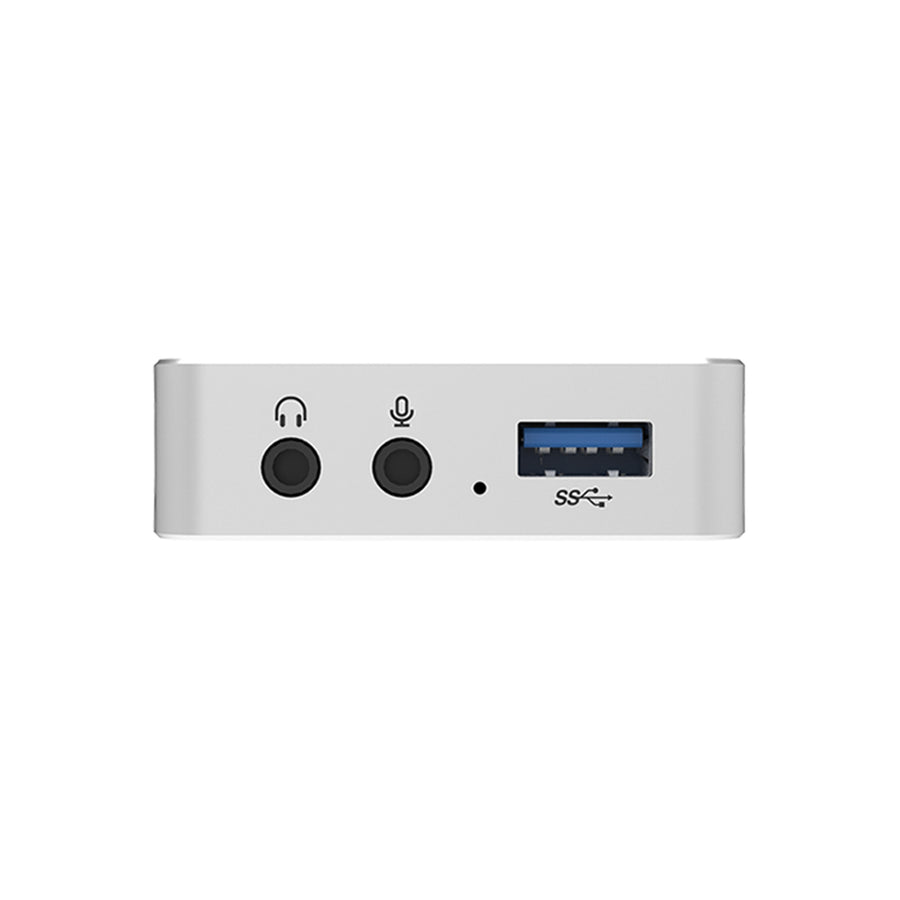

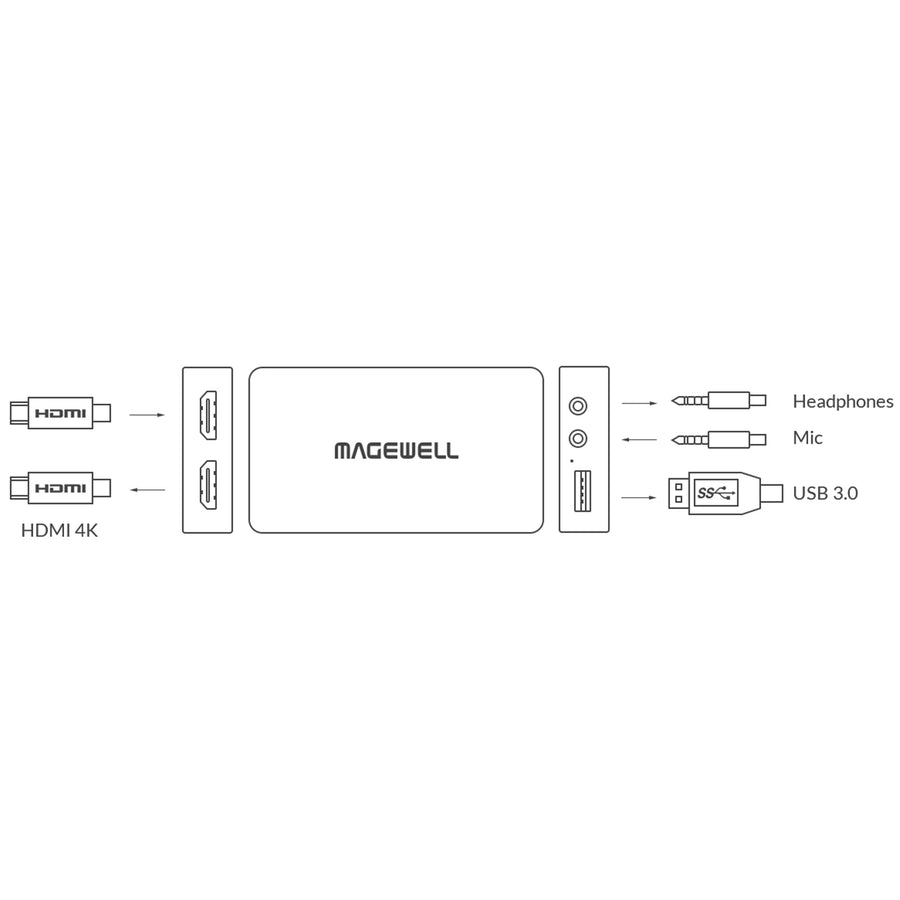

Analog Audio Features

- Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo jack
- Capture of analog audio via 3.5mm microphone interface
- Integrate the functions of a USB audio card
- Playback audio via 3.5mm headphones interface
- Support for recording the playback audio of the computer

Video Processing Features

- Video processing pipelines with 160 megapixels processing bandwidth
- Video cropping
- Video scaling
- Video deinterlacing (Weave, Blend Top & Bottom Field, Top Field Only, Bottom Field Only)
- Auto or manual selection of input and output aspect ratios
- Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
- Auto or manual selection of input color format and quantization range
- Auto or manual selection of output color format, quantization range, and saturation range
- Support for RGB, YCbCr 601, YCbCr 709, and YCbCr 2020 color formats
- Support for Limited or Full quantization range
- Support for Limited, Full, and "Extended Gamut" saturation range
- Video frame rate conversion
- Vertical flip and mirror
