MikroTik RbcAPGi-5acD2nD - Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output) and 802.11ac support

RbcAPGi-5acD2nD

MikroTik RbcAPGi-5acD2nD - Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output) and 802.11ac support

MikroTik cAP ac Dual Band 2.4GHz and 5GHz 802.11ac Wireless Access Point.

The MikroTik cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz and 5 GHz in 802.11ac and legacy standards, and will provide coverage in 360 degrees around it.

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output (up to 57V) on the second port.

The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with the push of a button - the customizable mode button in the device center will turn off all lights and sounds at it’s default configuration, but can be reconfigured to launch any RouterOS script.

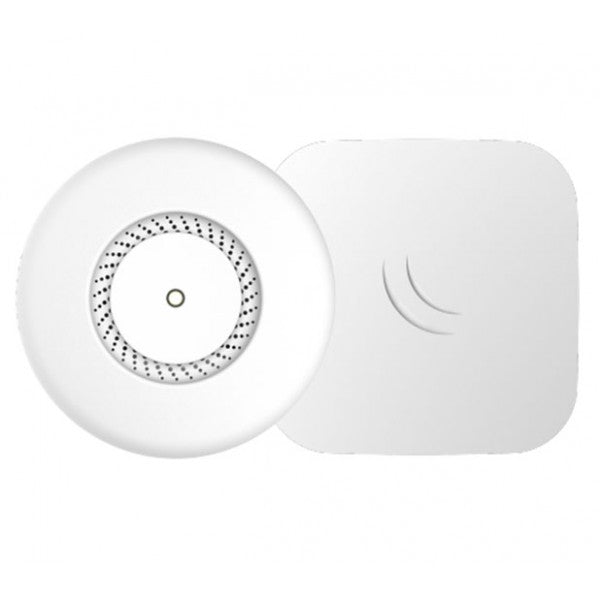

The device comes bundled with two enclosures, so you can choose the design you like best.

Details
Product code	RBcAPGi-5acD2nD
CPU	4 cores, IPQ-4018
CPU nominal frequency	716 MHz
Memory	128 MB
Storage type	Flash
Storage size	16 MB
10/100/1000 Ethernet ports	2
Wireless	2.4 GHz and 5 GHz
Protocols	802.11b/g/n/ac
Number of chains	2
Antenna gain	2.4 GHz - 2 dBi, 5 GHz - 2.5 dBi
Power options	PoE-in 802.3af/at, PoE-out (Passive, Ethernet port 2), 17-57 V
Consumption	13 W
Dimensions	Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
Operating temperature	-40°C .. +50°C tested
LEDs	7x LEDs (1x user LED)
License	level 4
Operating system	RouterOS
