MikroTik RBOMNITIKPG-5HACD - Outdoor 802.11ac WiFi Router 5GigE 802.3at/af PoE input/output
MikroTik RBOMNITIKPG-5HACD - Outdoor 802.11ac WiFi Router 5GigE 802.3at/af PoE input/output
Features
MikroTik Outdoor 802.11ac WiFi Router - (RBOMNITIKPG-5HACD)

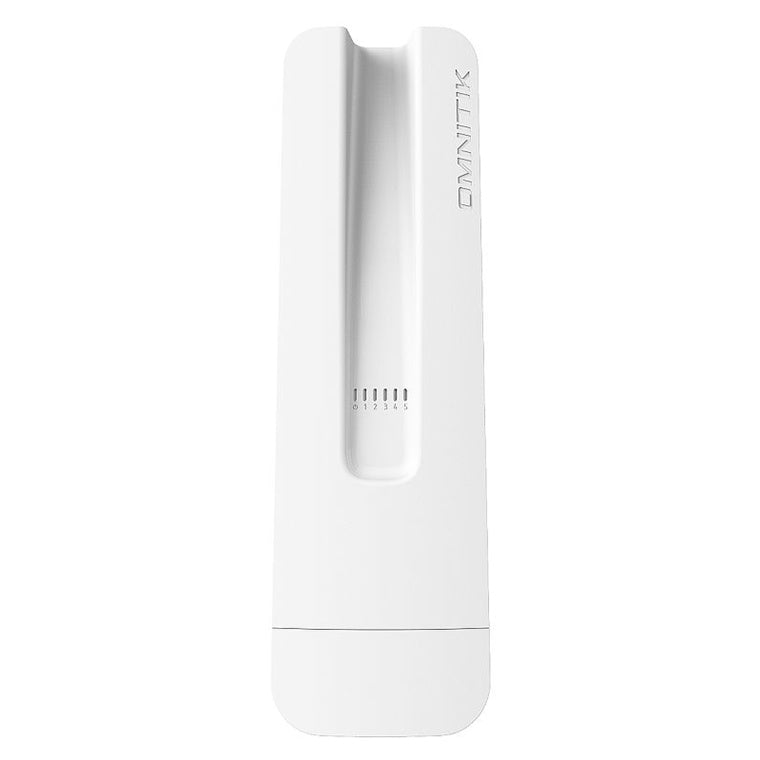

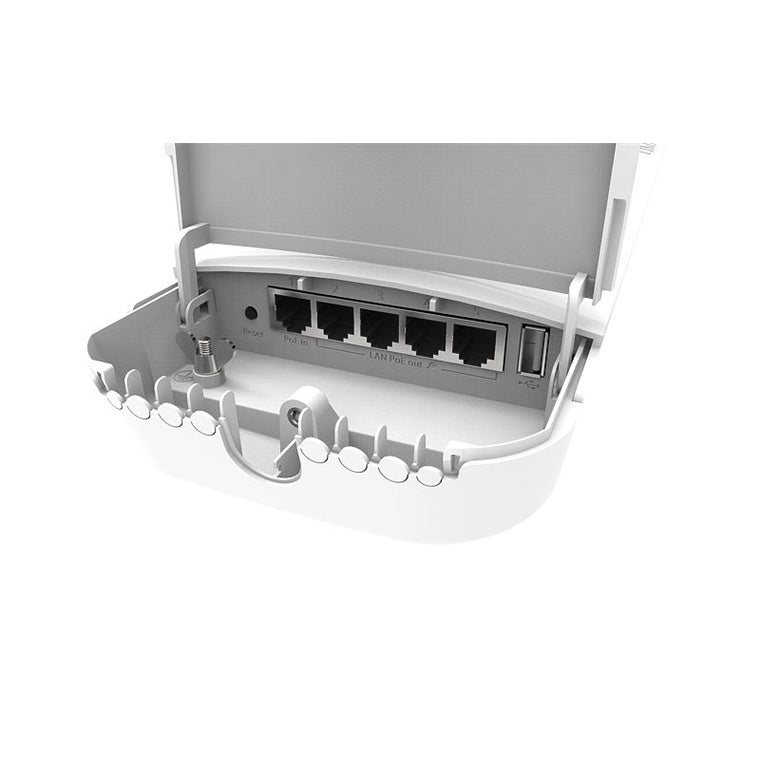

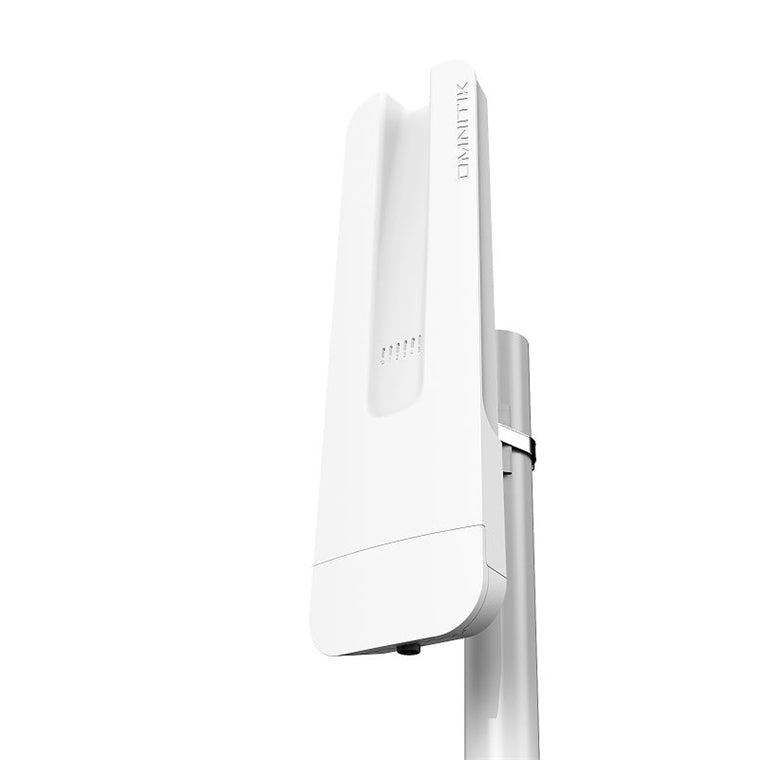

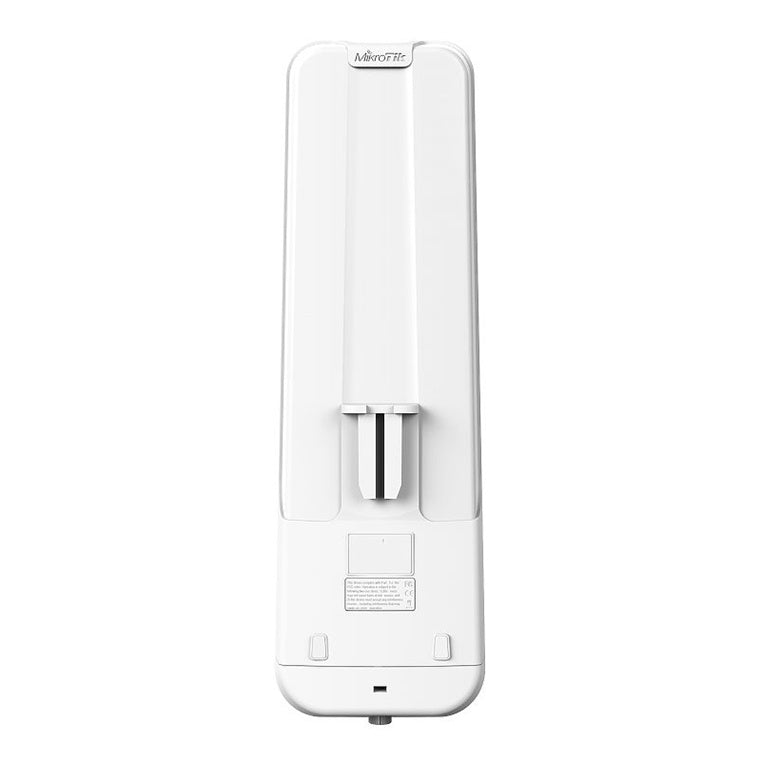

OmniTIK 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It's equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power af/at mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
Specifications
Technical Specifications
| Product code | RBOmniTikPG-5HacD |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 416 x 129 x 58 mm |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| PoE in | Passive PoE |
| PoE out | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max out per port output (input > 30 V) | 450 mA |
| Max out per port output (input < 30 V) | 1 A |
| Max total out (A) | 2 A |
| Max power consumption | 66 W |
| Max power consumption without attachments | 18 W |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 7.5 |
| Wireless 5 GHz chip model | QCA9892 |
| 10/100/1000 Ethernet ports | 5 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
