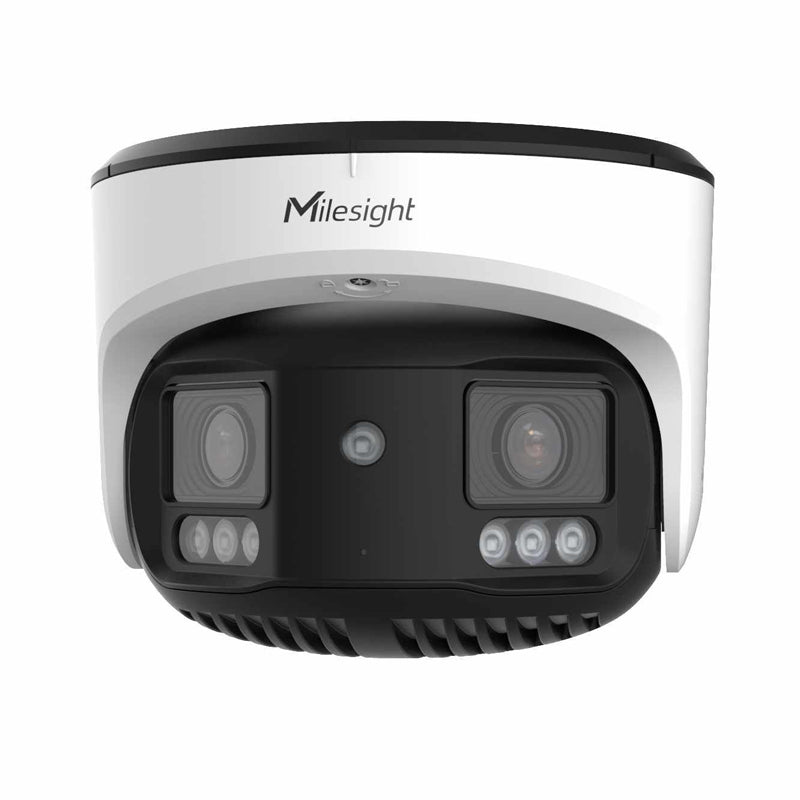

Milesight 4K NDAA AI TrueColor Dual-sensor 180° Panoramic Network Camera- MS-C8477-HPG1

MS-C8477-HPG1

Milesight 4K NDAA AI TrueColor Dual-sensor 180° Panoramic Network Camera- MS-C8477-HPG1

Milesight MS-C8477-HPG1 AI Dual sensor180deg NDAA 4K Panoramic Network IP Camera. One camera seamlessly replaces two, offering the same expansive monitoring area while drastically reducing costs. Say goodbye to the expenses of extra cameras, brackets, and VMS licenses. Moreover, fewer cameras mean a simplified installation process, slashing labor and time costs associated with wiring and setup.

Get the whole picture with Milesight Dual-sensor 180°panoramic camera! Offering a big 180° panoramic image, it provides a comprehensive monitoring experience, tracking events seamlessly and faithfully reconstructing scenes of AI-triggered suspicious activity for unparalleled surveillance precision. Embark on the future of surveillance with Milesight's pioneering FusionXpert technology. Seamlessly stitching images from two sensors, it delivers a true-to-life picture with no color or brightness discrepancies, and zero distortion. Experience a seamlessly stitched image that appears as if it was always one cohesive whole.

Compared to monitoring with multiple cameras, using just one dual-sensor panoramic camera consolidates multiple event alerts into one, and also avoids the switching between video streams to view different live lives, greatly enhancing the user experience. Moreover, with its elongated 180° live view shape, customizable layouts are essential. We provide options for freely configurable layouts to accommodate various surveillance needs.

Experience the power of Dual AI Technology with our camera. With AI ISP, AI automatically distinguishes image noise from details, subtracting noise and enhancing details to deliver high-definition, low-noise images, especially effective in low-light conditions, then AI further conducts VCA analysis, offering rich algorithms based on human and vehicle detection for comprehensive surveillance insights.

Details
Product Code	MS-C8477-HPG1
Product Name	4K NDAA AI TrueColor Dual-sensor 180° Panoramic Network Camera
Min. Illumination	Dual 1/1.8″ Progressive Scan CMOS
WDR	140dB Super WDR
Lens	[email protected]
Mount	M12
Field of View	H180°/V58°
Shutter Time	1/100000s∼1s
DORI Distance	Detect: 62.7m Observe: 24.7m Recognize: 12.3m Identify: 6.2m
Light Type	4 x IR Lights, 2 x White Lights
Light Distance	Up to 30m (IR Light), Up to 25m (White Light)
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Max. Image Resolution	5120x1520
Primary Stream	60Hz: 30fps@(5120x1520), 50Hz: 25fps@(5120x1520)
Secondary Stream	60Hz: 30fps@(1280x380, 960x288, 736x224, 640×190)50Hz: 25fps@(1280x380, 960x288, 736x224, 640×190)
Tertiary Stream	60Hz: 30fps@(1920x576), 50Hz: 25fps@(1920x576)
ePTZ Stream	60Hz: 30fps@(1920x1080), 50Hz: 25fps@(1920x1080)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 8 Mask Areas
ROI	Up to 8 Areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Image Enhancement	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, AGC, Anti-flicker, Image Rotation, Deblur, etc.
Ethernet	1*RJ45 10M/ 100M Ethernet Port
Built-in Microphone	Support
Audio Interface	1*Audio Out Interface
Alarm I/O	1/1
Network Storage	NAS(Support NFS, SMB/CIFS)
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS,DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Video Analysis	VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed
Object Counting & Report	Count the number of objects crossing the line, optionally human and vehicle,Support regional people counting for up to 4 detection areas
Heat Map	The built-in statistical behavior analysis enables you to identify the busiest areas within the environment
Basic Event	Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc.
Exception	Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark,etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Storage	Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP Support	Yes, Voice & Video-over-IP
System Compatibility	ONVIF Profile G & M & S & T, API
Working Temperature	-40℃~60℃
Working Humidity	0~95%(Non-condensing)
Power Supply	PoE (802.3at) / DC 12V / 2A±20%
Power Consumption	Min.: 4.2W(DC 12V), 5W(PoE) Max.(Night Mode+H265+Full Frame+VCA on+Primary/Secondary/Tertiary Stream on+IR on+White Light on): 12.7W(DC 12V), 15W(PoE)
Weight	1.5Kg
Dimensions	160mmx160mmX128mm
Warranty	3 Years
EMC	CE-EMC (EN 55032, EN 55035, EN61000), FCC (PART 15B)
Safety	CE-LVD (EN IEC 62368-1)
Environment	CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
Protection	IP67, IK10
